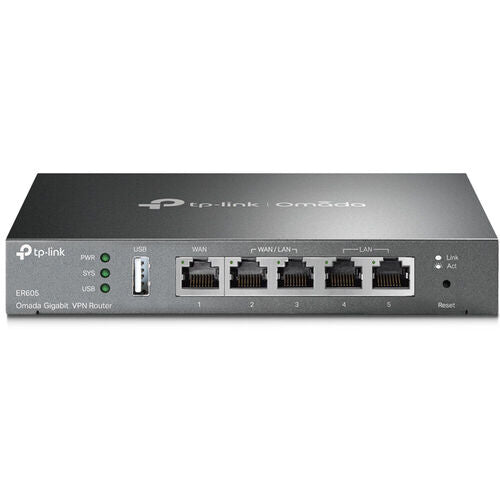

TP-Link ER605 5-Port Omada Multi-WAN Wired Gigabit VPN Router
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
Secure your business network with the ER605 V2 Omada Gigabit VPN Router from TP-Link. Designed for high flexibility, this VPN router features five Gigabit Ethernet ports, two of which can be freely switched between WAN and LAN modes and work alongside the dedicated WAN and two LAN ports to manage multiple internet connections through one device. With the multi-WAN Load Balancing function, data streams are distributed according to the bandwidth proportion of every connected WAN port to optimize multi-line broadband utilization. A mobile 4G/3G broadband modem may be connected to the router through the USB 2.0 port as a backup WAN connection. The ER605 V2 also provides comprehensive security coverage with IPSec, PPTP, and L2TP VPN support over the IPSec/SSL protocols in addition to VLAN support and advanced firewall policies. The IPsec VPN has a maximum throughput of 248.04 Mb/s with the ESP-SHA2-AES256 authentication and encryption algorithm. Additionally, the device can handle up to 150,000 concurrent sessions. Use the Omada app alongside a separately purchased controller to configure your ER605 V2 VPN router and other compatible network devices from almost anywhere, at any time. The ER605 V2 VPN router features five Gigabit Ethernet ports comprised of two fixed LAN, one dedicated WAN, and two WAN/LAN ports. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port, raising the utilization rate of multi-line broadband. Integrating your gateway into the Omada Software Defined Networking (SDN) platform allows you to manage your entire network from different sites from anywhere, anytime via the web interface or Omada app. An Omada hardware, software, or cloud-based controller is required. Administrators can moderate users' online behavior and specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests
| Model Number | ER605 |
| Product Name | TP-Link ER605 5-Port Omada Multi-WAN Wired Gigabit VPN Router |
| Product Type | VPN Router |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering, URL Filtering, Web Security |
| ARP Inspection | Sending GARP Packets, ARP Scanning, IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN |
| Interface | 1 Gigabit WAN port, 2 Gigabit LAN/WAN ports, 2 Gigabit LAN ports, 1 USB2.0 (supports USB LTE dongle) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m), 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m), 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | External 12V/1A DC Adapter |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR |
| LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
| Dimensions | 6.2 x 4.0 x 1.0 in (158 x 101 x 25mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| Max Power Consumption | 7.94 W |
| DPI Throughput | TCP: 905 Mbps, UDP: 788 Mbps |
| WireGuard VPN Throughput | 123.4 Mbps |
| Concurrent Sessions | 150000 |
| New Sessions/Second | 2600 |
| NAT (Static IP) | Upload: 945.77 Mbps, Download: 938.79 Mbps, Bi-Directional: 1808.29 Mbps |
| NAT (DHCP) | Upload: 945.54 Mbps, Download: 945.66 Mbps, Bi-Directional: 1802.77 Mbps |
| NAT (PPPoE) | Upload: 939.71 Mbps, Download: 939.43 Mbps, Bi-Directional: 1788.54 Mbps |
| NAT (L2TP) | Upload: 815.55 Mbps, Download: 835.59 Mbps, Bi-Directional: 903.13 Mbps |
| NAT (PPTP) | Upload: 813.23 Mbps, Download: 850.91 Mbps, Bi-Directional: 894.41 Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 259.78 Mbps, ESP-SHA256-AES256: 260.81 Mbps, ESP-SHA384-AES256: 37.65 Mbps, ESP-SHA512-AES256: 38.32 Mbps |
| OpenVPN | OpenVPN Server, OpenVPN Client (10), 16 OpenVPN Tunnels, "Certificate + Account" Mode, Full Mode |
| L2TP VPN Throughput | Unencrypted: 640.99 Mbps, Encrypted: 77.31 Mbps |
| PPTP VPN Throughput | Unencrypted: 759.55 Mbps, Encrypted: 75.80 Mbps |
| 66 Byte Packet Rate | Upload/Download: 954.50 Mbps, Bi-Directional: 1130.00 Mbps |
| 1,518 Byte Packet Rate | Upload/Download: 997.50 Mbps, Bi-Directional: 1965.00 Mbps |
| WAN Connection Type | Static, Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | Static IP/SLAAC/DHCPv6/PPPoE/6to4 Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Routing | Static Routing, Policy Routing, RIP, OSPF |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection |
| NAT | One-to-One NAT, Multi-Net NAT, Port Forwarding, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Session Limit | IP-based Session Limit |
| IPsec VPN | 20 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 Encryption Algorithm, IPsec Failover, IKE v1/v2, MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server, PPTP VPN Client (10), 16 Tunnels, PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server, L2TP VPN Client (10), 16 Tunnels, L2TP over IPSec |
| WireGuard VPN | 20 Tunnels |
| Web Authentication | No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, LDAP |
| Omada App | Yes, Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes, Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (only in Standalone Mode), Syslog Support |
| Zero-Touch Provisioning | Yes, Requiring the use of Omada Cloud-Based Controller |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration |
| Certification | CE, FCC, RoHS |
| Package Contents | ER605, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
