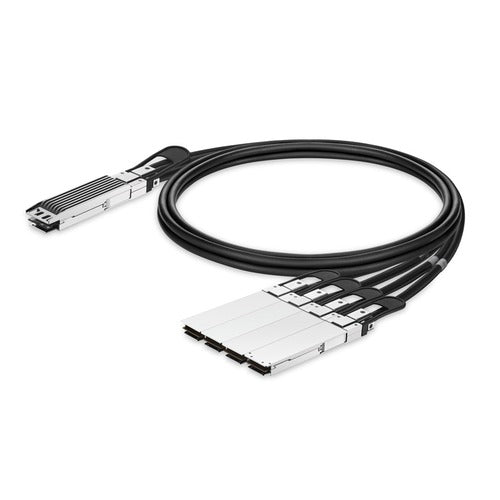

Nvidia MCP7Y50-N002 2 Meters Direct Attach Copper Splitter Cable

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Nvidia MCP7Y50-N002 2 Meters Direct Attach Copper Splitter Cable - 6.56 Feet InfiniBand Network Cable for Network Device - First End: OSFP Network, Second End: 4x OSFP Network - 800 Gbps - InfiniBand NDR200

The NVIDIA/Mellanox InfiniBand NDR MCP7Y50-N002 is an 800Gb/s twin-port OSFP to four 200Gb/s twin-port OSFP Direct Attached Copper quad breakout cable. The 8-channel twin-port OSFP end uses a finned top form-factor for use in Quantum-2 switch cages. The four 200G ends support 2-channels of 100G-PAM4 (200G) and use a flat top OSFP for use in ConnectX-7 adapters using riding heat sinks on the connector cage. This cable is compliant with OSFP MSA (Multi-Source Agreement) and IEEE 802.3ck standards. DACs offer the lowest latency, so are widely used in data centers to connect servers and GPU compute systems to the top-of-rack (TOR) switches and link spine-to-super-spine switches inside racks over short cable lengths. DACs are also used to create InfiniBand storage fabrics with hard-disk-drive (HDD) and flash memory subsystems. Featuring a simple design and minimal components, DAC cables offer the lowest-cost, lowest-latency, and near-zero-power connections for high-speed links. They enhance port bandwidth, density, configurability, and reduce power requirements in supercomputers and hyper scale systems.

Model Number	MCP7Y50-N002
Product Name	Nvidia MCP7Y50-N002 2 Meters Direct Attach Copper Splitter Cable
Product Type	Direct Attach Copper Cable
Color	Black
Connector 1	OSFP
Connector 2	4x OSFP
Data Transfer Rate	800 Gbps
Cable Length	7 Feet
Cable Type	Passive Twinax
Wire Gauge	26 American wire gauge
Jacket Material	PVC (OFNR)
Minimum Bend Radius	71 Millimeter
Features	Passive cable, copper conductors, InfiniBand NDR Link support, up to 800 Gbps
DOM Support	Yes
Application Type	Passive Copper
Modulation Format	PAM4
Power Consumption	0.1 Watts
Compliance Standards	All MSA and IEE Standards & Protocols
Environmental Standards	CE, FCC, RoHS, REACH, Class 1 laser. TAA & UL
Protocols	OSFP MSA, IEEE 802.3ck, CMIS v4.0
