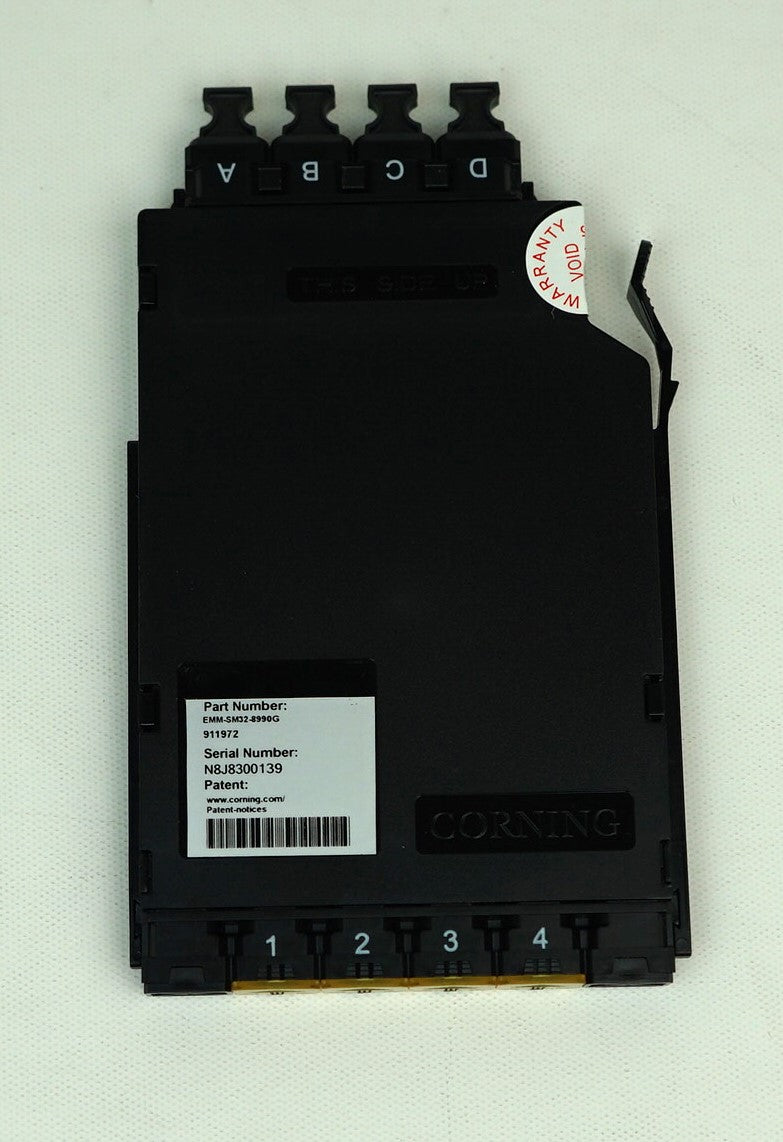

Corning EMM-SM32-8990G EDGE 4x4 Mesh Module

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Corning EDGE 4x4 Mesh Module - 32-Fiber - Shuttered MTP (pinned) to MTP (Non-pinned) - Single-mode (OS2) - Black

The multiclassification mesh solution addresses the complexities associated with deploying secure communications cabling to the workstation. It utilizes the innovative mesh module to consolidate multiple disparate security enclave cables into one cable which can be run to a workstation while maintaining network and classification separation. The 32-fiber mesh module takes 2 fibers from four specified network classification input trunk cables and transitions them to one output trunk cable. This output trunk cable the distributes the four specified networks to end users.

Model Number	EMM-SM32-8990G
Product Name	Corning EMM-SM32-8990G EDGE 4x4 Mesh Module
Product Type	Fiber Mesh Module
Fiber Count	32
Fiber Category	Single-mode (OS2)
Adapter Type Back	MTP (Non-pinned)
Adapter Type Front	Shuttered MTP (pinned)
Adapter Color	Black
Housing Type	Panels and Modules Panel or Module
Type	EDGE
Number of Adapters per Panel	4
Polarity	Universal, TIA-568 Type-B
Module Insertion Loss, Max	1dB
Wavelengths	1310 nm / 1550 nm
Height	1181mm (46.5in)
Width	115mm (4.53in)
Depth	124mm (4.88in)
