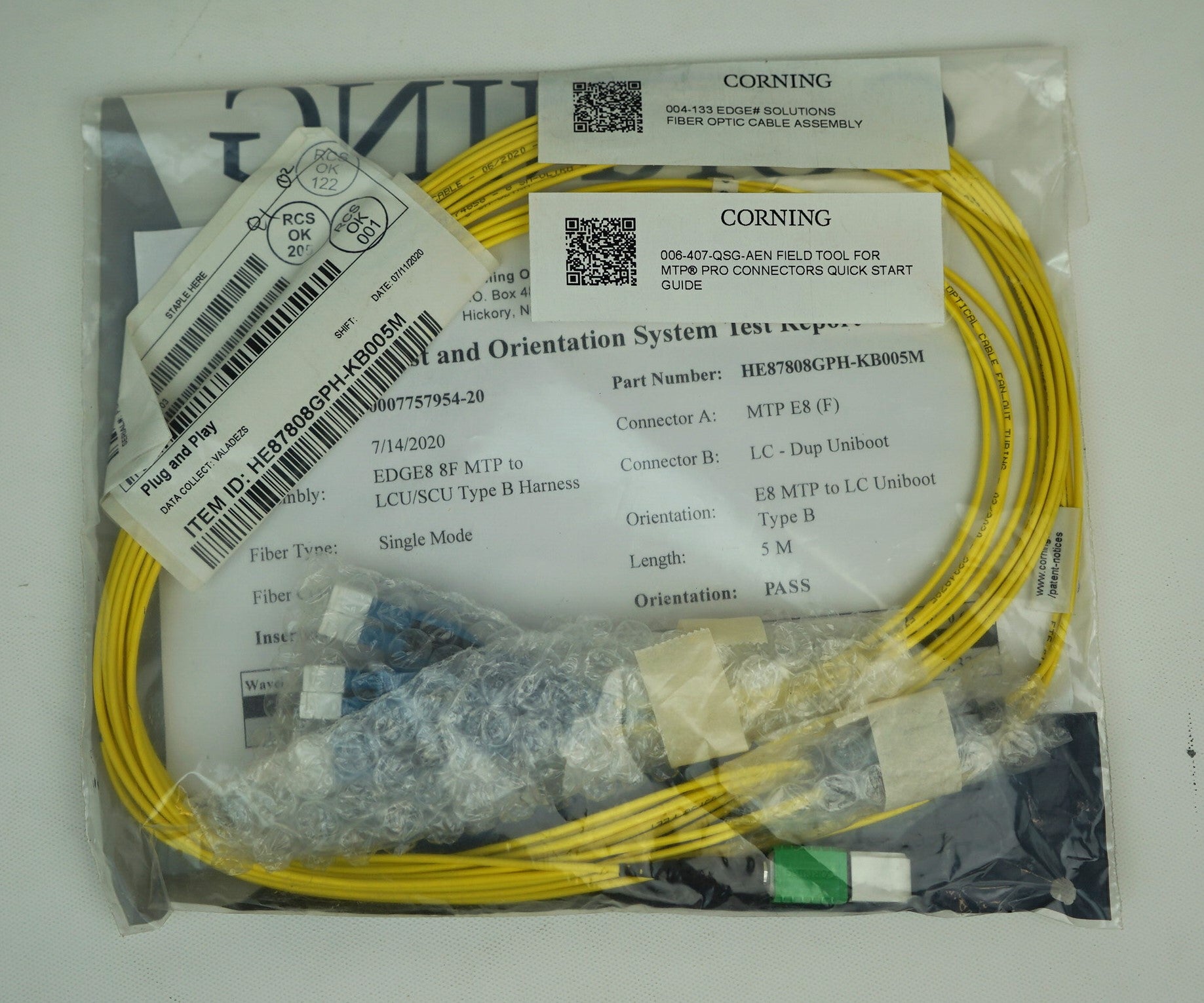

Corning HE87808GPH-KB005M EDGE8 Fiber Harness Cable
Hurry up, only 3 items left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
EDGE8 MTP to LC Uniboot non-staggered harnesses provide breakout from 8-fiber MTP PRO connectors to LC uniboot connectors. These harnesses come with nonstaggered legs in several length options. The majority of the harness is a single cable which breaks out into four, 2-fiber legs to enable connectivity to the switch ports. MTP PRO allows for simple field-friendly pinning and polarity configuration changes with safe handling of pins and easy color identification while maintaining product integrity.
| Model Number | HE87808GPH-KB005M |
| Product Name | Corning HE87808GPH-KB005M EDGE8 Fiber Harness Cable |
| Product Type | Fiber Harness Cable |
| Length | 5M ~ 16ft |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | OS2 |
| Cable Assembly Type | EDGE8 Harness |
| Cable Type | Interconnect |
| Cable Color | Yellow |
| Connector Assembly Type | MTP to LC |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | NFPA 262, National Electrical Code (NEC), OFNP, CSA FT-6 |
| Temperature Range, Installation | 0 C to 50 C (32 F to 122 F) |
| Temperature Range, Operation | -10 C to 60 C (14 F to 140 F) |
| Fiber Count | 8 |
| Polarity | Type-B with Universal LCs |
| Nominal Outer Diameter | 2 mm (0.08 in) |
| Max. Tensile Strength for Installation | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 30 mm (1.18 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Fiber Code | Z |
| Performance Option Code | 01 |
| Fiber Type | Single-mode (OS2) / 250 m |
| Fiber Name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Polish | APC |
| Insertion Loss, Max. | 0.25 dB |
| Boot Color | Black |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Boot Type | Individual |
| Reflectance | < -55 dB |
