Corning JE8E808GE8-NA002M EDGE8 MTP Pro Jumper

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

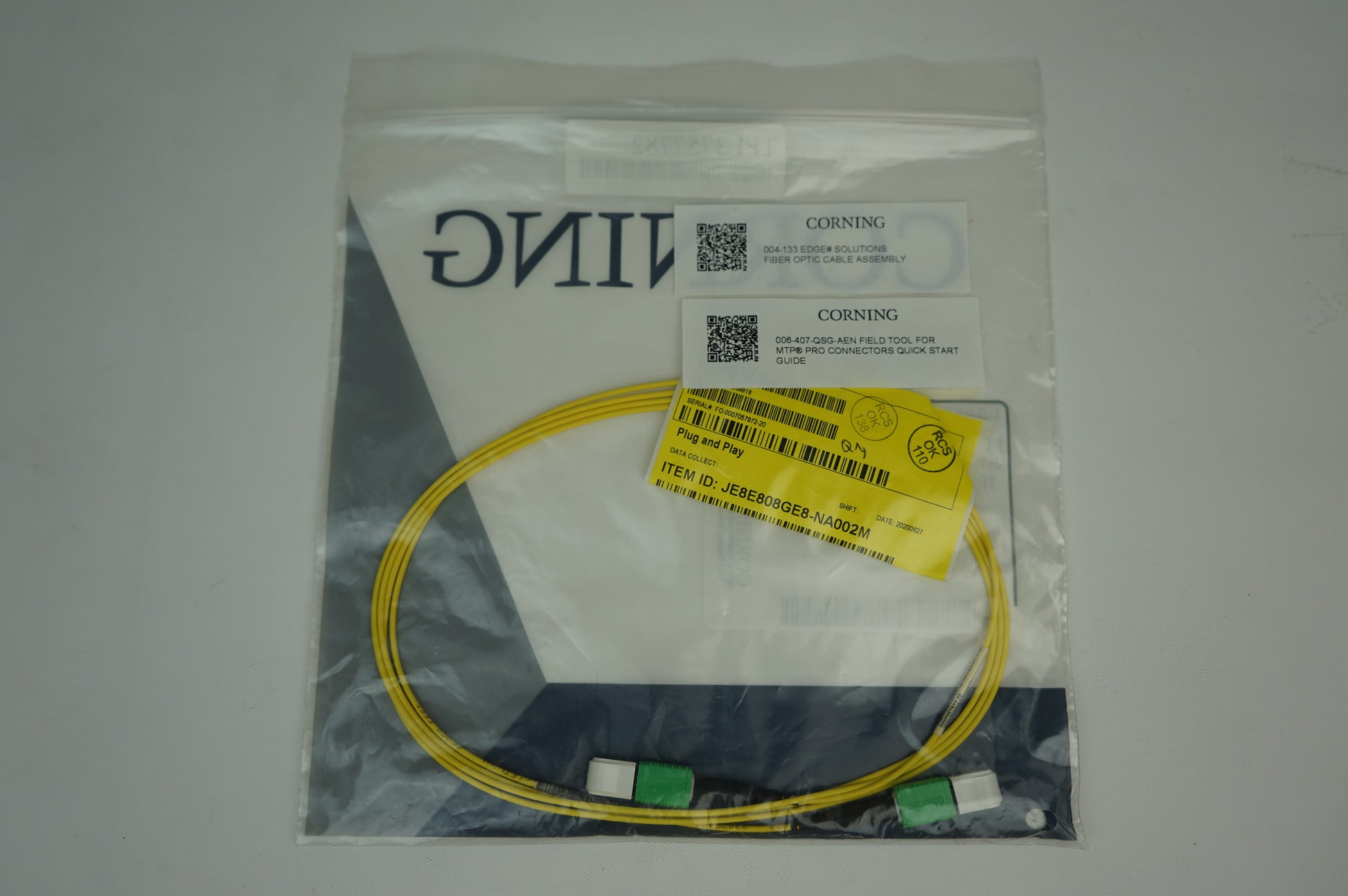

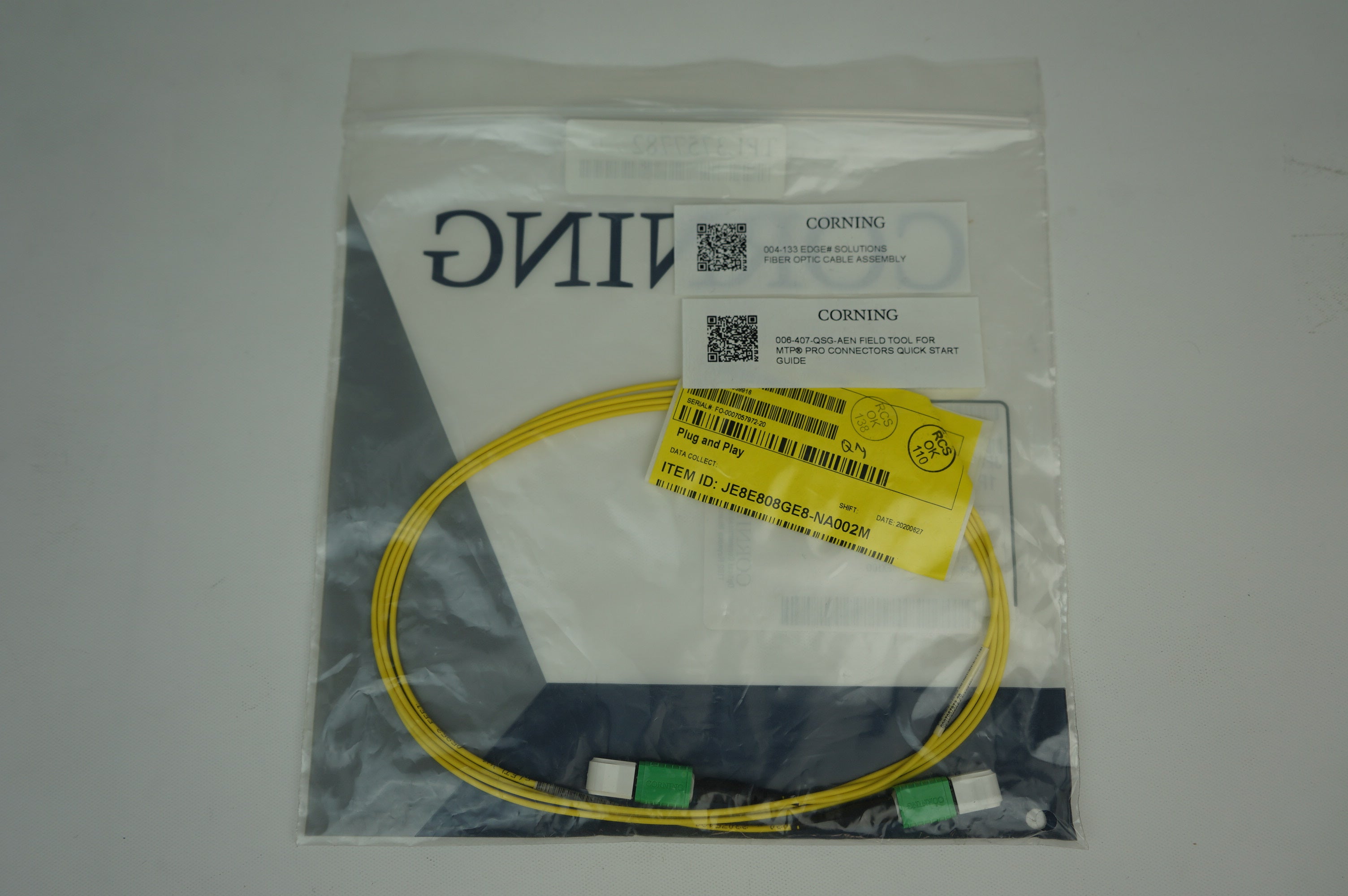

Corning JE8E808GE8-NA002M EDGE8 MTP Pro Jumper Interconnect Cable - 8-Fiber - Single-mode (OS2) - 2M - Yellow

EDGE8 8-fiber MTP PRO jumpers allow for seamless migration to higher data rates in the data center when used in conjunction with EDGE8 trunks. These assemblies have the same connector size and cable footprint as duplex LC jumpers. The density, airflow, and cable management advantages of EDGE8 solutions are preserved as you migrate to higher data rates.

These MTP Jumpers are built utilizing MTP PRO connectors. MTP PRO allows for a simple, one-step, colorcoded polarity change without removing the connector housing. The connector also provides the capability for field-friendly pinning configuration changes with safe handling of pins and easy color identification while maintaining product integrity.

EDGE8 MTP jumpers are manufactured with Corning CleanAdvantage and shipped with optimized dust caps, eliminating the need for cleaning and scoping prior to initial field connection.

Model Number	JE8E808GE8-NA002M
Product Name	Corning JE8E808GE8-NA002M EDGE8 MTP Pro Jumper
Product Type	Fiber Cable
Length	2M ~ 6.5ft
Flame Rating	Plenum
Fiber Category	OS2
Cable Assembly Type	EDGE8 Jumper
Environment	Indoor
Application	Data Center LAN/SAN
Cable Type	Interconnect
Assembly Insertion Loss	0.7 dB
Connector Assembly Type	MTP to MTP
RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings	NFPA 262, National Electrical Code (NEC), OFNP, CSA FT-6
Temperature Range, Installation	0 C to 50 C (32 F to 122 F)
Temperature Range, Operation	-10 C to 60 C (14 F to 140 F)
Fiber Count	8
Outer Jacket Material	Plenum
Polarity	TIA-568 Type-A
Fiber Type	OS2 Bend-improved SM
Nominal Outer Diameter	2 mm (0.08 in)
Max. Tensile Strength for Installation	220 N (49.46 lbf)
Min. Bend Radius Installation	30 mm (1.18 in)
Min. Bend Radius Operation	10 mm (0.39 in)
Weight	3.5 kg/km (2.35 lb/1000 ft)
Fiber Code	Z
Performance Option Code	01
Fiber Name	Bend-Improved Single-mode (OS2)
Maximum Attenuation	0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths	1310 nm / 1383 nm / 1550 nm
Fiber Compliance	ITU-T G.652.D and ITU-T G.657.A1
Polish	APC
Insertion Loss, Max.	0.35 dB
Boot Color	Black
Connector Type	MTP PRO (non-pinned)
Ferrule Material	Composite
Boot Type	Individual
Reflectance	< -55 dB
Outer Diameter	Standard
Armor	Non-armored
Cable Color	Yellow
Fiber Mode	Single-Mode
