Nvidia MFP7E10-N015 49 Feet Passive Fiber Jumper Cable
Regular price
Now Only:
Sale price
$100.97
Regular price
$109.20
Save 7%
Available in stock (15)
The APC endface incorporates an 8-degree angled polish that effectively suppresses back-reflected light from re-entering the laser source, thereby preventing signal distortion and device performance... See Product Details for more information.
New products are Factory Sealed.
Couldn't load pickup availability
Same Technology, Lower Price!
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.
Product Details
Product Details

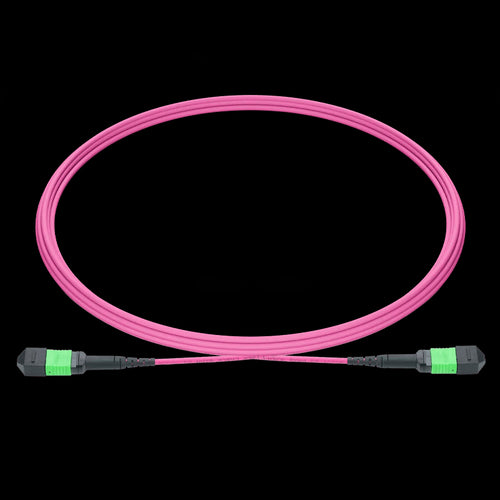

Nvidia MFP7E10-N015 49Feet Passive Fiber Jumper Cable - Magenta - MPO-12 APC Female To MPO-12 APC Female - 12 Fibers - Multimode - OM4 - Type B - LSZH
The APC endface incorporates an 8-degree angled polish that effectively suppresses back-reflected light from re-entering the laser source, thereby preventing signal distortion and device performance degradation. The product is designed for interconnecting InfiniBand and Ethernet Multimode dual-port OSFP, single-port OSFP, and QSFP112 transceivers, making it ideal for high-speed data center fiber links. Typical deployment scenarios include connections between dual-port OSFP switches, as well as linking transceivers within ConnectX-7 network adapters or BlueField-3 Data Processing Units (DPUs) within compute and storage servers. It also supports in-band and out-of-band management networks, ensuring comprehensive connectivity across AI data center fabrics.
The APC endface incorporates an 8-degree angled polish that effectively suppresses back-reflected light from re-entering the laser source, thereby preventing signal distortion and device performance degradation. The product is designed for interconnecting InfiniBand and Ethernet Multimode dual-port OSFP, single-port OSFP, and QSFP112 transceivers, making it ideal for high-speed data center fiber links. Typical deployment scenarios include connections between dual-port OSFP switches, as well as linking transceivers within ConnectX-7 network adapters or BlueField-3 Data Processing Units (DPUs) within compute and storage servers. It also supports in-band and out-of-band management networks, ensuring comprehensive connectivity across AI data center fabrics.
| Model Number | MFP7E10-N015 |
| Product Name | Nvidia MFP7E10-N015 49 Feet Passive Fiber Jumper Cable |
| Product Type | Cable |
| Color | Magenta |
| Cable Length | 49 Feet |
| Connector Type | MPO Female to Female |
| Fiber Grade | Bend Insensitive |
| Polish Type | APC to APC |
| Polarity | Type B |
| Fiber Mode | Multimode |
| Fiber Count | 12 Fibers |
| Wavelength | 850 / 1300 nm |
| Cable Jacket / Flame Rating | LSZH / OFNR |
| Insertion Loss | <= 0.35 dB |
| Return Loss | >= 35 dB |
| Attenuation @ 850?nm | <= 2.3 dB/km |
| Attenuation @ 1300?nm | <= 1.0 dB/km |
| Min. Bend Radius (Fiber Core) | 7.5 Millimeter |
| Min. Bend Radius (Cable) | 10/5D (Dynamic / Static) |
| Cable Diameter | 3.0 Millimeter |
| Tensile Strength | 80 / 150 N (Long / Short Term) |
| Connector Durability | >= 500-1000 cycles |
