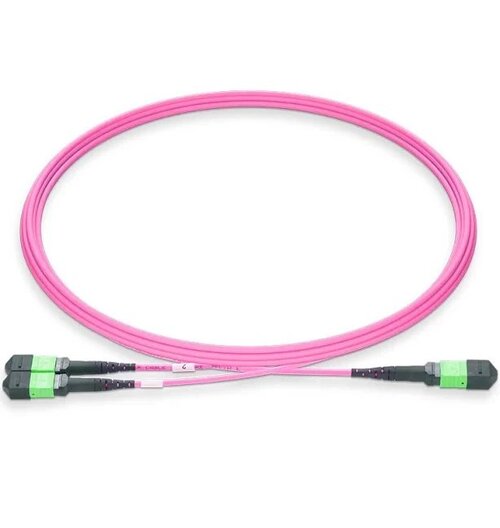

Nvidia MFP7E20-N015 Passive Multimode Fiber Cable - 15 Meters - MPO-12 APC to 2 x MPO-12 APC
| Model Number | MFP7E20-N015 |
| Product Name | Nvidia MFP7E20-N015 Passive Multimode Fiber Cable |
| Product Type | Network Cable |
| Connector (First End) | MPO-12/APC multi-mode |
| Connector (Second End) | 2 x MPO-12/APC multi-mode |
| Fiber Mode | OM4 50/125mm |
| Wavelength | 850/1300nm |
| 400G Ethernet Distance | 50/100 Meters at 850nm |
| 800G Ethernet Distance | 50 Meters at 850nm |
| Glass Fiber | Bend Insensitive Fiber |
| Polish Type | APC to APC |
| Insertion Loss | [?]0.35dB (0.15dB Typ.) |
| Return Loss | [?]45dB |
| Attenuation at 850nm | [?]2.3dB/km |
| Attenuation at 1300nm | [?]0.6dB/km |
| Cable Jacket | Plenum (OFNP) |
| Minimum Bend Radius | 7.5 Millimeters |
| Cable Outside Diameter (OD) | 3.0 Millimeters |
| Breakout Length | 0.5 Millimeters |
| Installation Tensile Load | 66N |
| Tensile Strength | 60/120N (Long/Short Term) |
| Technology | Fiber Optic |
| Type of Fiber Optics | Multimode |
| Features | Passive Cable |
| Cable Length | 15 Meters |
