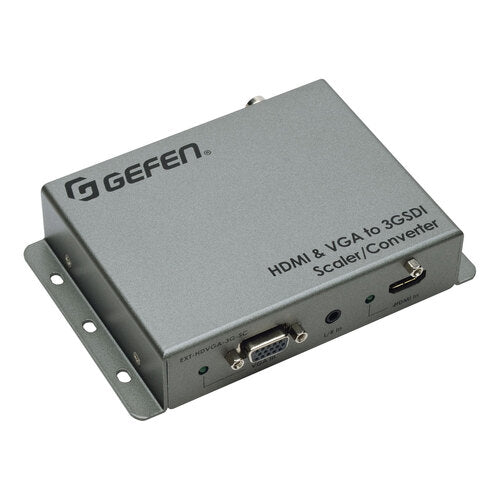

Gefen EXT-HDVGA-3G-SC HDMI and VGA to 3GSDI Video Scaler / Converter
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
The Gefen EXT-HDVGA-3G-SC scales and converts video from an HDMI or a VGA source to SDI formats, including 3G-SDI and single link HD-SDI. It can also embed HDMI audio or analog L/R audio into the SDI stream. Video can be scaled up to 1080p Full HD. An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/ customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.
| Model Number | EXT-HDVGA-3G-SC |
| Product Name | Gefen EXT-HDVGA-3G-SC HDMI and VGA to 3GSDI Video Scaler / Converter |
| Product Type | Video Scaler |
| Maximum Pixel Clock | HDMI and VGA Inputs: 165 MHz, SDI Output: 150 MHz |
| Maximum TMDS Clock | 225 MHz |
| Video Input Connectors | (1) HDMI Type A 19-pin, female, locking, (1) VGA HD-15, female |
| Audio Input Connector | 3.5 Millimeter Mini-stereo Jack |
| Video Output Connector | SDI, BNC-type, Female |
| USB Connector | Mini-B |
| Control Switches | 3 x Tact-type (Input Select / Menu / Navigation) |
| HDMI Indicator | LED, Green |
| VGA Indicator | LED, Green |
| Power Indicator | LED, Glue |
| Power Supply Connector | 3-pin, locking |
| Power Supply | 12 Volts DC nominal (Operating range: 6 Volts to 24 Volts DC) |
| Power Consumption | 5 Watts Maximum |
| Dimensions | Width 5.6 x Depth 3.7 x Height 1.2 Inches |
| Weight | 0.5 lbs. |
