Nvidia HPE MCA4J80-N003 9.84-feet (3m) InfiniBand NDR Switch-Switch
Regular price
Now Only:
Sale price
$541.49
Regular price
$1,468.95
Save 63%
Hurry up, only 10 items left in stock.
NVIDIA MCA4J80 is a 800Gb/s twin-port OSFP (Octal Small Form factor Pluggable)-to-2x400Gb/s twin-port OSFP Active Copper Cable (ACC) for InfiniBand NDR networking. ACC cables are the second... See Product Details for more information.
New products are Factory Sealed.
Couldn't load pickup availability
Same Technology, Lower Price!
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.
Product Details
Product Details

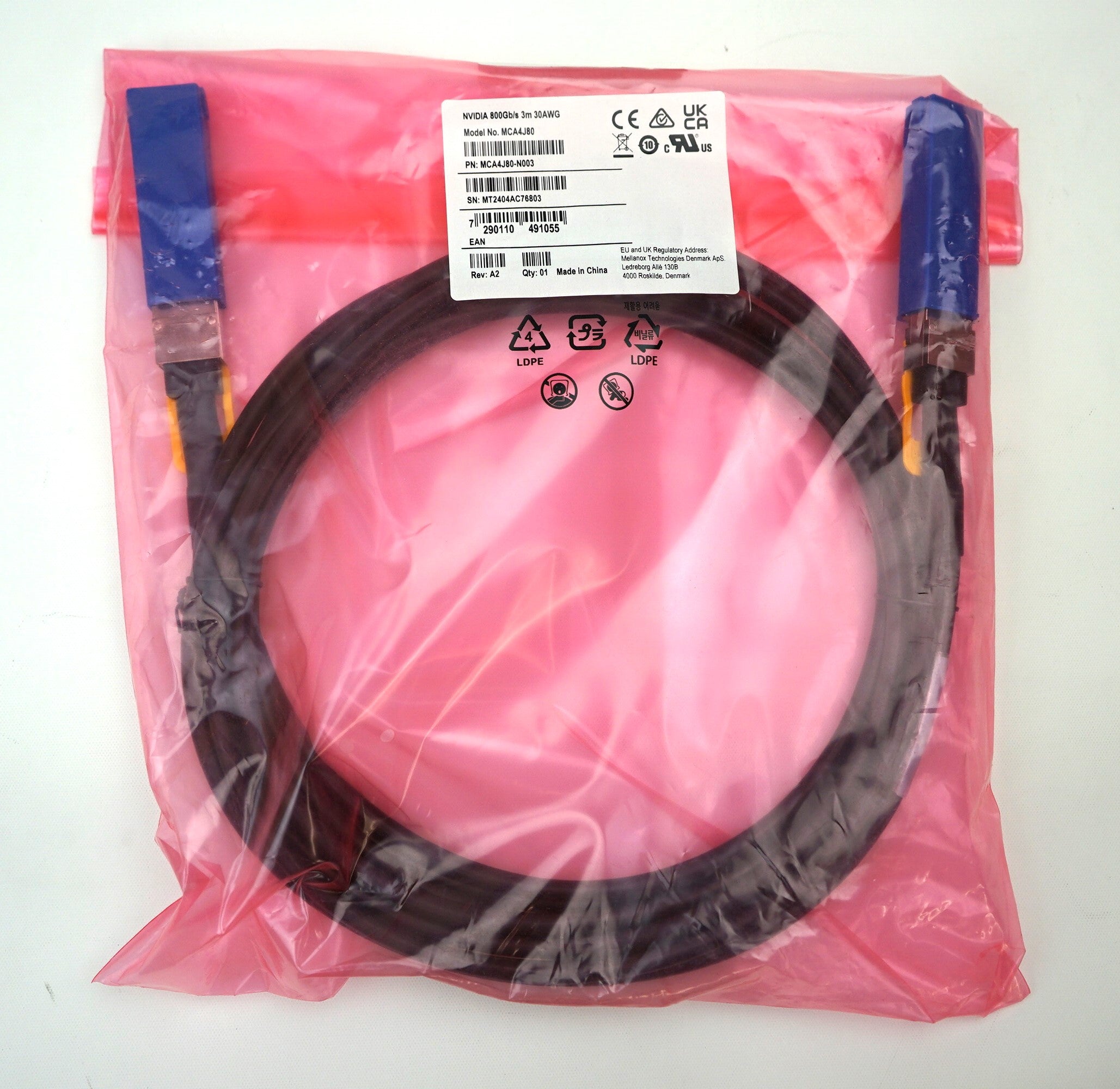

Nvidia HPE MCA4J80-N003 9.84-feet (3m) InfiniBand NDR Switch-Switch Active Copper Cable - OSFP to OSFP - 30 AWG - 800 Gbps
NVIDIA MCA4J80 is a 800Gb/s twin-port OSFP (Octal Small Form factor Pluggable)-to-2x400Gb/s twin-port OSFP Active Copper Cable (ACC) for InfiniBand NDR networking. ACC cables are the second lowest-cost, lowest-latency, very low-power consuming, high-speed links available due to their simplicity of design and minimal components. The "active" term refers to the passive copper cable with an equalizer integrated circuit to extend the length to 3, 4, and 5 meters while maintaining very low-latency and very low-power at 1.5 Watts per end. Thin 30AWG is used for 4m lengths and thicker 26AWG for 5m. Each end includes an EEPROM which provides product identification and characteristics to the host system. For lengths less than 3 meters, use passive DAC cables. An ACC is a passive DAC with a pre-emphasis equalizer IC included in each end, enabling cable lengths of up to 5 meters while maintaining very low-latency and very low-power at 1.5 Watts a per end. Every cable length is tuned to reduce signal noise and back reflections. The ACC firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to. The main use case for the MCA4J80 is to link two 800Gb/s Quantum-2 switches to each other (up to 5-meters). The 3-meter, flat and finned-top cable is for linking Quantum-2 switches to DGX-H100 Cedar systems.
NVIDIA MCA4J80 is a 800Gb/s twin-port OSFP (Octal Small Form factor Pluggable)-to-2x400Gb/s twin-port OSFP Active Copper Cable (ACC) for InfiniBand NDR networking. ACC cables are the second lowest-cost, lowest-latency, very low-power consuming, high-speed links available due to their simplicity of design and minimal components. The "active" term refers to the passive copper cable with an equalizer integrated circuit to extend the length to 3, 4, and 5 meters while maintaining very low-latency and very low-power at 1.5 Watts per end. Thin 30AWG is used for 4m lengths and thicker 26AWG for 5m. Each end includes an EEPROM which provides product identification and characteristics to the host system. For lengths less than 3 meters, use passive DAC cables. An ACC is a passive DAC with a pre-emphasis equalizer IC included in each end, enabling cable lengths of up to 5 meters while maintaining very low-latency and very low-power at 1.5 Watts a per end. Every cable length is tuned to reduce signal noise and back reflections. The ACC firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to. The main use case for the MCA4J80 is to link two 800Gb/s Quantum-2 switches to each other (up to 5-meters). The 3-meter, flat and finned-top cable is for linking Quantum-2 switches to DGX-H100 Cedar systems.
| Model Number | MCA4J80-N003 |
| Product Name | Nvidia HPE MCA4J80-N003 9.84-feet (3m) InfiniBand NDR Switch-Switch Active Copper Cable |
| Product Type | Network Cable |
| Cable Length | 9.84 feet |
| Cable Type | InfiniBand |
| Form Factor | OSFP |
| Connector 1 | OSFP Network |
| Connector 2 | OSFP Network |
| Device Supported | Network Device |
| Data Transfer Rate | 800 Gbps |
| Features | Active, Flat |
| Material Details | Copper - Cable |
| Minimum Bend Radius | 72 mm |
| Wire AWG | 30 AWG |
| Output Voltage | 208 - 230 Volts AC |
| Protocols | Web, SNMP, Telnet |
