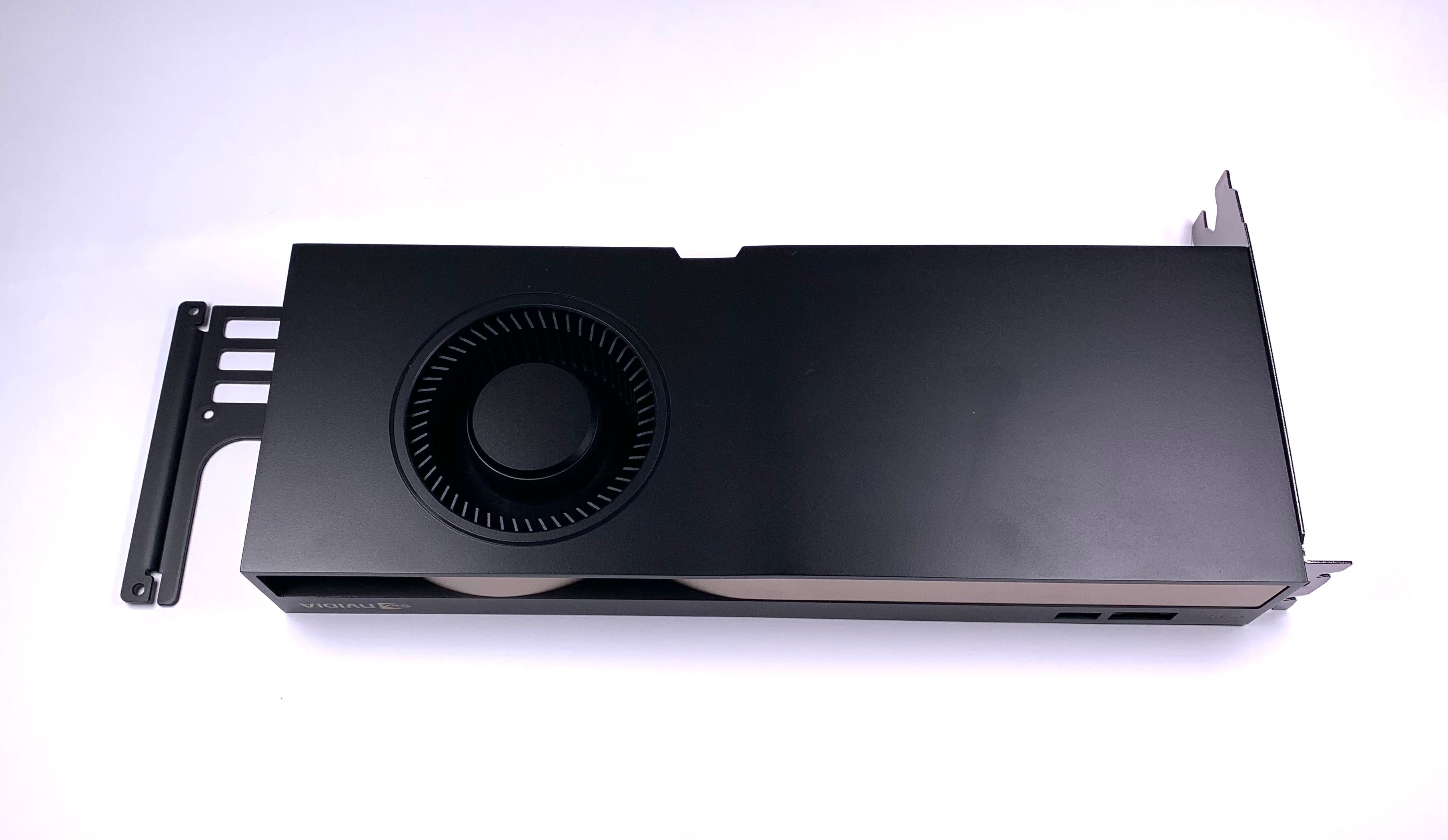

Dell 84MHH NVIDIA RTX 5000 Ada Gen 32 GB Workstation Graphics Card

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Dell 84MHH NVIDIA RTX 5000 Ada Gen 32 GB Workstation Graphics Card - GDDR6 - PCI-E 4.0 x16 - ECC - Single-Fan - Dual-Slot - 4 x Displayport

The Dell 84MHH - NVIDIA RTX 5000 Ada Generation is a professional workstation graphics card engineered for demanding visualization, simulation, and compute workloads. It integrates 32GB of GDDR6 memory with ECC support, ensuring reliability and error-correction for mission-critical applications. Operating on the PCI Express 4.0 x16 interface, it delivers high-bandwidth throughput for intensive data processing. The card adopts a dual-slot design with a single-fan cooling system, balancing compact form factor with effective thermal management. Connectivity is provided through four DisplayPort outputs, enabling advanced multi-monitor setups and support for high-resolution displays, making it ideal for professional visualization environments.

Model Number	84MHH
Product Name	Dell 84MHH NVIDIA RTX 5000 Ada Gen 32 GB Workstation Graphics Card
Product Type	Graphics Card
Engine Architecture	Ada Lovelace
CUDA Cores	12800
Tensor Cores	400 (4th Gen)
RT Cores	100 (3rd Gen)
Single Precision Performance	65.3 TFLOPS
RT Core Performance	151.0 TFLOPS
Tensor Performance	1044.4 TFLOPS
GPU Clock	1155 MHz
Boost Clock	2550 MHz
Process Size	5 nm
Transistors	76.3 Billion
Die Size	609 mm2
Memory Configuration	32 GB
Memory Type	GDDR6
Memory Interface Width	256-bit
Memory Bandwidth	576 GB/s
Memory Clock	18 Gb/s
Bus Support	PCI-E 4.0
Physical Interface	PCI-E 4.0 x16
ECC	Yes
Code Engine	2x Encode / 2x Decode (+AV1)
Supported OS	Windows 10/11, Linux 64-bit, FreeBSD 13.1, Solaris 11 U4
Technologies	Ada Lovelace, CUDA 12.2, RT Cores, Tensor Cores, DirectX 12, Shader Model 6.7, OpenGL 4.6, Vulkan 1.3, OpenCL 3.0, DirectCompute, NVIDIA vPC/vApps, GPUDirect (Video, RDMA), Quadro Sync II, RTX Experience, RTX Desktop Manager, RTX IO, Mosaic, VR Ready, HDCP 2.2, 3D Stereo
Max Resolution	7680x4320 @ 60 Hertz (2 displays)
Other Modes	5120x2880 @ 60 Hertz (4 displays), 4096x2160 @ 120Hz (4 displays)
Multi?Monitor	Up to 4 displays
Display Connectors	4 x DisplayPort
HDCP	2
Total Power Consumption	250 Watts
Recommended PSU	600 Watts
Power Connector	1 x 16-pin (PCIe 12P+4P)
Cooling System	Active, single-fan blower
Form Factor	Standard workstation GPU
