Tripp Lite B070-016-19 Netcommander 19 Inches Rackmount LCD Console
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details

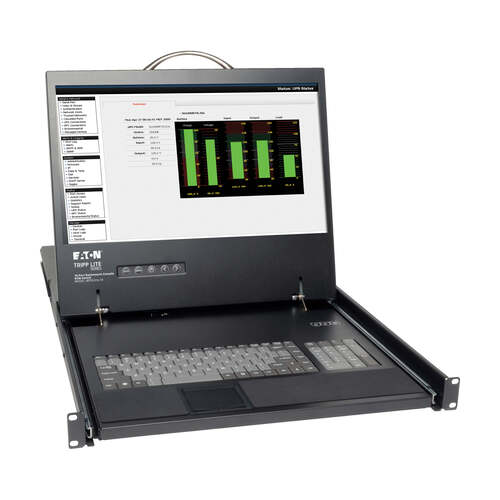

This B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers. The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a cabling and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hotkey commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768. The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Note: B051-000 remote access IP unit is not compatible with B070-008-19 or B070-016-19 NetCommander Cat5 1U Rack-Mount Console KVM Switch Series.
| Model Number | B070-016-19 |
| Product Name | Tripp Lite B070-016-19 Netcommander 19 Inches Rackmount LCD Console KVM Switch |
| Product Type | KVM Switch |
| Color | Black |
| LCD Monitor (in.) | 19 Inches |
| Material of Construction | Steel (Electrogalvanized, Cold Rolled, Coil) |
| Side A Connector 1 | (2) HD15 (Female) |
| Side A Connector 2 | (4) Mini DIN-6 (Female) |
| Side A Connector 3 | RJ11 (Female) |
| Side B Connector 1 | (16) RJ45 (Female) |
| Number of Ports | 16 |
| Max CPU | 256 |
| Technology | Cat5/5e; PS/2; VGA/SVGA |
| Max Supported Video Resolution | 1366 x 768 at 60 Hertz |
| Max. Distance (Between any 2 Units) | 100 Feet (30.5 m) |
| Max Number of Ports (Entire Chain) | 256 |
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
| Input Frequency | 50/60 Hertz |
| Input Current | 120 Volts (1.4 Amp) / 230 Volts (0.8 Amp) |
| Power Input Receptacle | IEC-320-C14 |
| Frequency Compatibility | 50 / 60 Hertz |
| Power Consumption (Watts) | 30 Watts |
| Power Consumption Detail | (Line Mode) 30 Watts / (Standby Mode) 5 Watts |
| LED Indicators | Green (Caps Lock, Scroll Lock, Num Lock) |
| IP Remote Access | No |
| Daisy?chainable or Cascadable | Cascadeable |
| NIAP?Certified Secure | No |
| Number of Users | 1 |
| Port Selection | Hotkey; OSD |
| Driver Required | No |
| Autoscan Duration | Variable |
| Recommended Category Cable | Cat5e/6/6a Cables |
| Console Screen Size (inches) | 19 |
| Console Screen Aspect Ratio | 16:9 |
| Rackmountable | Yes |
| Console | Yes |
| Hotkey | Yes |
| Autoscan (Y/N) | Yes |
| On?Screen Display (OSD) | Yes |
| PC/Server Connections | PS/2; USB; VGA |
| Computer Keyboard & Mouse Interface | PS/2; USB |
| Computer Monitor Interface | VGA |
| Product Certifications | CAN/CSA C22.2; CAN/CSA-C22.2 No. 60950-1 (Canada); UL 60950-1 |
| Product Compliance | RoHS; CE (Europe); REACH; FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Dimensions | Height 1.710 x Width 17.690 x Depth 28.440 Inches |
| Weight | 31 lbs |
