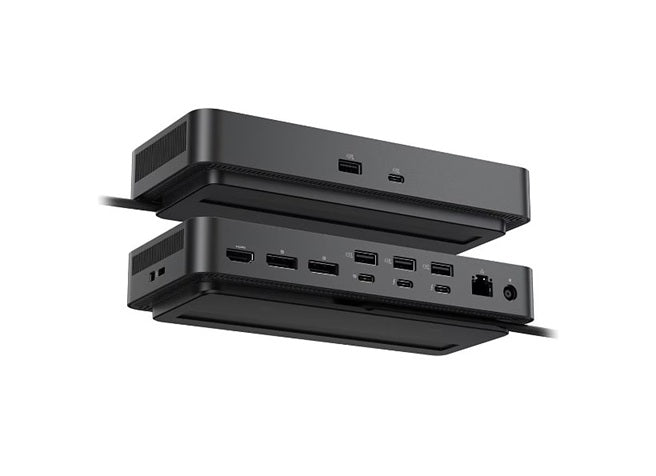

Dell Pro WD25TB5 Thunderbolt 5 Dock
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
Upgrade your workspace with the Dell Pro Dock WD25TB5, a powerful Thunderbolt 5 docking station designed to expand connectivity, maximize productivity, and deliver high-speed power to your Dell laptops and desktops. Engineered for professionals, it combines performance, versatility, and sleek design in one compact device.
| Model Number | WD25TB5 |
| Product Name | Dell Pro WD25TB5 Thunderbolt 5 Dock |
| Product Type | Docking Station |
| Color | Black |
| Connectivity Technology | Wired |
| Screen Modes Supported | QHD @ 60Hz, WQHD @ 60Hz, 4K @ 60Hz, 5K @ 60Hz, 6K @ 60Hz, 8K @ 60Hz, 4K @ 120Hz |
| Supported Resolutions | 3840x2160, 5120x2160, 2560x1440, 3440x1440, 7680x4320, 6144x3456 |
| Cable Length | 2.72 Feet |
| Management Features | Intel AMT over Thunderbolt (select Intel vPro PCs), MAC Address Pass-through, PXE Boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN Switch, Kernel DMA Protection, Dell Command Update (DCU), Port Disablement, Host PC-based firmware update, Firmware update on disconnect |
| Number of Displays Supported | 4 |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Security Slot Type | Kensington Security Slot, Noble Wedge Security Slot |
| Power Delivery Details | 4x USB-A 3.2 Gen 2 (4.5W each), 1x USB-C 3.2 Gen 2 (15W), 1x USB-C Multi-function DisplayPort (7.5W), 2x Thunderbolt 5 (15W each), All deliver power with or without PC |
| Power Delivery (System) | Up to 300W (Dell Systems), Up to 240W (non-Dell Systems) |
| Video Resolution Details | QHD 60Hz (Quad), WQHD 60Hz (Triple), 4K 60Hz (Dual/Triple/Quad), 5K 60Hz (Single), 6K 60Hz (Dual), 8K 60Hz (Single), 4K 120Hz (Triple/Quad) |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Host Interface | Thunderbolt 5 |
| Total Number of USB Ports | 6 |
| USB Type?A | Yes |
| Number of USB 3.2 Gen 2 Type?A Ports | 4 |
| Number of USB Type?A Ports | 4 |
| USB Type?C | Yes |
| Number of USB 3.2 Gen 2 Type?C Ports | 1 |
| USB Type?C Detail | 1 x USB-C 3.2 Gen 2 (10 Gbps, 15W), 1 x USB-C Multi-function DisplayPort (7.5W) |
| Number of USB Type?C Ports | 2 |
| Network (RJ?45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 2.1 |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| HDMI Version | 2.1 |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| Maximum Power Supply Wattage | 330 Watts |
| Power Source Type | Power Adapter |
| Interfaces | 2 x DP 2.1, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 2 x Thunderbolt 5 |
| Features | Power Delivery Pass-through, LED Power Indicator, Indicator Light |
| Kensington Security Slot | Yes |
| Host Software (Windows) | Dell Firmware Utility, Dell Display and Peripheral Manager, Dell Command Update, Cloud Management (via host PC software) |
| Dell Device Management Console Capabilities | Automatic firmware updates, Maintain specific firmware version or downgrade, Peripheral inventory and status |
| Operating Systems Supported | Windows 10, Windows 11, Ubuntu 24.04, Red Hat Enterprise Linux 9.7, ChromeOS 141, macOS |
| Device Supported | Notebook, Desktop PC |
| Dimension | Height 1.39 x Width 8.07 x Depth 3.54 Inches |
| Weigh | 1.37 lbs |
