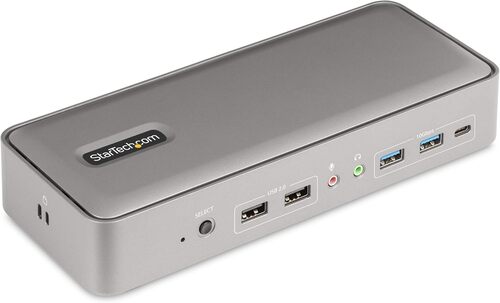

StarTech 129N-USBC-KVM-DOCK Dual-laptop USB-C KVM Docking Station

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

The USB-C KVM Docking Station facilitates a dual-host, dual monitor 4K 60Hz workstation with two DisplayPort ports. Connect two USB-C laptops and select the target host device, using the toggle button. It features a 5-Port USB Hub, a Gb Ethernet port, and USB Power Delivery to charge the hosts and peripherals. Additionally, 3.5mm ports enable speaker and mic audio. The dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS (supports mixed operating systems). DisplayLink technology supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The KVM docking station charges both host computers over USB-C, using Power Delivery 3.0. The dock supplies 90W of power to the active host and 45W of power to the host on standby.

Model Number	129N-USBC-KVM-DOCK
Product Name	StarTech 129N-USBC-KVM-DOCK Dual-laptop USB-C KVM Docking Station
Product Type	Docking Station
Color	Space Gray
Material	Plastic
External Ports	2 x USB 2.0 Type-A (480 Mbps) 2 x USB 3.2 Gen 2 Type-A (10 Gbps) 1 x USB 3.2 Gen 2 Type-C (10 Gbps) 1 x 3.5 mm Mini-Jack (3-position) 1 x 3.5 mm Mini-Jack (2-position) 2 x DisplayPort (20-pin) 1 x RJ-45 Ethernet
Host Connectors	2 x USB 3.2 Gen 2 Type-C (10 Gbps)
Display Support	Up to 2 displays Max resolution: 2 x DP @ 4096x2160 (4K) 60Hz
Fast Charging	No
Interface	USB 3.2 Gen 2 (10 Gbps)
Bus Type	USB-C
Lock Slot Compatibility	Kensington Standard Slot (K-Slot) Kensington Nano Slot
Industry Standards	DisplayPort 1.4 USB 3.2 Gen 2 USB 2.0 USB PD 3.0 IEEE 802.3 / 802.3u / 802.3ab
Chipsets	DisplayLink DL6950 Genesys Logic GL3590 Genesys Logic GL9510 Parade PS186 Realtek RTL8211F
LED Indicators	Power LED (white) LAN Link LED (green) LAN Activity LED (amber)
Wake?on?LAN	Yes
Max Data Rate	USB 3.2 Gen 2 - 10 Gbps
Network Support	10/100/1000 Mbps Full duplex PXE: No
KVM Features	2 x KVM ports Port switching: Push-button + hotkeys
MTBF	42,209 hours
Power Source	AC Adapter (included)
Power Delivery	90 Watts to active host 45 Watts to second host
Input Voltage	100-240 Volts AC
Input Current	2.4 Amp
Output Voltage	20 Volts DC
Output Current	9:00 AM
Polarity	Center-positive
Plug Type	CP (OD 7.4 mm / ID 5.1 mm / CPD 0.6 mm)
Power Consumption	180 Watts
Windows	10, 11, 11 ARM
macOS	10.15 -> 15.0, 26.1
Ubuntu	18.04, 20.04, 22.04, 24.04
Host Devices	Up to 2 devices with USB-C
Charging Support	Host USB-C port must support USB Power Delivery
USB Naming Note	USB 3.2 Gen 2 = USB 3.1 Gen 2 = USB 3.1 (10 Gbps)
ChromeOS	Supported
Dimensions	Length 8.8 x Width 3.5 x Height 1.6 Inches
Weight	14.2 oz
