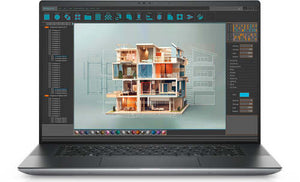

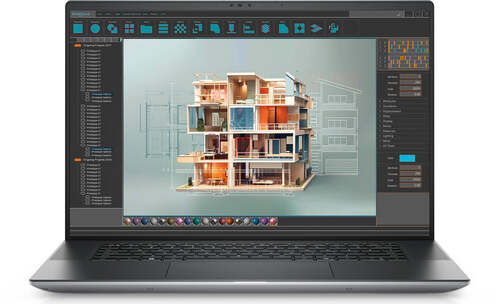

Dell Precision 5690 W7XCG 16 Inches Full HD+ Mobile Workstation
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
Created for premium laptops, Intel Core Ultra processors include built-in AI acceleration to boost productivity while maintaining privacy and flexibility. Intel Core Ultra processors may include Intel Arc GPU for immersive, high-realism gaming and content creation. An optimal balance of power and performance means you'll be able to stay productive longer while unplugged. The Precision 5690 has a sleek look and feel that delivers exceptional performance. With an optional OLED 4k touch display, WIFI 7 capabilities, and up to NVIDIA RTX 5000 Ada graphics it is an outstanding workstation for creative and design applications. Fast and efficient Intel Core Ultra 5, 7 and 9 processors 45W options featuring the unique combined AI-engine of CPU, integrated Intel(r) Arc graphics GPU, and dedicated low-power AI engine NPU with Intel AI Boost, and Intel vPro options. Faster integrated graphics and up to NVIDIA RTX 5000 Ada graphics. Up to 64GB of LPDDR5x 7467MT/s dual channel memory. 2x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB). Up to 6-cell (99.5Whr) Lithium-Ion polymer battery with Express ChargeBoost. Dual Opposite Outlet (DOO) fans, heat pipes, GORE and User Selectable Thermal Tables (USTT). The 5690 is set with Haptics trackpad, dual array mics, four premium speakers, and optional touch screen. FHD IR camera with HDR complete with ambient light sensor and Windows Hello. Get an expansive 16:10 display with up to UHD+ OLED, DCI-P3 100%, up to 500nits brightness, and Premier Color. Complete with ComfortView Plus options to reduce blue light emissions. Intel Core Ultra processors enable AI-powered efficiency with AI accelerators within the world's most intelligent commercial PCs featuring Intel AI Boost, with vPro options and Copilot in Windows 11. Enjoy power-efficient performance for business workloads with this new CPU, GPU, and NPU three tier multi-processing architecture. Time saver: Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday. Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient: Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls. Creativity: 132% faster performance when running on-device AI photo editing on Adobe. Detect malware with less than 1% CPU utilization using CrowdStrike. Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don't impact overall system performance. Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimizes audio connectivity, productivity and configurability, all in one software. This Precision workstation is designed thoughtfully using sustainable materials including post-consumer recycled plastic and low-emissions and recycled aluminum in its chassis. This workstation is certified ENERGY STAR 8.0, TCO certified Generation 9, and EPEAT Gold registered with Climate+.
| Model Number | W7XCG |
| Product Name | Dell Precision 5690 W7XCG 16 Inches Full HD+ Mobile Workstation |
| Product Type | Mobile Workstation |
| Color | Anodized Titan Gray |
| Screen Size | 16 Inches |
| Resolution | 2.07 Megapixel (Standard), 0.23 Megapixel (Infrared) |
| Touch Screen | No |
| Screen Type | Full High-Definition Plus (FHD+), Anti-glare Display |
| Display Type | LED |
| Brightness | 500 Nits |
| Pixel Pitch | 0.18 Millimeter |
| Response Rate | 30 Millisecond |
| Low Blue Light Technology | Yes |
| Viewing Angle | +85deg / -85deg Horizontal & Vertical |
| Panel Technology | IPS |
| Pixel Density | 142 ppi |
| Refresh Rate | 60 Hertz |
| Widescreen Display | Yes |
| Color Gamut | 100% DCI-P3 |
| Processor | Intel Core Ultra 7 165H |
| Processor Speed | 1.4 GHz Base Frequency, Up to 5.0 GHz Burst Frequency |
| Cores | 16 cores |
| Threads | 22 threads |
| Cache | 24 MB cache |
| Platform Technology | Intel vPro Enterprise |
| AI Processor Technology | Intel AI Boost |
| RAM Capacity | 32 GB |
| Memory Technology | LPDDR5X SDRAM |
| Memory Speed | 7467 MHz |
| Memory Form Factor | Onboard |
| Storage Type | Solid State Drive |
| Storage Capacity | 512 GB |
| Drive Features | Class 40, NVM Express (NVMe) |
| SSD Form Factor | M.2 2280 |
| Drive Interface | PCIe 4.0 x4 |
| Graphics Processor | NVIDIA RTX 2000 Ada |
| Video Memory | 8 GB GDDR6 SDRAM |
| Graphics Form Factor | Discrete |
| Wireless LAN | Yes |
| Wireless Connectivity | 802.11 a/b/g/n/ac/ax/be Wi-Fi (Wi-Fi 7) |
| Bluetooth | Yes |
| Wireless Features | Dual Stream (2x2), MU-MIMO |
| Wireless Controller | Intel Wi-Fi 7 BE200 |
| Slots | 2 x M.2 Card (1 Free) |
| Interfaces | 1 x HDMI, USB-C 3.2 Gen 2 (DisplayPort 1.4 Alt Mode), 2 x USB4 (Thunderbolt 4, DisplayPort 1.4 Alt Mode, Power Delivery), Headphone/microphone Combo Jack |
| Front Camera / Webcam | Yes |
| Fingerprint Reader | Yes |
| Webcam | Yes |
| Camera Frame Rate | 30 fps |
| Camera Resolution | 1920 x 1080 (Standard), 640 x 360 (Infrared) |
| Camera Video Resolution | 1920 x 1080, 640 x 360 |
| Image Sensor Type | CMOS |
| Camera Features | HDR (High Dynamic Range), IR/RGB camera, Temporal Noise Reduction, 80deg FOV, Express Sign-In, Intelligent Privacy, 80.6deg (IR camera) |
| Audio Input Type | Dual-array Microphone |
| Compliant Standards | FCC, FIPS 140-2, TCG Certified |
| Built-in Speakers | 2 x Woofers, 2 x Tweeters |
| Built-in Microphone | Yes |
| Audio Features | Waves MaxxAudio 13, 2 x Woofers & 2 x Tweeters, Dual-Array Microphones in Camera Assembly, Universal Audio Port |
| Case Material | Aluminum, Resin |
| Security Slot Type | Kensington Security Slot |
| Lock Slot | Wedge-shaped Lock Slot (1) |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Input Device Features | AI Hotkey, Haptic Touchpad |
| Sensor Types | Accelerometer, Ambient Light Sensor, Hall Sensor, Infrared Proximity Sensor |
| Keyboard | Backlit Keyboard |
| Pointing Device | Touchpad |
| Backlit | Yes |
| Battery Type | 6-cell |
| Battery Chemistry | Lithium-ion |
| Battery Capacity | 99.5 Watthour |
| Power Supply Type | 100 Watts Power Adapter |
| Power Input | AC 100-240 Volts (50/60 Hertz) |
| Power Output | 165 Watts, 5 / 9 / 15 / 20 / 28 Volts |
| Shock Acceleration (Non-operating) | 160 g |
| Shock Acceleration (Operating) | 110 g |
| Shock Duration (Non-operating) | 2 Millisecond Half-sine Pulse |
| Shock Duration (Operating) | 2 Millisecond Half-sine Pulse |
| Vibration Acceleration (Non-operating) | 1.3 g |
| Vibration Acceleration (Operating) | 0.66 g |
| Vibration Frequency Range (Non-operating) | RMS (random) |
| Vibration Frequency Range (Operating) | RMS (random) |
| Operating System Language | English, Spanish, French, Portuguese (BR) |
| Operating System | Windows 11 Pro |
| Software Type | Microsoft 365 (30-day trial), Dell Additional Software, Intel Rapid Storage Technology |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | Yes |
| EPEAT Level | EPEAT Gold |
