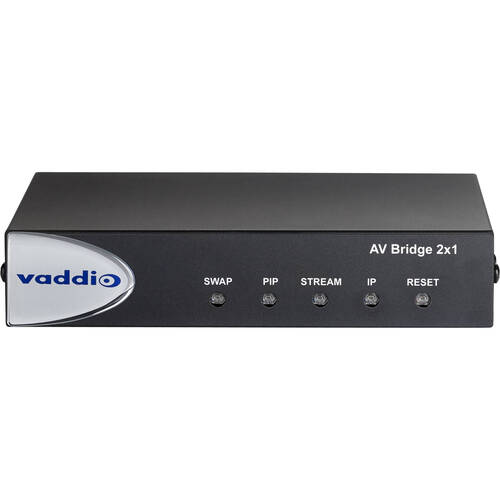

Vaddio 999-8250-000 Dual-HDMI Input Rackmountable AV Bridge

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Vaddio 999-8250-000 Dual-HDMI Input Rackmountable AV Bridge - 4x4 Dante Audio Matrix - TAA Compliant

Ideal for conferencing and lecture capture applications, AV Bridge 2x1 combines networked audio and video mixing functionality into a single device. AV Bridge 2x1 is the classroom-in-a-box solution because it enables simple distribution, production, and capture of high-quality networked Dante audio, analog audio, and two HD video sources. Two HDMI inputs allow you to connect either two cameras or a camera and PC display on a platform that easily switches between sources and delivers useful picture-in-picture (PIP) video streams. Concurrent 1080p USB 3.0, HDMI, and IP streaming allow for flexible video distribution. Use the AV Bridge 2x1 to simultaneously record to a local PC, magnify the speaker video through a room projector, and stream the lecture to popular online platforms - without the need for special drivers or additional applications. The AV Bridge 2x1 has robust audio mixing capabilities as well. A 4x4 Dante I/O allows for scalable networked audio to meet the needs of any application. Install the AV Bridge 2x1 in your existing classroom designs by utilizing the 2-channel analog audio I/O and adding in new HD video sources. Experience worry-free presentations with the automation features built into the AV Bridge 2x1. Connect Vaddio trigger devices like contact closure type devices to recall a library of macros built into the web-based user interface. Control PIP settings, video sources, camera position presets and more with intuitive API integration for third party applications and control hardware. Available PIP layouts include side by side, top bottom, and your choice of four corner inset. Store graphic overlays such as a company logo or speaker name to add production quality to everyday events. The AV Bridge 2x1 is excellent for videoconferencing applications. Participate with crystal clear audio through built-in echo cancellation, ensuring both sides of the conversation are heard without annoying feedback issues common with inexpensive audio devices. The AV Bridge 2x1 is the must-have device you need for simple, reliable multi-camera installations.

Model Number	999-8250-000
Product Name	Vaddio 999-8250-000 Dual-HDMI Input Rackmountable AV Bridge
Product Type	AV Bridge
Color	Black
3rd Party Control	RS232, Telnet, Trigger
Browser-based User Interface for Remote Control	Built-in
Control Method	RS232
Input Ports	Audio, HDMI, Line Level Audio, Mic Level Audio, Network, RS232, USB 3.0
Max Resolution	1080p 60
Output Ports	HDMI, IP Streaming, Network, USB 3.0 Type B
Power Cord	US Cord
Power Supply	PoE+ Midspan Power Injector
Power Type	PoE+
Quick-Connect Compatibility	QCCU, QDVI
Signal Type	Audio, Dante Audio, HDMI, IP Streaming, RS 232, USB 3.0
Special Features	Audio IO, IP Streaming, PIP
TAA Compliant	Yes
Certifications	CE, FCC, TAA
Dimensions	Height 1.72 x Width 8.38 x Depth 6 inches
Weight	2.65 lbs.
IP Streaming	RTSP or RTMP up to 1080p30
Serial Communication	Vaddio ASCII Command Protocol
Audio Input	2 x 3-Pin Terminal Block, Mic/Line Input
Audio Output	2 x 3-Pin Terminal Block, Mic/Line Output
Phantom Power	48 VDC, 10 mA
Compatibility	Vaddio The Classrom
