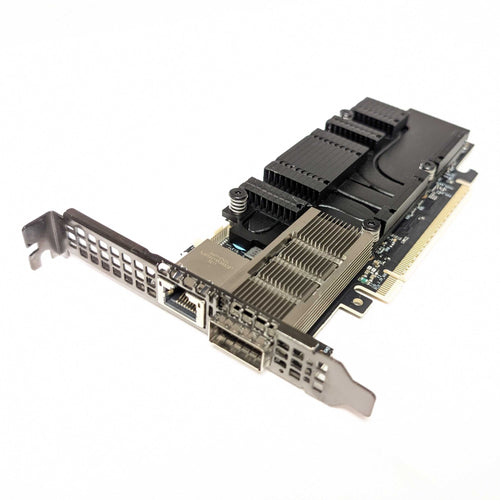

NVIDIA BlueField-3 (Nvidia 900-9D3D4-01EN-HA0) E-Series B3140H DPU

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

NVIDIA BlueField-3 E-Series B3140H KK4NR 900-9D3D4-01EN-HA0 Single-Port SuperNIC DPU - 400GbE QSFP112 - RJ-45 BMC - PCIe 5.0 x16 - Crypto Enabled - HHHL with Full Height Bracket

The BlueField-3 SuperNIC is an advanced network NVIDIA BlueField-3 DPU accelerator, purpose-built for supercharging hyperscale AI workloads. Designed for network-intensive, massively parallel computing, the BlueField-3 SuperNIC provides up to 400Gb/s of remote direct-memory access (RDMA) over Converged Ethernet (RoCE) network connectivity between GPU servers, optimizing peak AI workload efficiency. Creating a new era of AI cloud computing, the BlueField-3 SuperNIC enables secure, multi-tenant data center environments with deterministic and isolated performance between jobs and tenants.

Model Number	B3140H
Product Name	NVIDIA BlueField-3 (Nvidia 900-9D3D4-01EN-HA0) E-Series B3140H DPU
Product Type	Network Card
Form Factor	HHHL Card with Full Height Bracket
Single-Slot HHHL Card Dimensions	68.90mm x 167.65mm
Tall Bracket Dimensions	120.5 x 21.95mm
Heatsink Dimensions	139.6mm x 92.7mm x 10.2mm (Length, Width, Height)
BlueField-3 SoC	BlueField-3 E-Series -8 Arm-Cores - 505MHz/2000MHz
On-board Memory	Single-channel with 10 DDR5 + ECC (64bit + 8bit ECC) for a total of 16GB @ 5200MT/s
PCI Express Interface	Gen 5.0 SERDES @ 32.0GT/s, 16 lanes (4.0, 3.0, 2.0 and 1.1 compatible)
Networking Connector	Single-port QSFP112 (copper and optical)
BMC	1 GbE out-of-band management port (RJ-45)
InfiniBand	IBTA v1.5 (when connected to another NVIDIA InfiniBand product) Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)
Ethernet (Default)	400/200/100/50/25/10 Gb/s
Ethernet	400GAUI-4 C2M, 400GBASE-CR4 , 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
Voltage	12V
Power Supply Requirement	A minimum of 75W system power supply through the PCIe x16 interface
Temperature	Operational: 0C to 55C
Humidity	Operational: 10% to 85% relative humidity
Altitude (Operational)	3050m
Safety	CB / cTUVus / CE
EMC	CE / FCC / VCCI / ICES / RCM
RoHS	RoHS compliant
Regulatory Model Number	D3D4
Also known as	Nvidia 900-9D3D4-01EN-HA0
