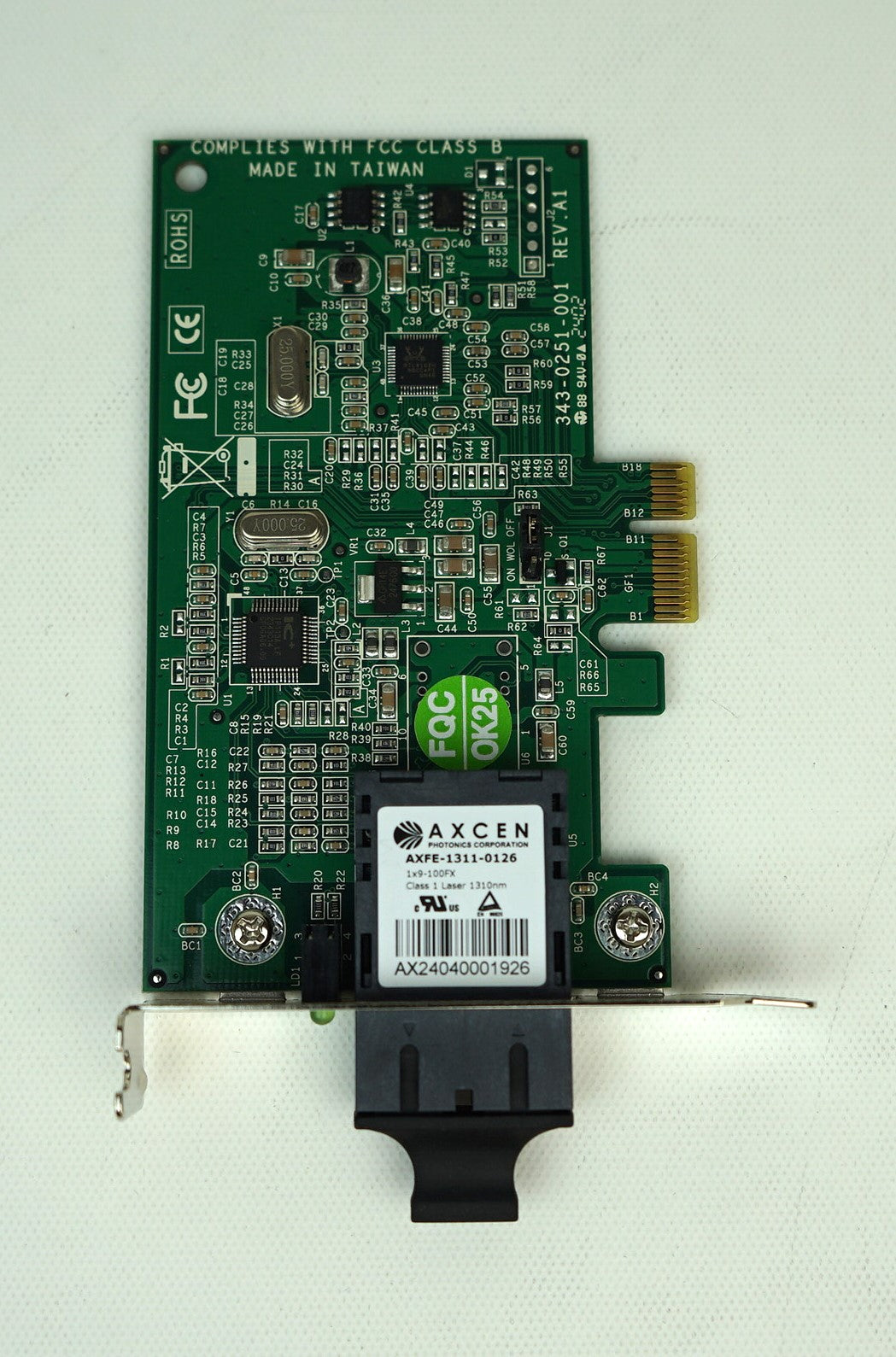

Lantronix N-FXE-SC-02B 100 Base-FX Fast Ethernet Fiber Network Interface Card With WOL Power Management - IEEE 802.3X - IPV6 Capable - 1x PCI Express - 1300 Nanometer - Full Duplex Flow Control - Multi Mode - TAA Compliant

N-FXE-02B Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment. The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption. For users equipped with PCI-Express systems, N-FXE-02B Series provides the ability to easily build or connect to Fast Ethernet fiber

Model Number	NFXESC02B
Product Name	Lantronix N-FXE-SC-02B 100 Base-FX Fast Ethernet Fiber Network Interface Card With WOL Power Management
Product Type	Network Interface Card
Host Interface	PCI Express 1.1
Media Type Supported	Optical Fiber
Maximum Data Transfer Rate	200 Mbps
Fiber Mode Supported	Multi-mode
Network Technology	100 Base-FX
Form Factor	Plug-in Card
Device Supported	Server
Standards	IEEE 802.3u, IEEE 802.3x, IEEE 802.1P, IEEE 802.1Q
Status LED	LINK/ACT (Link/Activity): ON = communication link; FLASHING = activity on link, FDX (Full-duplex): ON = Full-duplex link
Software Support	Windows 2003, 2008, 2012, Windows XP, Vista, Linux 2.4.x, 2.6.x, Novell Netware 5.x, 6.x, Windows 7, 8, 10, 11
Boot Server Support	PXE Boot ROM
Power Consumption	1.2 Watts (max), +3.3 Volts DC @ 0.7 Amps
Certifications	EMI Standard, FCC Class B, CE Mark, RoHS
Dimensions	Depth: 4.25 x Height: 2.70 inches
Weight	1 lbs.
