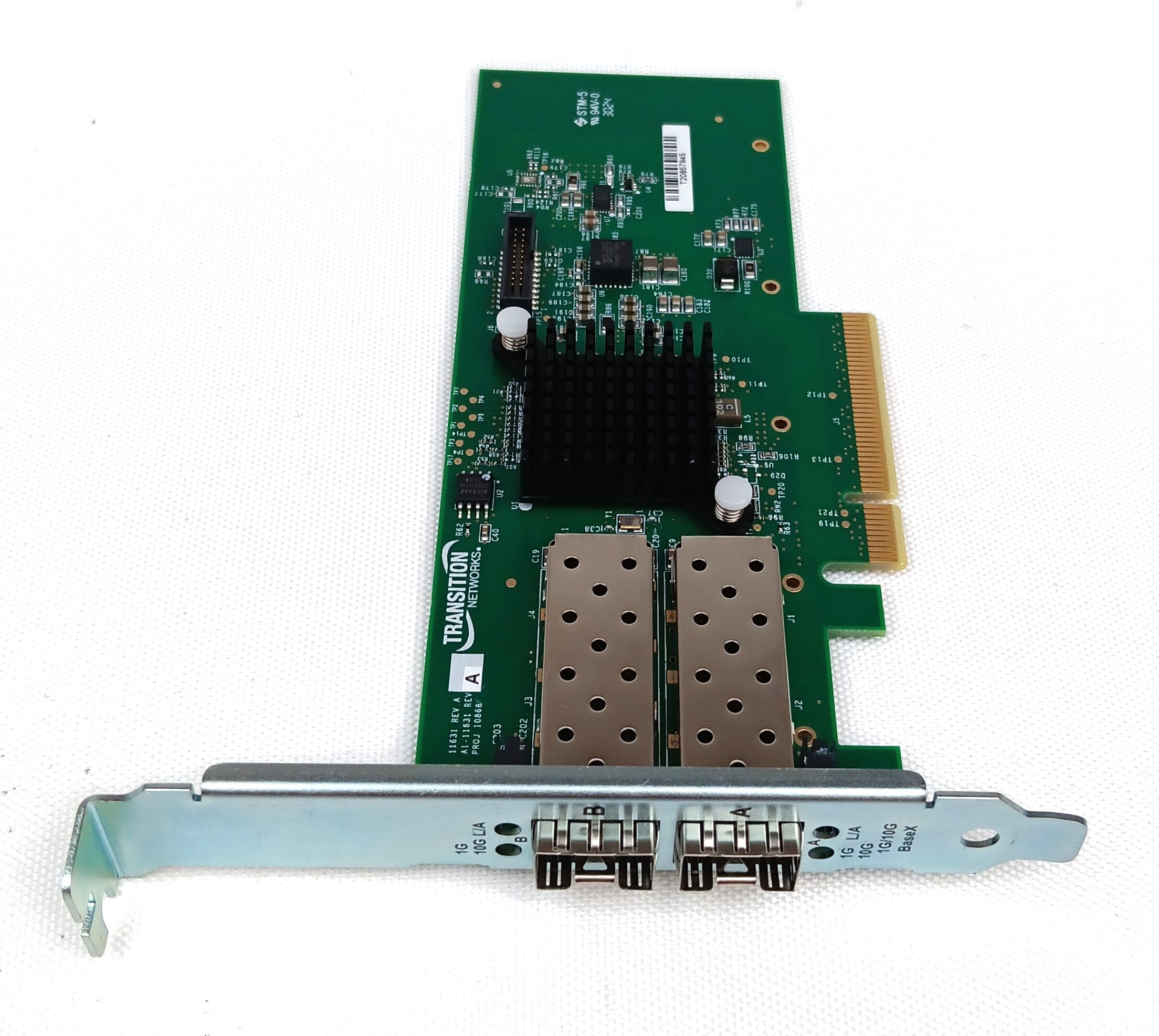

Lantronix N-TGE-SFP-02 Network Interface Card

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Lantronix N-TGE-SFP-02 Network Interface Card - Dual Port - PCI Express - 10 Gigabit Ethernet Fiber

The N-TGE-SFP-02 is a Fiber 10Gigabit Ethernet to PCIe bus adapter that supports a 1Gbps/10Gbps link and fully complies with IEEE 802.z and 802.3ae standards. The open SFP slots can be used with 1000Base-X SFPs or 10GBase-SR/LR SFP+ modules. The NIC provides up to 20 Gbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation and smart load balancing, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. The NIC is suitable for high resolution or high speed data transfer, fiber-to-the-desk, data center, SMB and cloud computing applications. Two LED indicators (LINK/ACT and SPEED) per port on the bracket will help to oversee the board link, activity status and connection speed.

Model Number	N-TGE-SFP-02
Product Name	Lantronix N-TGE-SFP-02 Network Interface Card
Product Type	Network Interface Card
Bus Slot	PCIe 3.0 x8
Cable	Fiber (multimode): 0/125,62.5/125mm, Fiber (single mode): 9/125mm
Data Rate	10 Gbps: 14,880,000 pps, 1 Gbps: 1,190,476 pps
Status LEDs	LINK/ACT (Link/Activity): On = communication link, Flashing = activity on link, Off = link fail, SPEED: On = 10G, Off = 1G
Standards	IEEE 802.3-2008, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p
Software Support	Windows 10 Professional, Windows 8 Professional, Windows 7 Professional, Windows Server 2008 R2, Windows Server 2019, Windows Server 2016, Windows Server 2012 and 2012 R2, Linux Support
Power Consumption	2.5 Watts without SFPs
MTBF	4636228 Hours
Certifications	EN 55032-2012/AC:2013 FCC 47 CFR Part 15 Subpart B ISED ICES-003 Issue 6:2016, Updated April 2019 Class B, EN 55024:2010/A1:2015, EN 61000-3-2:2014 (<16A), EN 61000-3-3:2013 (16A), CE Mark
Features	High bandwidth 10Gbps network speed, Supports 1Gbps SFPs with DMI, Supports IEEE 802.3x Full-Duplex flow control, IPv4 and IPv6, Compliant with PCIe 3.0x8 interface, Supports Jumbo Frames - 9014 and 4088 byte options in Windows>Advanced Properties tab, Supported transmission distance based on the SFP/SFP+ modules and fiber type used (1Gbps SFP modules must support DMI), Supports IEEE 802.3ad Link Aggregation (LACP), IEEE 802.1Q VLAN support, IEEE 802.1p QoS, Checksum offload (IP/TCP/UDP), Teaming, Adapter Fault Tolerance (AFT), Adaptive Load Balancing (ALB), IEEE 802.3ad Dynamic Link Aggregation
Media Type Supported	Optical Fiber
TAA Compliant	Yes
Expansion Slot Type	SFP+
Network Technology	10GBase-SR/LR
Form Factor	Plug-in Card
Environmental Certification	RoHS
Device Supported	Server
Dimensions	Width 2.525 x Depth 6.173 x 0.75 Height Inches
Weight	0.55 lbs.
