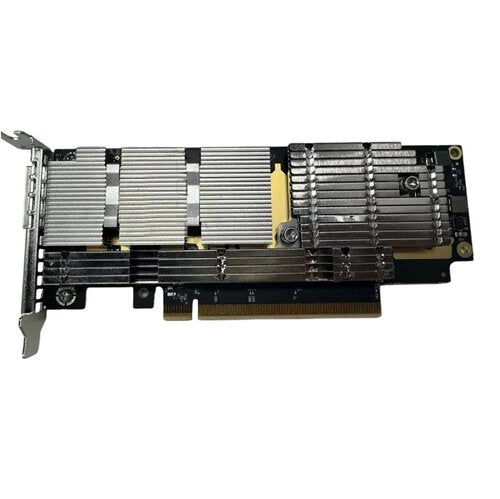

Nvidia ConnectX-7 MCX75310AAS-HEAT Ethernet Adapter Card
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
The NVIDIA ConnectX-7 NDR 400 gigabits per second (Gb/s) InfiniBand host channel adapter (HCA) provides the highest networking performance available to take on the world's most challenging workloads. The ConnectX-7 InfiniBand adapter provides ultra-low latency, 400Gb/s throughput, and innovative NVIDIA In-Network Computing engines to deliver the acceleration, scalability, and feature-rich technology needed for high performance computing (HPC), artificial intelligence (AI), and hyperscale cloud data centers. High performance computing and artificial intelligence have driven supercomputers into wide commercial use as the primary data processing engines enabling research, scientific discoveries and product development. These systems can carry complex simulations and unlock the new era of AI, where software writes software. NVIDIA InfiniBand networking is the engine of these platforms delivering breakthrough performance. ConnectX-7 NDR InfiniBand smart In-Network Computing acceleration engines include collective accelerations, MPI Tag Matching and All-to-All engines, and programmable data path accelerators. These performance advantages and the standard guarantee of backward- and forward- compatibility ensure leading performance and scalability for compute and data-intensive applications and enable users to protect their data center investments.
| Model Number | MCX75310AAS-HEAT |
| Product Name | Nvidia ConnectX-7 MCX75310AAS-HEAT Ethernet Adapter Card |
| Product Type | Adapter Card |
| Interfaces | PCI Express Interface: Gen 4.0/5.0: Serdes @ 16/32 Gtps, x16 Lanes (Gen 3.0 Compatible) |
| Networking Port | Single OSFP Infiniband And Ethernet |
| Infiniband Modes | NDR 200/HDR/HDR 100/EDR/FDR/SDR |
| Ethernet Speeds | 200/100/50/40/10/1 Gbps Ethernet |
| Infiniband Standard | Ibta V1.5a |
| Auto?negotiation | NDR 200 (2 Lanes x 100 Gbps Per Lane) Port, HDR (50 Gbps Per Lane) Port, HDR 100 (2 Lanes x 50 Gbps Per Lane), EDR (25 Gbps Per Lane) Port, FDR (14.0625 Gbps Per Lane), 1x/2x/4x SDR (2.5 Gbps Per Lane) |
| Ethernet Standards | 200 Gaui-4 C2m, 200 GBase-cr4, 100 Gaui-2 C2m, 100 GBase-cr4, 100 GBase-cr2, 100 GBase-cr1, 50 Gaui-2 C2m, 50 Gaui-1 C2m, 50 GBase-cr, 50 GBase-r2, 40 GBase-cr4, 40 GBase-r2, 25 GBase-r, 10 GBase-r, 10 GBase-cx4, 1000 Base-cx, Caui-4 C2m, 25 Gaui C2m, Xlaui C2m, Xlppi, SFI |
| Capabilities | Secure Boot Enabled, Crypto Disabled |
| Voltage | 12 Volts, 3.3 vaux |
| Maximum Current | 100 Milliamps |
| Form Factor | Stand Up |
| Bracket Height | HHHL |
| Application / Usage | Network, Data Center |
| Operating System Compatibility | Windows, Ubuntu Linux |
