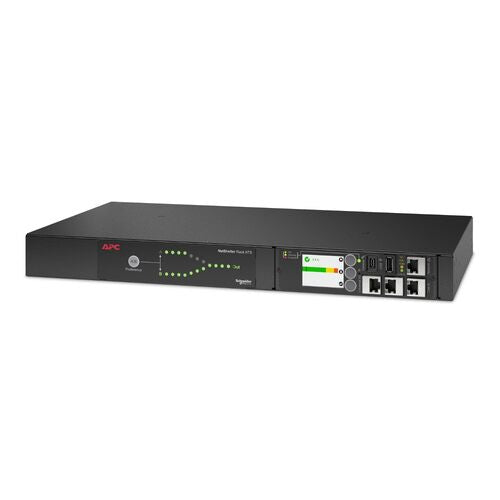

APC Netshelter AP4434A Rack Automatic Transfer Switch

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

APC Netshelter AP4434A Rack Automatic Transfer Switch - Black - 1U - 20 Amps - 208 Volts - Single-Phase - 50/60 Hertz - INPUT: 2 x C20 - OUTPUT: 8X IEC 60320 C13 1X IEC 60320 C19

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Model Number	AP4434A
Product Name	APC Netshelter AP4434A Rack Automatic Transfer Switch
Product Type	Automatic Transfer Switch
Color	Black
Main Input Voltage	208 Volts AC 1 Phase
Input Current Limits	20 Amps
Input Frequency	50/60 Hertz
Main Output Voltage	208 Volts AC 1 Phase
Output Voltage	208 Volts
Input Connection Type	IEC 60320 C20 16 A 2P+E
Load Capacity	3300 VoltAmps
Line Rated Current	20 Amps
Permissible Voltage	187...228 Volts
Maximum Total Current Draw per Phase	20 Amps
Maximum Line Current	20 Amps
Protection Type	Without Circuit Breaker
Number of Rack Unit	1U
Cable Length	7.97 Feet (2.43 Meter)
Cord Length	8.005 Feet (2.44 Meter)
Provided Equipment	Mounting Hardware, Rack Mounting brackets
Mounting Location	Front, Rear
Mounting Mode	Rack-mounted
Mounting Position	Horizontal
Dimensions	Height 1.7 x Width 17.008 x Depth 9.3 Inches
Weight	8.25 lbs.
