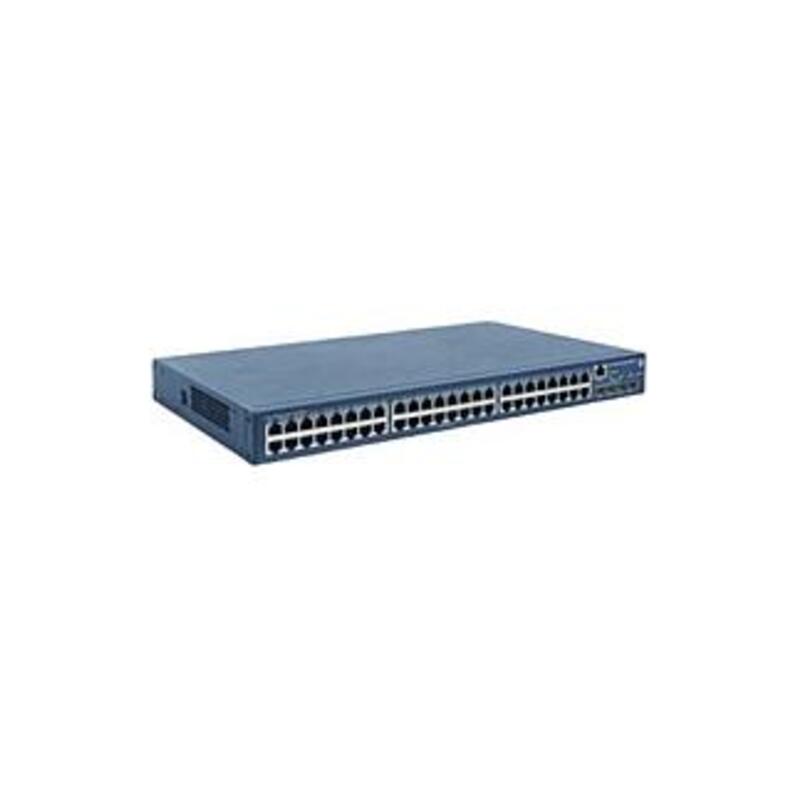

HP FlexNetwork 5120 SI 5120 48G SI Layer 3 Switch

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

HP 5120 48G SI Switch - 48 Network, 4 Expansion Slot - Manageable - Twisted Pair, Optical Fiber - Modular - 3 Layer Supported - 1U High - Rack-mountable

The HPE FlexNetwork 5120 SI Switch Series are Layer 2 switches that support stacking, static Layer 3 routing, PoE+, ACLs and IPv6. They are campus switches ideal for medium and large enterprise networks.

HPE Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing four switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity. The FlexNetwork 5120 SI Switch Series can be managed with HPE Intelligent Management Center (IMC) Software for a single view of your entire network.

Features

Managed Access Layer Switches

The HPE FlexNetwork 5120 SI Switch Series is ideal for medium and large enterprises looking for a traditional, scalable, fully managed Layer 2 access switch with static IP routing, PoE+, ACLs, IPv6, and support for stacking.

The HPE Intelligent Resilient Framework (IRF) virtualizes up to four physical switches into one logical device for simpler, flatter, more agile networks.

PoE+ models support up to 370 W of PoE/PoE+ power for phones, cameras and wireless access points; up to 720 W available on the 24-port model with optional accessories.

Right size deployment with 8-, 16-, 24-, and 48-port gigabit Ethernet models that include up to 4 SFP ports for fiber uplinks.

Advanced Quality of Service (QoS)

The HPE FlexNetwork 5120 SI Switch Series delivers a better application experience with classifier-based QoS using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per port basis.

Network traffic prioritization with multiple congestion methods include: strict priority (SP) queuing, SDWRR, and SP+WRR.

Security Control

The HPE FlexNetwork 5120 SI Switch Series supports hardware-based wire-speed access control lists (ACLs) for enhanced security and ease of administration without impacting network performance.

RADIUS/HWTACACS, SSL, Port Security, and 802.1x and MAC-based authentication deliver enhanced security.

Single View of the Network

The HPE FlexNetwork 5120 SI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

Remote Network Monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Product Line	FlexNetwork
Product Series	5120 SI
Model Number	5120 48G SI
Product Name	HP FlexNetwork 5120 SI 5120 48G SI Layer 3 Switch
Packaged Quantity	1
Product Type	Layer 3 Switch
Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Port/Expansion Slot Details	4 x Gigabit Ethernet Expansion Slot
Media Type Supported	Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Number of Total Expansion Slots	4
Expansion Slot Type	SFP
Shared SFP Slot	No
Number of SFP Slots	4
Layer Supported	3
Manageable	Yes
Power Source	Power Supply
Redundant Power Supply Supported	No
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	10.2"
Weight (Approximate)	11.02 lb
Environmentally Friendly	Yes
Environmental Certification	RoHS
