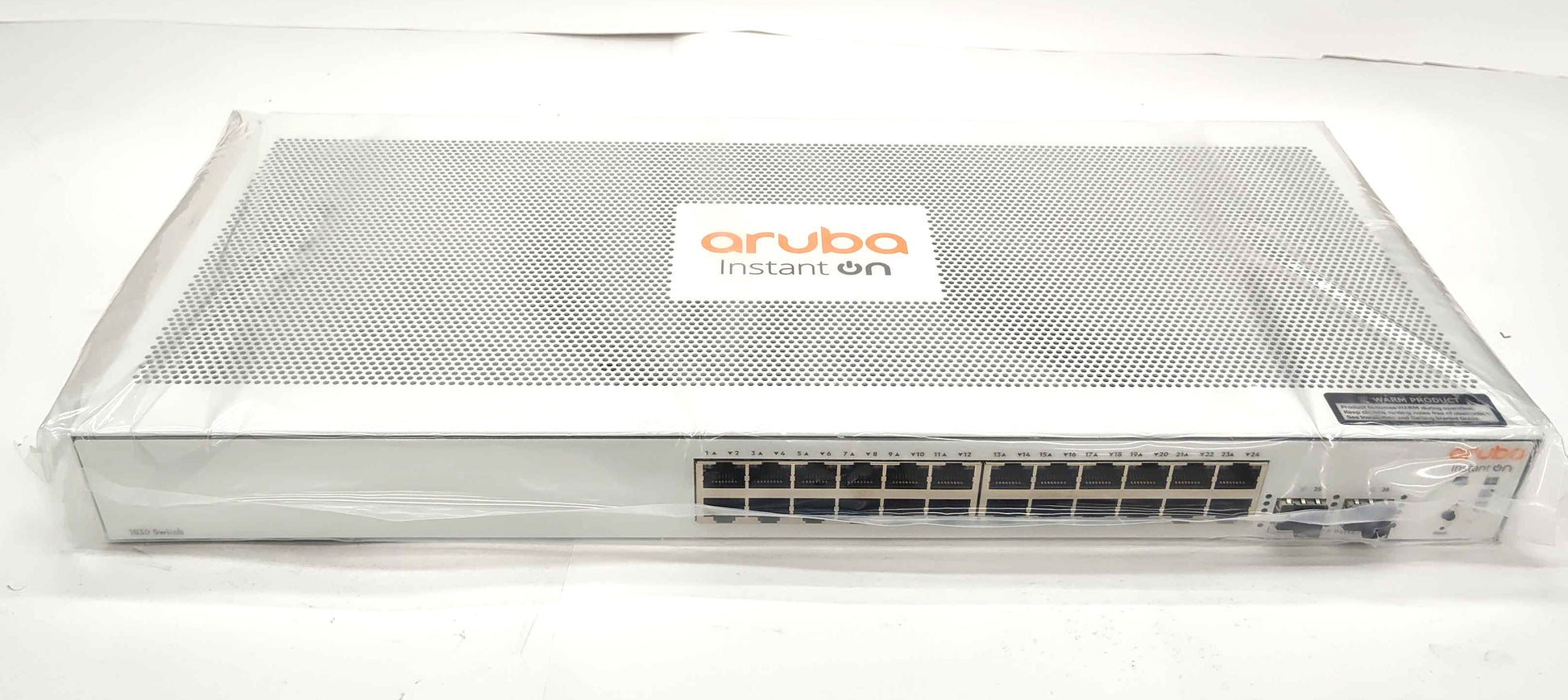

HP JL812A Aruba Instant On 1830 Networking Switch
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets. HPE Networking Instant On Switch 1830 is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Class 4 PoE models. Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices. 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available. The HPE Networking Instant On Switch 1830 series features easy-to-use, out-of-the-box, plug-and-play deployment. The switches can be deployed using two management modes - HPE Networking Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling. The HPE Networking Instant On Switch 1830 series is enhanced with security features such as VLANs, automatic Denial-of-service protection, Global Storm Control, and TPM (Trusted Platform module) based security to guard your network from unwanted or unauthorized access. Global Storm Control protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic. Includes a Trusted Platform Module (TPM) for protected hardware-based generation and storage of cryptographic keys used for connection to the HPE Networking Instant On cloud portal. The HPE Networking Instant On Switch 1830 series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity. Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption. Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments. PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).
| Model Number | JL812A |
| Product Name | HP JL812A Aruba Instant On 1830 Networking Switch |
| Product Type | Networking Switch |
| Power Consumption | 100-127Voltage : 19.1Watts 200-220Voltage : 19Watts : Idle: 100-127Voltage: 7.6Watts 200-220Voltage: 7.8Watts |
| Input Voltage | 100 - 240 VAC |
| Ports | 24 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports |
| Switching capacity | 52 Gbps |
| Throughput | 38.68 Mpps |
| Memory and Processor | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Layer Services Supported | Layer 2 |
| Supported Protocols | Link Aggregation, Port Mirroring, Auto-MDIX/MDI, IGMP Snooping |
| MAC Address Table Size | 16K |
| Security Features | DoS Attack Prevention, Storm Control |
| Power Supply Type | Internal |
| Cooling System | Passive |
| Mean Time Between Failures (MTBF) | 1.7 Million Hours |
| Material of Construction | Metal |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 U |
| Dimensions | 8.50 x 17.44 x 1.73 inches |
| Weight | 5.50 lbs. |
