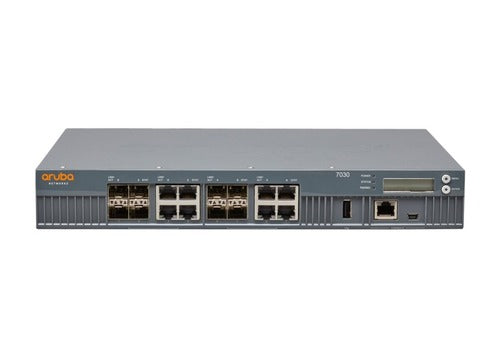

HP Aruba 7030 JW687A Wireless LAN Controller
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
Designed primarily for small to mid-sized campuses, the Aruba 7030 Mobility Controller helps to enhance WLAN performance by centralizing control functionality for up to 64 licensed access points, supporting up to 4096 concurrent users or client devices. In addition to featuring eight Gigabit speed RJ45 / SFP combo ports, this controller supports Wi-Fi 6E (802.11ax) standards with WPA3 and Enhanced Open security and provides improved AP utilization, security, and client roaming. Dynamic segmentation simplifies and secures your network by enforcing both wired and wireless access policies. Additionally, the 7030 Mobility Controller offers awareness for over 3000 applications without additional hardware while built-in AI features automatically optimize wireless performance. The 7030 Mobility Controller provides connectivity for up to 4096 concurrent users or client devices, 64 access points, and over 64,000 active firewall sessions. With up to 8 Gbps of throughput to perform Policy Enforcement Firewall (PEF) features, the 7030 is ideal for mid-size campuses and branches. When deployed with Aruba Mobility Conductor, the 7000 Series can be joined to a controller cluster to increase scale, improve reliability using High Availability (HA), adopt configurations seamlessly based on hierarchy, support Live Upgrades to reduce maintenance windows, and share licenses from a global licensing pool. The Wi-Fi 6 and Wi-Fi 6E standards bring enhanced performance, speed, and efficiency with key features such as OFDMA and bidirectional MU-MIMO. Combined with Aruba's ClientMatch technology, 802.11ax clients will now be grouped together to optimize the multi-user experience. Support for WPA3 brings stronger encryption and authentication methods, while Enhanced Open brings automatic security to open networks. The new WPA2-MPSK feature enables simpler passkey management for WPA2 devices. Should the Wi-Fi password on one device need to be changed, no additional key changes are needed for other devices on the network. To simplify and better secure wired and wireless network access, the 7000 Series can enforce per-user and device roles across wired and wireless networks by integrating with ClearPass Policy Manager. This ensures consistent policy regardless of user role and device type, and eliminates the need to configure unnecessary SSIDs, ACLs, VLANs, and subnets at every node in the network. Wired and wireless user and application traffic can be tunneled to a stateful firewall through GRE tunnels for inspection. Policies are then enforced based on user role, device type, application, and location. This is enabled by the Aruba Policy Enforcement Firewall (PEF) add-on license. As part of the PEF, application visibility with Deep Packet Inspection (DPI) technology evaluates and optimizes performance and Quality of Service policies for over 3000 applications, even for encrypted or hidden traffic. WebCC is an add-on subscription-based feature that classifies websites by content category and rates them by reputation. It can also block, apply QoS, bandwidth-limit, mirror, and log web content. Visualize and troubleshoot networks based on call quality metrics such as MOS, latency, jitter and packet loss. Supported applications include Teams, Skype for Business, Wi-Fi Calling, Facetime, SIP, Jabber, Spark, and more. The 7000 Series can be factory-shipped and deployed onsite with cloud-based Aruba Activate. For network-specific requirements, settings can be applied based on hierarchical configuration. With support for IPSec/SSL VPNs, Aruba Remote APs (RAPs) and Aruba VIA VPN users can establish encrypted sessions without any additional hardware required.
| Model Number | JW687A |
| Product Name | HP Aruba 7030 JW687A Wireless LAN Controller |
| Product Type | LAN Controller |
| Compatible Part Numbers | ARCN7030 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Adaptive Radio Management (ARM), Auto-negotiation, ClientMatch, IPv4 support, IPv6 support, RFProtect, VPN support |
| Form Factor | Rack-mountable |
| Status Indicators | Link/activity, Status |
| Interface Provided | 1 x console - RJ-45, 1 x management (USB), 1 x USB 2.0 - Type A, 8 x 1000Base-T - RJ-45, 8 x Ethernet 1000 - SFP (mini-GBIC) |
| Power Consumption Operational | 55 watts |
| Built-in Device | Status LCD |
| MTBF | 390679 Hours |
| Capacity | Active firewall sessions: 65536, Concurrent devices: 4096, Concurrent GRE tunnels: 2048, Concurrent IPSec sessions: 2048, Concurrent SSL fallback sessions: 2048, Concurrent tunneled ports: 2048, Maximum number of access points (remote): 64, Maximum number of access points: 64, Virtual interfaces (VLANs): 4094 |
| Device Type | Internal power supply |
| Network Device | 3DES throughput: 2.4 Gbps, AES throughput: 4.4 Gbps, Firewall throughput: 8 Gbps |
| Compliant Standards | ANATEL, AS/NZS 3548, CB, CISPR 22 Class B, CSA C22.2 No. 60950-1 Second Edition, C-Tick, cTUVus, EN 55024: CISPR 24:2010, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class B, FCC Part 15 B, ICES-003 Class B, IEC 60950-1 Second Edition, KCC, KN24, MIC, NOM, UL 60950-1 Second Edition, VCCI Class B |
