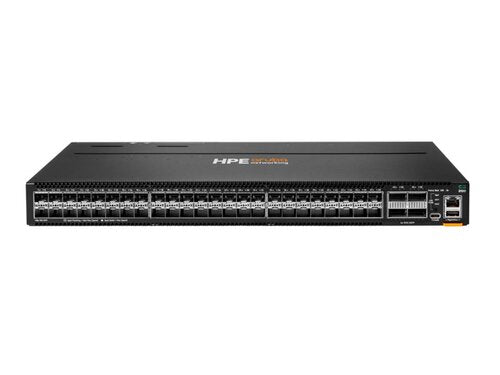

Hewlett Packard R9W90A Aruba Networking CX 8100 48XF4C Ethernet Switch
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch. The series includes industry-leading line rate ports with 1/10 GbE (SFP/SFP+) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100 G. These switches are great for customers needing 1 GbE/10 GbE with mix of fiber and copper ports.
| Model Number | R9W90A |
| Product Name | Hewlett Packard R9W90A Aruba Networking CX 8100 48XF4C Ethernet Switch With Front to Back Airflow |
| Product Type | Ethernet Switch |
| Color | Black |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 |
| Rack Unit | 1U |
| Power Consumption | 120 Watts (Idle) / 450 Watts (Max) |
| Heat Dissipation | 1535 BTU/Hour |
| Processor | Quad Core ARM Cortex-A72, 1.8 GHz |
| RAM | 16 GB |
| Flash Memory | 32 GB |
| Total Number of Expansion Slots | 52 |
| Expansion Slot Type | SFP+, QSFP28, SFP, QSFP+ |
| Number of SFP+ Slots | 48 |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network Technology | 10GBase-X, 100GBase-X |
| Layer Supported | Layer 3 |
| Networking Standards | IEEE 802.3ad, 802.1ab, 802.1Q, 802.1D, 802.1w, 802.1s, 802.1ak, 802.1AX, 802.1p, 802.1t, 802.1v, 802.3ab, 802.3ae, 802.3an, 802.3by, 802.3bz, 802.3cc, 802.3ba, 802.3cd, 802.3bj, 802.3x, 802.3z |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 120 Volts AC / 230 Volts AC |
| Power Source | AC, Power Supply |
| Number of Power Supplies Supported | 2 |
| Manageable | Yes |
| Input Voltage Range | 100-127 Volts 7.1 Amps (100-127 Volts AC), 200-240 Volts 3.4 Amps (200-240 Volts AC) |
| Switching Capacity | 1.76 Tbps |
| Enclosure Type | Front to Back Airflow Rack-mountable 1U |
| MAC Address Table Size | 147,456 Entries |
| Jumbo Frame Support | 9000 Bytes |
| Routing Protocols | BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocols | SNMP (v1/v2/v3), MIB |
| Authentication Methods | SSH, RADIUS, TACACS+, SSH2 |
| Power Device | Internal hot-plug power supply |
| Installed Power Supplies | 2 |
| Max Supported Power Supplies | 2 |
| Localization | English / United States |
| Operating System Required | AOS-CX |
| Form Factor | Surface Mount, Cabinet Mount, Rack-mountable, Compact |
| Features | Layer 2 Switching, Port Mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, OSPF, NTP, Policy-Based Routing, RPVST+, UDLD, Layer 3 Routing, ARP, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4 |
| Environmental Compliance | RoHS (Restriction of Hazardous Substances) |
