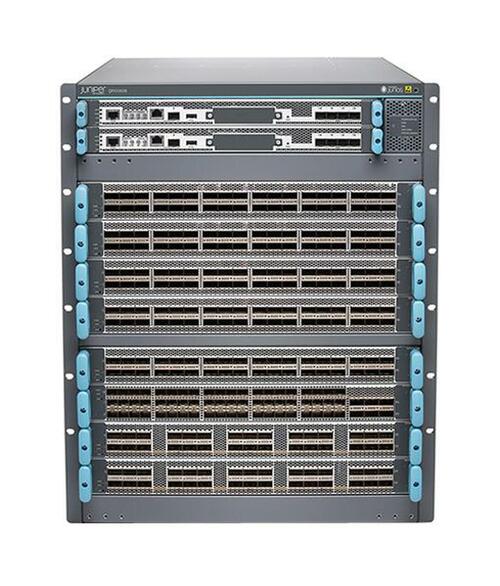

Juniper Networks QFX Series QFX10008-REDUND-T Network Switch

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

Juniper Networks QFX Series QFX10008-REDUND-T Network Switch - TAA-Compliant Chassis - Rack Mountable - 32 GB RAM - 8 Slots - Hot-Plug - JUNOS - Gray

The QFX10000 line of modular data center spine and core Ethernet switches deliver industry-leading scale, flexibility and openness, with a design that enables the seamless transition from 10GbE and 40GbE interface speeds to 100GbE and beyond. These high-performance, forward-looking switches are designed to help cloud and data center operators extract maximum value and intelligence from their network infrastructure well into the future.

Model number	QFX10008-REDUND-T
Product Name	Juniper Networks QFX Series QFX10008-REDUND-T Network Switch
Product Type	Network Switch
Color	Gray
Airflow Direction	Front to back airflow
Built-in Devices	50 GB SSD
Processor	Intel
Clock Speed	2.5 GHZ
Installed RAM	32 GB
Performance	Bandwidth per slot: 7.2 Tbps, Forwarding performance: 16 Bpps, Throughput: 48 Tbps
Capacity	ARP entries: 256000, Equal-Cost Multipathing (ECMP) ways: 64, GRE tunnels: 4096, IPv4 forwarding information base (FIB): 256000, IPv4 routes (Multicast): 128000, IPv4 routes: 2000000, IPv6 forwarding information base (FIB): 256000, IPv6 routes (Multicast): 128000, IPv6 routes: 2000000, Queues per port: 8, Virtual interfaces (VLANs): 16000, Virtual output queues: 384000
Subcategory	Network hubs and switches
Form Factor	Rack-mountable
Advanced Switching	Layer 3
Routing Protocol	BGP-4, Bidirectional Forwarding Detection (BFD), Bidirectional PIM, CIDR, ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
MAC Address Table Size	1M Entries
Jumbo Frame Support	9216 bytes
Manageable	Yes
Remote Management Protocol	CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Network Features	Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), Data Center Bridging Exchange (DCBX) support, DHCP relay, DHCP server, DiffServ support, DoS attack prevention, EVB Type-Length-Value (TLV), Explicit Congestion Notification (ECN), Fan tray, FCoE support, Front to back airflow, Graceful Route Engine Switchover (GRES), ICMP Router Discovery Protocol (IRDP), IGMP proxy, IGMP snooping, Internet Control Message Protocol (ICMP), IPv4 support, IPv6 support, MACsec support, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), NTP time synchronization, Port mirroring, Precision Time Protocol (PTP), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, sFlow, sFlow v5, SNTP support, Spanning Tree Protocol (STP) support, Switch Fabric Element Redundancy, System log, Unicast Reverse Path Forwarding (URPF), Virtual Output Queuing (VOQ), VLAN Spanning Tree Protocol (VSTP), VLAN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing
Network Standards	IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3z
Interfaces	1 x Console management, 1 x Serial management, 1 x SFP management, 1 x USB 2.0, 2 x 1000Base-T RJ-45 management, 4 x SFP+
Expansion Slots	2 (Total) / 0 (Free) x Services and Routing Engine (SRE), 6 (Total) / 0 (Free) x Switching Fabric Unit, 8 (Total) / 8 (Free) x Expansion slot
Power Type	Internal power supply
Hot-Plug	Yes
Power Redundancy	Yes
Installed Quantity	6
Max Supported Qty	6
Power Provided	2700 watt
Nominal Voltage	AC 230 Volts
Power Consumption Operational	2003 Watts
OS Required	JUNOS
TAA Compliant	Yes
Height (Rack Units)	13U
Encryption Algorithm	AES, MD5
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Compliant Standards	BSMI CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EN 300386, EN 55022 Class A, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, ETSI 300 019, FCC CFR47 Part 15 A, GR-63-CORE, ICES-003 Class A, IEC 60950-1, KN22 Class A, REACH, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
Dimensions	W 17.4 x D 32 x H 22.6 Inches
Weight	321.87 lbs.
