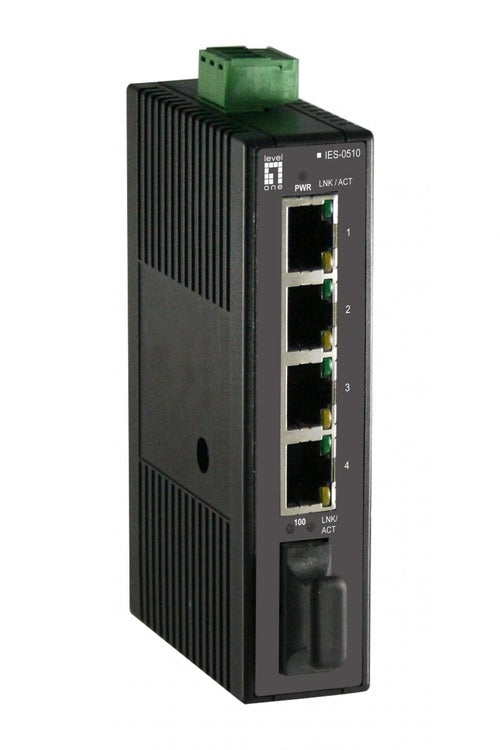

LevelOne IES-0510 5-Port Fast Ethernet Industrial Switch

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

LevelOne IES-0510 5-Port Fast Ethernet Industrial Switch - Black - DIN-Rail, 1 x SC Multi-Mode Fiber - 100Base-FX, 10, 100Base-TX - Fast Ethernet - 2 Layer Supported - 4 Fast Ethernet ports - Twisted Pair, Optical Fiber - Rail-Mountable

LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Model Number	IES-0510
Product Name	LevelOne IES-0510 5-Port Fast Ethernet Industrial Switch
Product Type	Ethernet Switch
Color	Black
Data Rate	Fast Ethernet
Concurrent Ports	5
Fanless	Yes
Grade	Industrial
Mount	DIN rail mount
Port Configuration	4 10/100 Mbps RJ-45,1 10/100 Mbps SC
Power input	Terminal block: 12 to 48 Volts DC
Compliant Standards	Plug and Play, ISO 9001, EN 61000-3-2, EN55022, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 A, IP30
Device Type	Switch - unmanaged
Enclosure Type	DIN rail mountable
Features	Store and forward, half duplex mode, full duplex mode, 384KB packet buffer, Power Polarity Reverse Protect, Overload Current Resetable Fuse
MAC Address Table Size	2048 entries
Performance	Forwarding performance: 148810 packets per second
Status Indicators	Power, link/activity
Form Factor	Rail-mountable
Power Consumption Operational	4.3 Watts
Voltage Required	DC 12 - 48 Voltage
Media Type Supported	Optical Fiber
Power Source	AC Adapter
