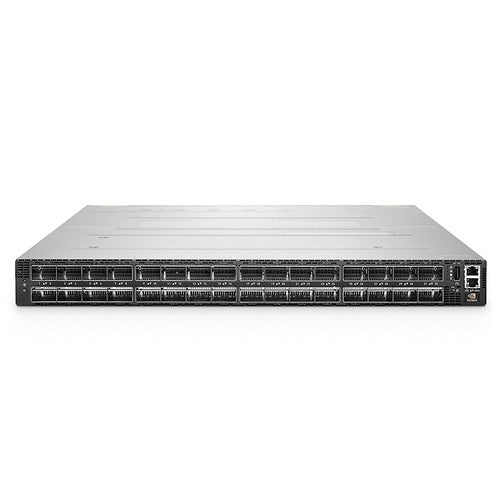

NVIDIA Mellanox Quantum 2 MQM9700-NS2F Network Switch

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

NVIDIA Mellanox Quantum 2 MQM9700-NS2F Network Switch - Black - Managed - P2C - NDR InfiniBand

NVIDIA MQM9700-NS2F Quantum 2 NDR InfiniBand Switch 64-Ports 400Gb/s 32 OSFP Ports Managed P2C Airflow (Forward) | Scaling Out Data Centers with 400G InfiniBand Smart Switches The NVIDIA Quantum-2-based QM9700 and QM9790 switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity. Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol

Model Number	MQM9700-NS2F
Product Name	NVIDIA Mellanox Quantum 2 MQM9700-NS2F Network Switch
Product Type	Network Switch
Color	Black
Ports	64x NDR 400G, 32x OSFP Connectors
Switch Chip	NVIDIA QUANTUM-2
Switching Capacity	25.6 Tbps
System Memory	Single 8GB
Storage	M.2 SSD SATA 16GB 2242 FF
Voltage	1x/2x, 200-240VAC 50/60Hz 10A
Airflow	Back-to-Front(P2C)
Typical Power Consumption	747 Watts
Max. Power Consumption	1703 Watts
AC Power Supplies	1+1 Hot-swappable
Form Factor	Rack-mountable
Manageable	Yes
Compatible Rack Unit	1U
Memory Technology	DDR4 SDRAM
Installed Memory	8 GB
Features	Adaptive routing, Congestion control, Hot swappable fan, NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), Quality of Service (QoS), RDMA support, Self-healing network, Top-of-Rack (ToR)
Remote Management	CLI, HTTP, JSON, SNMP
Interface	1 x USB 3.0 management, 1 x USB management, 2 x management RJ-45, 32 x 400Gbit LAN OSFP
Port Quantity	32
Port Type	400 Gigabit OSFP
Hot-Plug	Yes
Power Supplies Installed	2
Redundant Power Supply	Yes
Redundant Power Supply Supported	1+1
80 PLUS Certification	80 PLUS Gold
Memory Form Factor	SO-DIMM 260-pin
Compliant Standards	CB, cTUVus, CU, FCC, ICES, RCM, RoHS, VCCI
ENERGY STAR Certified	Yes
