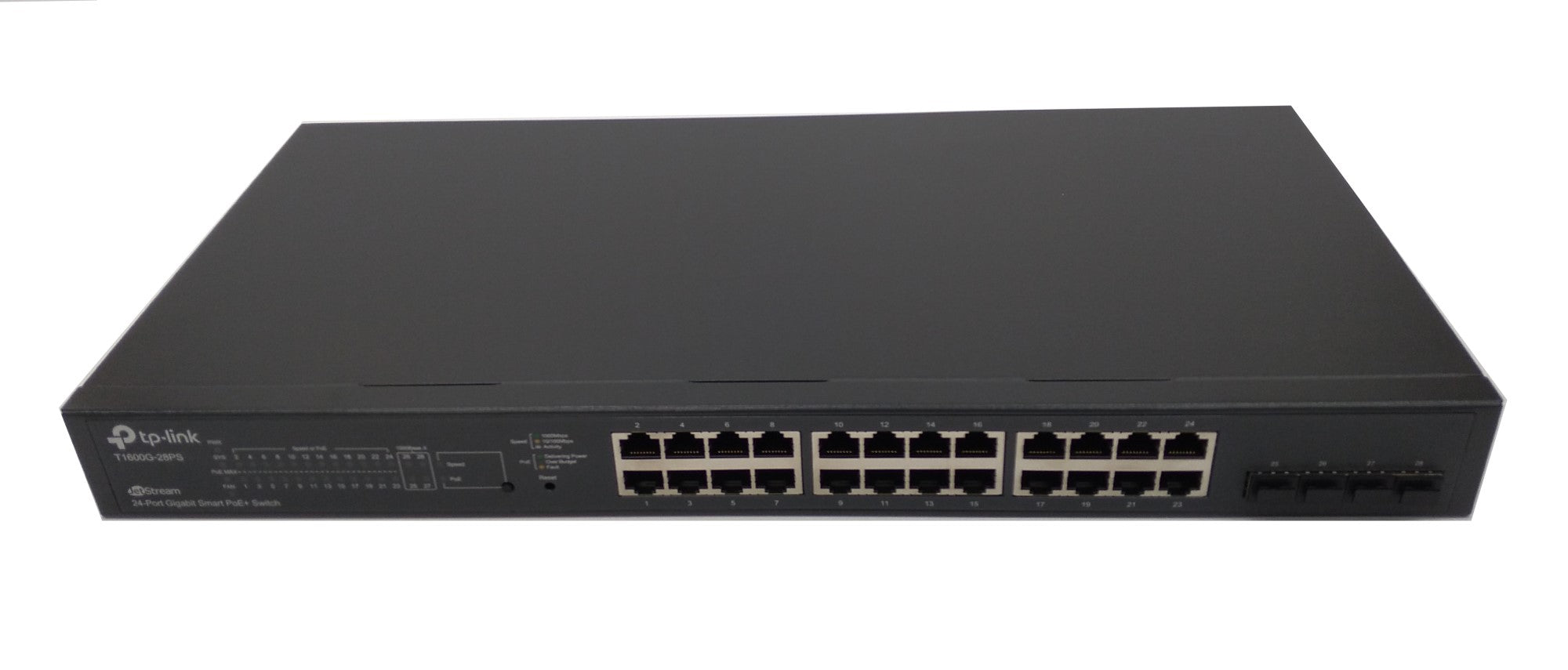

Tp-link T1600G-28PS Ethernet Switch
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
TP-Link's brand new JetStream T1600G-28PS provides huge upgrade comparing with previous versions. New Web UI design features better operating experience. The switch provides 24 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. Small and medium sized businesses can get cost-effective networking solutions without sacrificing enhanced usability and strong performance because of the integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and Static Routing. The T1600G-28PS provides 24 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W to power any 802.3at/af compliant power device. Compact and flexible, the T1600G-28PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks. T1600G-28PS supports a complete lineup of L2 features, including IGMP Snooping/ MLD Snooping, 802.1Q/MAC/ Protocol VLAN, STP/RSTP/MSTP, Link Aggregation Group(LAG), Port Isolation, Port Mirroring, and 802.3x Flow control function. IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch, while IGMP Throttling & Filtering restricts each subscriber on a certain level to prevent unauthorized multicast access. Besides, T1600G-28PS also supports L2+ features like static routing. It is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic to be more efficient. To integrate voice, data and video service on one network, the switch applies abundant QoS policies. Administrator can designate the priority of the traffic based on a variety of functions including Port Priority, 802.1P Priority and DSCP Priority, which can ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN that the switch supports, Voice Applications will perform better and smoother. T1600G-28PS supports comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping, all of these features help to ensure a smooth migration to IPv6-based network without changing switches in the future. T1600G-28PS supports multiple user-friendly standard management features such as intuitive web-based Graphical User Interface (GUI), industrially standard Command Line Interface (CLI) and SNMP (v1/2/3). It supports RMON (Remote Network Monitoring), which enables the administrator to obtain valuable status information and also enables the switch to send traps when encountering abnormal events. Also, the switch supports Dual Image function, which makes there be less 'down-time' when switches are being upgraded/downgraded.
| Model Number | T1600G-28PS |
| Product Name | Tp-link T1600G-28PS Ethernet Switch |
| Product Type | Ethernet Switch |
| Color | Black |
| Standards & Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x |
| Interface | 24 x 10/100/1000Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX), 4 x Gigabit SFP Slots |
| Network Media | 10BASE-T: Cat 3/4/5 UTP (max 100m), 100BASE-TX/1000BASE-T: Cat 5/5e+ UTP (max 100m), 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| PoE+ Ports | 24 Ports (802.3at/af compliant) |
| Power Supply | 192 Watts |
| Mounting | Rack Mountable |
| Maximum Power Consumption | 30.77 Watts (no PD), 235.8 Watts (with 192 Watts PD) |
| Maximum Heat Dissipation | 104.99 BTU/h (no PD), 804.55 BTU/h (with 192 Watts PD) |
| Bandwidth / Backplane | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8 K |
| Jumbo Frame | 9 KB |
| QoS Features | 802.1p CoS/DSCP priority, 8 priority queues, SP/WRR/SP+WRR scheduling, Port/Flow-based Rate Limiting, IPv6 QoS, Voice VLAN |
| L2/L2+ Features | Static Routing, DHCP Relay/Server, IGMP Snooping V1/V2/V3, 802.3ad LACP (8 groups x 8 ports), STP/RSTP/MSTP, BPDU Filtering/Guard, TC/Root Protect, Loopback Detection, 802.3x Flow Control, LLDP, LLDP-MED |
| VLAN Support | Up to 4K VLANs, MAC/Protocol-based VLAN |
| Access Control List | L2-L4 filtering, MAC ACL, IP ACL, Combined ACL, IPv6 ACL |
| Security | AAA, Port Security, DHCP Snooping, IP-MAC-Port Binding, IPv6-MAC-Port Binding, ARP Inspection, 802.1x & Radius Authentication, SSH v1/v2, SSL v3/TLSv1, Storm Control, DoS Defend |
| IPv6 Stack | Dual IPv4/IPv6 |
| IPv6 Features | MLD Snooping, ND, MTU Discovery, ICMPv6, TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client, Ping6, Tracert6, Telnet(v6), SNMP, SSH, SSL, HTTP/HTTPS, TFTP |
| Management Tools | Web GUI, CLI, SNMP v1/v2c/v3 (public & TP-Link MIBs), RMON (1,2,3,9), CPU Monitoring, Port Mirroring, Firmware Upgrade (TFTP/Web), VCT Diagnostics, SYSLOG, Dual Image, EEE |
| Dimensions (W D H) | Width 17.3 x Depth 8.7 x Height 1.73 Inches |
