Dell EqualLogic 7610 NAS Appliance

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

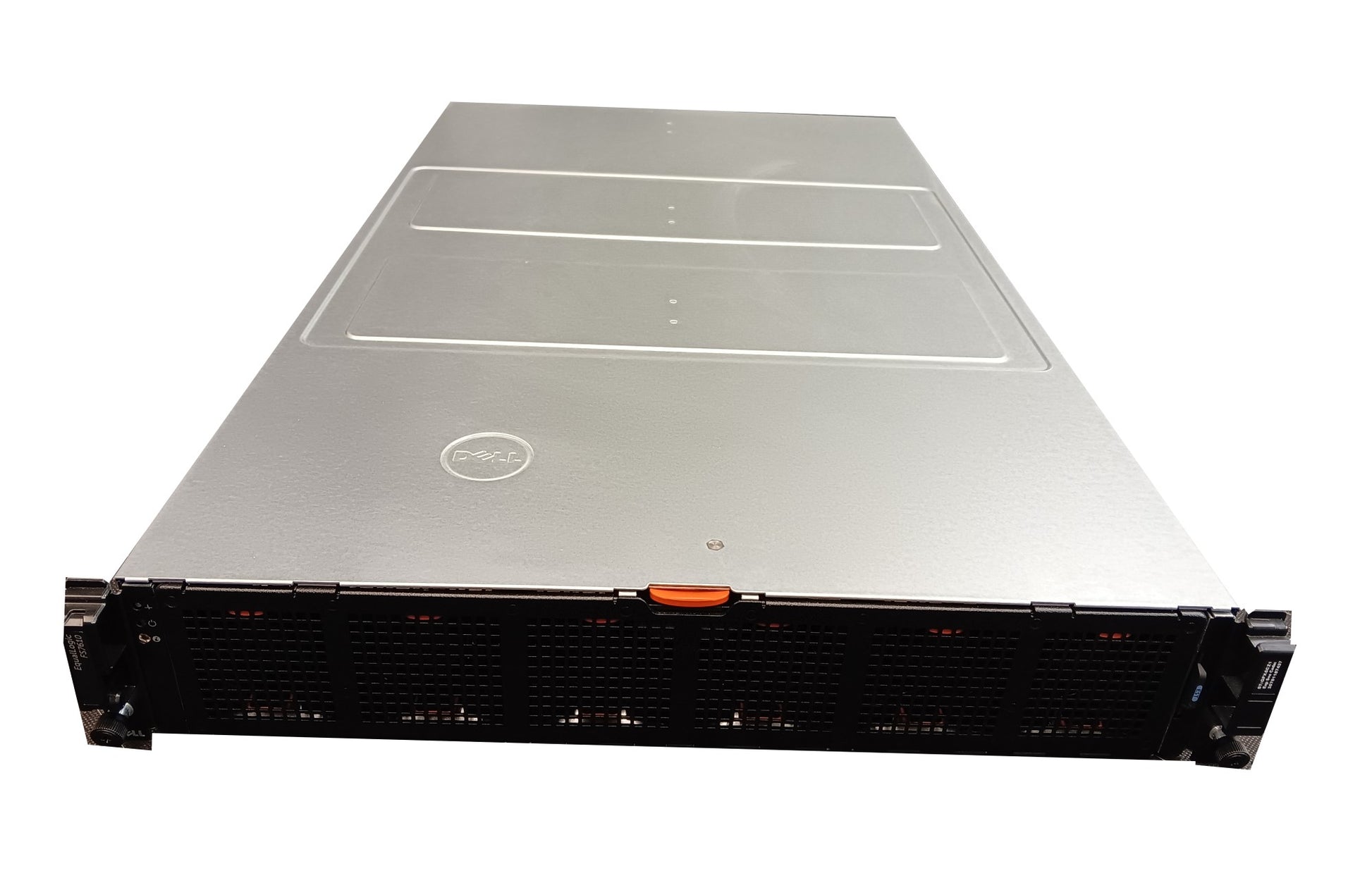

Dell EqualLogic 7610 NAS Appliance - 2U - No Operating System - Chassis only with 2x Power Supplies and 6x fans

Improve productivity and streamline your IT infrastructure by storing block and file data on a single scale-out storage platform. The unique architecture behind the Dell EqualLogic FS7610 NAS appliance helps you expand storage capacity and system performance non-disruptively as your needs evolve over time.

Model Number	FS7610
Product Name	Dell EqualLogic 7610 NAS Appliance
Product Type	NAS Storage Appliance
Compatible Part Numbers	09V273, 1K91H
Configuration	Chassis only, with fans and power supplies. Controllers not included.
Operating System	None
Cluster scalability	Up to two FS7600/FS7610 appliances (four controllers) in a single NAS cluster
File system capacity	Up to 509TB
1GbE configuration options	Supports up to two Intel 1GbE four-port NICs per controller (not included)
10GbE configuration options	Supports up to two Intel 10GbE dual-port NICs per controller (not included), copper or optical, SFP+ or 10GBASE-T standards
Storage arrays supported	Any EqualLogic group running version 8.1 or later firmware
Management	EqualLogic Group Manager
NFS file protocol support	NFSv4.x and NFSv4 ACLs (for implementation detail, refer to the FluidFS support matrix)
SMB file protocol support	SMB 3.0 (for implementation detail, refer to the FluidFS support matrix)
NAS volumes	Max NAS volumes per NAS cluster: 1,024; max NAS volume size: as large as the file system/namespace
Shares/exports	Max number of SMB shares per cluster: 1,024; max number of NFS mounts/exports per cluster: 1,024
Multi-client subnet support	Configure multiple client networks and VLANs to present NFS exports or CIFS shares
Concurrent active SMB connections	Max for single appliance: 5,000; max for a two-appliance cluster: 10,000 (active defined as clients engaging in I/O in the last 15 minutes)
User authentication	For SMB clients: Kerberos v5 and NTLM v2 on Microsoft Active Directory Server; for NFS v4 clients: Kerberos 5 on AD and SASL support for encryption
Directory services	Windows SMB and NFS clients: Microsoft Active Directory 2003, 2003R2, 2008, 2008R2, 2012, 2012R2; Linux/UNIX clients: NIS and secured LDAP
Quotas	User and group quota rules per container: 1,000; max user quotas per cluster: 1,000
Local users	Max local users per cluster: 100; max local groups per cluster: 100
Directories	Max number of directories per cluster: 10 billion; max directory name length: 255 bytes
Files	Max file size: 16TB; max number of files per cluster: 10 billion; max file name length: 255 bytes
Snapshots	Redirect-on-write snapshots; max number of snapshots per container/cluster: 1,024/10,000; max number of snapshot policies per container/cluster: 512/1,024
Replication	Asynchronous to peer FS7610/FS7600/FS7500 appliances, dissimilar clusters cluster sizes only (client network speeds and array configurations can vary); max number of replication partners (or destinations): 100; max number of replication policies per cluster: 512; max number of concurrent replications: 10 outgoing, 100 incoming; max containers enabled for replication: 256
NDMP backup	Remote or three-way NDMP over Ethernet ports Certified with Dell Quest NetVault Backup 9.10, CommVault Simpana 9.10, IBM Tivoli Storage Manager 6.3, Symantec NetBackup 7.0 and 7.5, Symantec Backup Exec 2012, 2014, EMC Networker 8.x
ICAP antivirus	Certified with Symantec ScanEngine 5.2 and Protection 7.0, 7.5, McAfee Virus Scan Enterprise 8.8 and Enterprise for Storage 1.1.0, Sophos Endpoint Security and Control 10.2, 10.3, TrendMicro InterScan Web Security Suite 3.1
Data reduction	Post-process policy-based variable block (128KB +/- 64KB) data deduplication and LZPS compression per NAS volume Memory
Memory per controller (not included)	24GB DDR3 1066MT/s per controller (48GB per appliance)
Power supply	2x 717W installed
Fans	6x installed
Input voltage	90-264 VAC; auto-ranging; this system is also designed to be connected to IT power systems with a phase to phase voltage not exceeding 230V
Output wattage	717W
Heat dissipation	2446 BTU/hr
Line frequency	47-63 Hz
Current	10.5Amp at 90 VAC steady state, 5.2Amp at 180 VAC steady state
Dimensions	Form factor: 2U; width: 44.63 cm (17.6 in) (does not include rack flange); depth: 81.30 cm (32.0 in) (includes bezel and controllers installed); height: 8.64 cm (3.4 in); weight max configuration: 30.5 kg (67 lb)
