Avago AFBR-57H5MZ-EL1 Optical Transceiver
Regular price
Now Only:
Sale price
$140.49
Regular price
$166.95
Save 15%
Available in stock (11)
The AFBR-57H5MZ-EL1 optical transceiver supports high-speed serial links over multi-mode optical fiber at signaling rates up to 57.8 Gb/s PAM4 (the serial line rate of 64GFC). The product is compliant... See Product Details for more information.
Open Box products are Like New in original manufacturer condition.
Couldn't load pickup availability
Same Technology, Lower Price!
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.
Product Details
Product Details

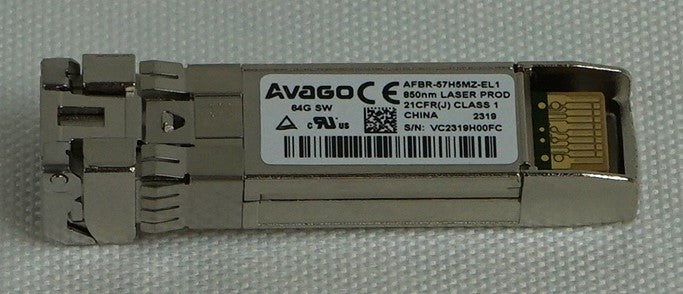

Avago AFBR-57H5MZ-EL1 64GFC SFP56 for Multi-Mode Optical Fiber Digital Diagnostic SFP Transceiver - 850-nm - 64G/32G/16G
The AFBR-57H5MZ-EL1 optical transceiver supports high-speed serial links over multi-mode optical fiber at signaling rates up to 57.8 Gb/s PAM4 (the serial line rate of 64GFC). The product is compliant with Small Form Pluggable SFP+ industry agreements for mechanical and low speed electrical specifications. High-speed electrical and optical specifications are compliant with ANSI Fibre Channel FC-PI-7.
The AFBR-57H5MZ-EL1 is a multi-rate 850-nm transceiver that ensures compliance with FC-PI-7 64GFC, 32GFC, and 16GFC specifications. Per the requirements of 64GFC, internal clock and data recovery circuits (CDRs) are present on both electrical input and electrical output of this transceiver. These CDRs lock at 57.8-Gb/s PAM4, 28.05-Gb/s NRZ and 14.025-Gb/s NRZ (64GFC, 32GFC, and 16GFC) accomplished by using two Rate Select inputs and I2C to configure transmit and receive sides.
Digital diagnostic monitoring information (DMI) is present in the AFBR-57H5MZ-EL1 per the requirements of SFF-8472, providing real time monitoring information of transceiver laser, receiver and environment conditions over an SFF-8431 I2C interface.
The AFBR-57H5MZ-EL1 optical transceiver supports high-speed serial links over multi-mode optical fiber at signaling rates up to 57.8 Gb/s PAM4 (the serial line rate of 64GFC). The product is compliant with Small Form Pluggable SFP+ industry agreements for mechanical and low speed electrical specifications. High-speed electrical and optical specifications are compliant with ANSI Fibre Channel FC-PI-7.
The AFBR-57H5MZ-EL1 is a multi-rate 850-nm transceiver that ensures compliance with FC-PI-7 64GFC, 32GFC, and 16GFC specifications. Per the requirements of 64GFC, internal clock and data recovery circuits (CDRs) are present on both electrical input and electrical output of this transceiver. These CDRs lock at 57.8-Gb/s PAM4, 28.05-Gb/s NRZ and 14.025-Gb/s NRZ (64GFC, 32GFC, and 16GFC) accomplished by using two Rate Select inputs and I2C to configure transmit and receive sides.
Digital diagnostic monitoring information (DMI) is present in the AFBR-57H5MZ-EL1 per the requirements of SFF-8472, providing real time monitoring information of transceiver laser, receiver and environment conditions over an SFF-8431 I2C interface.
| Model Number | AFBR-57H5MZ-EL1 |
| Product Name | Avago AFBR-57H5MZ-EL1 Optical Transceiver |
| Product Type | Networking Transceiver |
| Connector Type | LC |
| Data Rate | 57.8 Gb/s |
| Data Rate Group | 50-64G |
| Fiber Type | Multimode |
| Form Factor | SFP56 |
| Max Distance (m) | 100 |
| Nominal Optical Wavelength (nm) | 850 |
