Sale

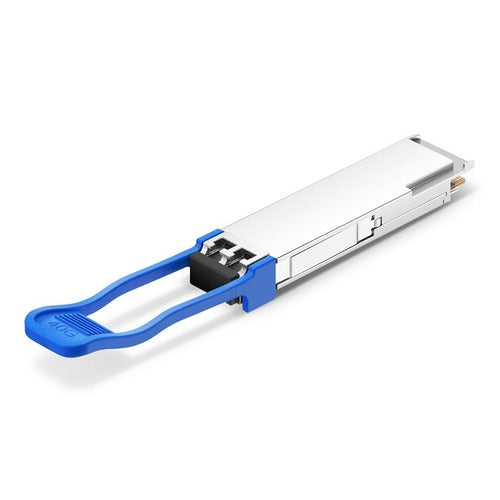

Brocade 40G-QSFP-LM4 40 Gbps Optical Transceiver
Regular price
Now Only:
Sale price
$29.49
Regular price
$199.91
Save 85%
Available in stock (34)
Brocade Compatible 40G-QSFP-LM4 QSFP+ 40GBase-IR4 form factor network transceiver supports a distance of up to 2km over multi-mode fibre/single-mode fibre (MMF) using a wavelength of 1310nm via an LC... See Product Details for more information.
New products are Factory Sealed.
Couldn't load pickup availability
Same Technology, Lower Price!
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.
Product Details
Product Details
Brocade 40G-QSFP-LM4 40 Gbps Optical Transceiver - 1x LC Duplex - LM4 Full-Duplex Network - Optical Fiber - Multi-Mode - Hot-Pluggable - For Data Networking, Optical Network
Brocade Compatible 40G-QSFP-LM4 QSFP+ 40GBase-IR4 form factor network transceiver supports a distance of up to 2km over multi-mode fibre/single-mode fibre (MMF) using a wavelength of 1310nm via an LC Duplex connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver, meets the specification of Brocade 40G-QSFP-LM4, and rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
Brocade Compatible 40G-QSFP-LM4 QSFP+ 40GBase-IR4 form factor network transceiver supports a distance of up to 2km over multi-mode fibre/single-mode fibre (MMF) using a wavelength of 1310nm via an LC Duplex connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver, meets the specification of Brocade 40G-QSFP-LM4, and rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
| Model Number | 40G-QSFP-LM4 |
| Product Name | Brocade 40G-QSFP-LM4 40 Gbps Optical Transceiver |
| Product Type | Transceiver |
| Data Transfer Rate | 40 Gbps |
| Connector Type | LC Duplex |
| Media | MMF / SMF |
| Transimitter Type | CWDM4 DFB |
| Receiver Type | PIN |
| TX Power (MMF) | 7-4.3 decibel milliwatts |
| TX Power (SMF) | 10-2.3b decibel milliwatts |
| Receiver Sensitivity (MMF) | 10 decibel milliwatts |
| Receiver Sensitivity (SMF) | 13.7 decibel milliwatts |
| Receiver Overload (MMF) | 4.3 decibel milliwatts |
| Receiver Overload (SMF) | 2.3 decibel milliwatts |
| Power Budget (MMF) | 3.5 decibel |
| Power Budget (SMF) | 0.5 decibel |
| Power Consumption | 3.5 Watts |
| Extinction Ratio | 3.5 decibel |
| Host FEC | Supported |
| Bit Error Ratio (BER) | 1E-12 |
| Protocols | 40G Ethernet, MSA Compliant |
| DOM Support | Yes |
| Compliance Standards | All MSA and IEE Standards & Protocols |
| Compatibility | PC |
| Form Factor | QSFP+ |
| Wavelength | 1310 nanometers |
| Maximum Cable Distance | 150 meters @ OM3 / 2 kilometers @ SMF |
