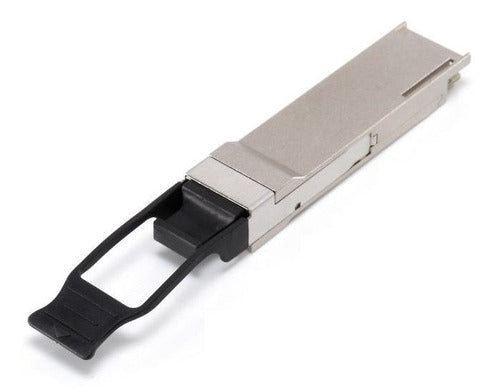

Brocade 40G-QSFP-SR4-INT 40 Gbps Optical Transceiver

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

Brocade 40G-QSFP-SR4-INT 40 Gbps Optical Transceiver - 1x MPO / MTP Duplex - SR4 Network - Optical Fiber - Multi-Mode - SR4 - Hot-pluggable - For Data Networking, Optical Network

Brocade Compatible 40G-QSFP-SR4-INT QSFP+ 40GBase-SR4 form factor network transceiver supports a distance of up to 150m over multi-mode fibre (MMF) using a wavelength of 850nm via an MPO-12 connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver, meets the specification of Brocade 40G-QSFP-SR4-INT, and rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.

Model Number	40G-QSFP-SR4-INT
Product Name	Brocade 40G-QSFP-SR4-INT 40 Gbps Optical Transceiver
Product Type	Transceiver
Connector Type	MPO-12
Media	MMF
Transmitter Type	VCSEL
Max Cable Distance	150 meters OM4 / 100 meters OM3
Data Transfer Rate	40 Gbps
Receiver Type	PIN
TX Power	7.1-1.9 decibel milliwatts
Receiver Sensitivity	10.3 decibel milliwatts
Digital Optical Monitoring	Yes
Receiver Overload	2.4 decibel milliwatts
Power Consumption	<1.5 Watts
Core Size	50 micrometer
Extinction Ratio	3 decibel
Modulation	NRZ
Host FEC	Supported
Modal Bandwidth	2000 (OM3) MHz km, 4700 (OM4) MHz km
Compatibility	PC
Form Factor	QSFP+
Wavelength	850 nanometers
Connector	MTP / MPO-12 Male
Protocols	IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Optical Wave Length	840 - 860 nanometers
Features	Full Duplex Mode, Hot Swap Module Replacement
Connectivity Technology	Wired
