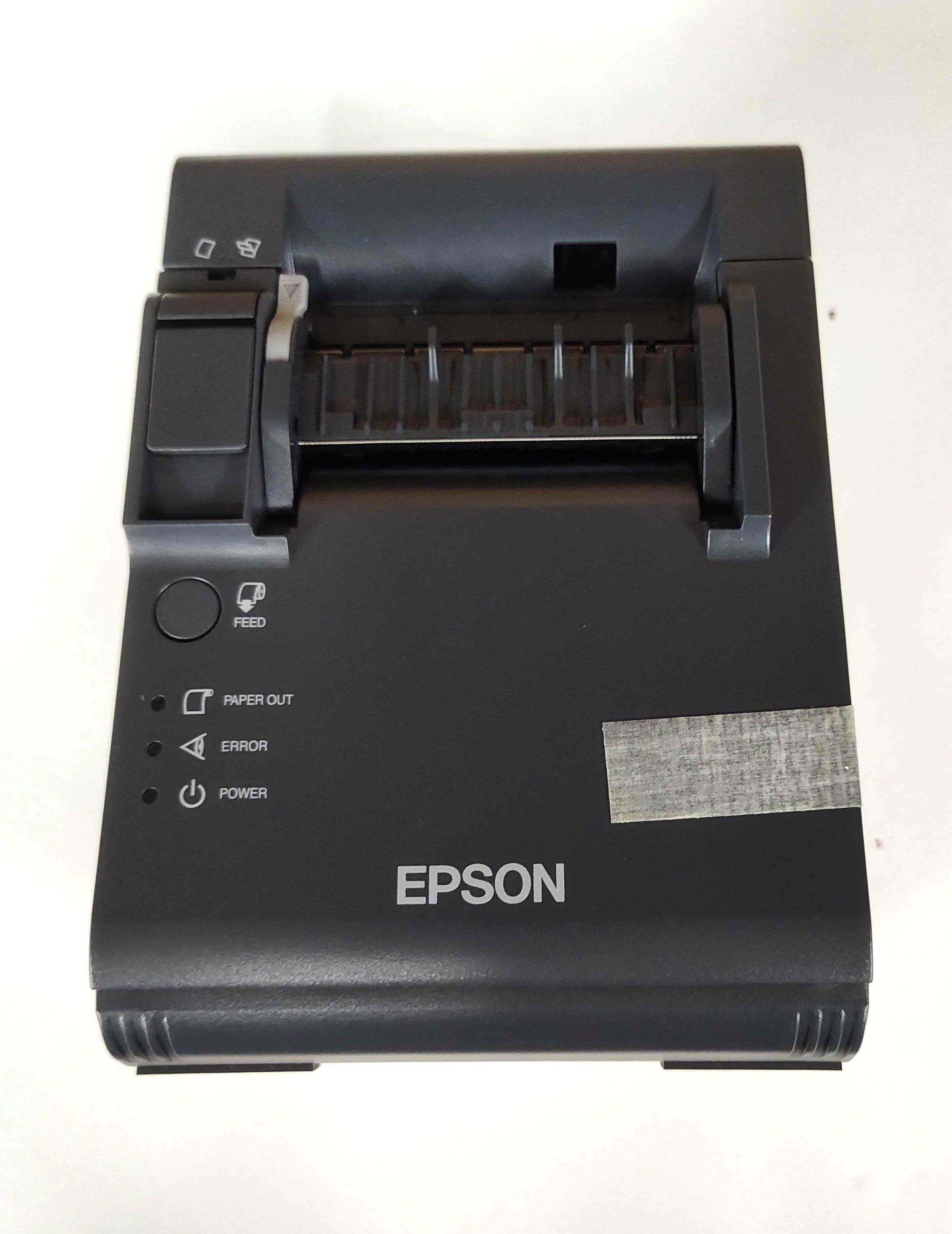

Epson Custom L90 Plus Receipt and Label Printer and UB-E04 Connect-It
Hurry up, only 6 items left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
The Custom TM-L90 Plus label printer with peeler offers high quality label and barcode printing in one compact unit. It features fast print speeds of up to 150mm/second at 203 x 203 dpi for crisp, clear logos and text. It supports continuous printing on liner labels and cost-effective thermal labels are available from Epson in a variety of sizes. It comes with a UB-E04 Connect-It Ethernet Interface for Epson POS printers, providing ePOS Print Service support for mobile devices, plus web- and cloud-based applications. Features a built-in USB port to support wireless connectivity using an Epson wireless adapter.
TM-L90 Plus Label Printer
UB-E04 Connect-It Ethernet Interface
| Model number | M313C |
| Product Name | Epson Custom L90 Plus Receipt and Label Printer and UB-E04 Connect-It Ethernet Interface |
| Product Type | Label Printer |
| Ports | USB-A |
| Usage | Prints Thermal Labels and Receipts |
| Print method | Thermal line printing |
| Print speed | 50 mm/sec (high speed); 120 mm/sec (Normal Mode) |
| Print resolution | 203 x 203 dpi |
| Print font | 9 x 17 / 12 x 24 |
| Column capacity | 64/72 columns |
| Character size | 1.13 x 2.13 / 1.5 x 3.0 / 1.0 x 2.0 mm (W x H) |
| Character set | 95 Alphanumeric |
| Barcode | UPC-A |
| Reliability | MTBF 360,000 hours, MCBF 70 million lines (receipts), Auto cutter: 2 million cuts (receipts), 1 million cuts (labels) |
| Paper width | 38 mm (1.50"), 60 mm (2.76"), 80 mm (3.14") |
| Paper diameter | 90 mm (3.5") |
| Interface | Built-in USB interface plus another selection; serial RS-232c, parallel IEEE-1284, Ethernet, high-speed USB, powered USB, Wireless |
| Data buffer | 4K or 45 bytes |
| Power | 24 VDC7% |
| Power consumption | Approx. 1.8 A (mean) |
| D.K.D. function | 2 drawers |
| Color | Epson Dark Gray |
| Environmental standards | WEEE, RoHS compliant |
| EMI standards | VCCI class A, FCC Class A, CE marking, Canada EMI, AS/NZS CISPR22 Class A |
| Safety standards | UL, CSA, TV (EN60950) |
| Overall dimensions (W x D x H) | 5.5" x 5.8" x 8.0" (140 mm x 148 mm x 203 mm) |
| Weight | Approx. 4.18 lb (1.9 kg) |
