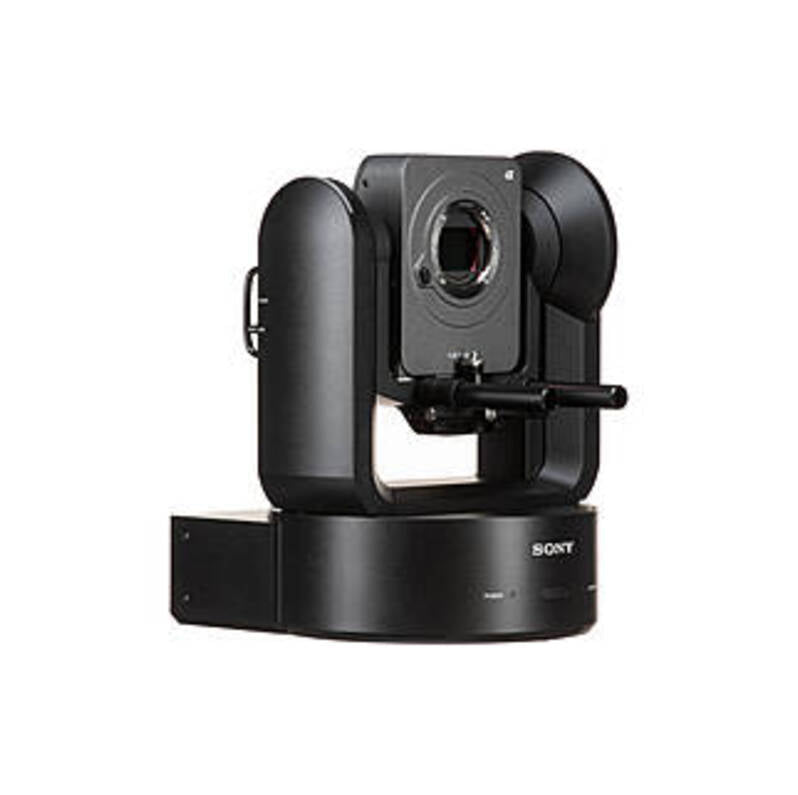

Sony ILME-FR7 Cinema Line Full-frame PTZ Interchangeable Lens Robotic

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

Sony ILME-FR7 Cinema Line Full-frame PTZ Interchangeable Lens Robotic Camera - Body Only

Capture cinematic, full-frame footage in PTZ form for broadcast use, reality shows, houses of worship, and live events and sports with the black FR7 Cinema Line PTZ Camera from Sony. This versatile camera features the unique ability to use interchangeable Sony E-mount lenses and is currently compatible with up to 70 E-mount lenses ranging from 12 to 1200mm. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects. The FR7 combines a 4K full-frame sensor and compatibility with Sony E-mount lenses to produce outstandingly expressive, cinematic imagery. 15+ stops of dynamic range and a base ISO of 800 that is expandable from 12,800 to 409,600 for capturing optimal video in an array of lighting conditions. Compatibility with up to 70 Sony E-mount lenses covers a range of 12 to 1200. Enables you to capture the widest vistas and the closest details. Use with G Master (GM) lenses to obtain impressive resolution and pleasing bokeh. Capture rich detail and wide color using Sony S-Log3 and create nuanced contrast with Hybrid Log Gamma (HLG). An integrated, electronic ND filter offers variable ND filtration ranging from 1/4 (2 stops) to 1/128 (7 stops). Use the ND filter to compensate for changes in exposure without affecting your depth of field. Create shallow depth-of-field effects by adding the ND and opening the iris. The FR7 can output raw video via the SDI (BNC) output to an external recording for color grading and other post-production tweaking. Record UHD 4K video at rates up to 120 fps for slow-motion effects. Use the IP remote function to control your camera from a distance like a broadcast truck and/or to control multiple cameras. Slow, smooth pan and tilt movements enable you to unobtrusively zoom in on the action and reframe accordingly. Output video using the HDMI and up to 12G-SDI video outputs. Stream RTSP, SRT, or NDI|HX (requires NewTek license) using the LAN port. The included IR remote can be used for pan, tilt, zoom (PTZ), focus, recording, playback, and other camera settings. Use with the separately available RM-IP500 control panel with joystick zoom rocker, and buttons. Web app remote control can be accessed from a tablet or PC browser. Mount on a tripod or riser using the two 1/4"-20 threads. Use the optional mount to attach the FR7 camera to a ceiling. Attach camera accessories using the 15mm rod mounts. Bring a cinematic look to your PTZ capture and match footage from other Sony cameras with the S-Cinetone picture profile. The Cine EI mode with MLUT management can be used with S-Log3 or raw recording. XAVC recording with metadata capture supports up to 10-bit, 4:2:2 color and HDR recording. Fast hybrid autofocus with face detection and touch tracking enable you to keep even dynamic action in focus. Quick control with up to 100 preset positions. A robust interface includes a LAN port for network and PoE++ use, timecode input, a genlock connector, and red/green tally indicators. Dual media slots are compatible with both CFexpress Type A and SDXC memory cards.

Model Number	ILME-FR7
Product Name	Sony ILME-FR7 Cinema Line Full-frame PTZ Interchangeable Lens Robotic Camera
Product Type	Robotic Camera
Mass	Approx. 4.6 kg (body only), Approx. 10 lb 2.3 oz, Approx. 6.0 kg (with SELP28135G LENS), Approx. 13 lb 3.6 oz (with SELP28135G LENS)
Power Requirements	DC 19.5 Voltage, PoE++ (IEEE802.3bt Type 4 Class 8 compliant) 41.1 Voltage~57.0 Voltage
Power Consumption	80 Watts (DC 19.5 Voltage), 71.3 Watts (PoE++)
Ceiling Mount	Yes (with Ceiling Bracket option)
Tally Ramp	Left(x1)/Right(x1), Red/Green
Recording Format (Video)	[XAVC Intra] XAVC-I DCI4K 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I
Recording Format (Audio)	LPCM 24 bits, 48 kHz, 4 channels
Recording Frame Rate	[XAVC Intra] XAVC-I DCI4K mode:4096 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, 24p XAVC-I QFHD mode:3840 x 2160/59.94p, 50P, 29.97p, 23.98p, 25p XAVC-I HD mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p [XAVC Long] XAVC-L QFHD mode:3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p XAVC-L HD 50 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p XAVC-L HD 35 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p
Recording - Playback Time	[XAVC Intra] XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80
Recording Format (Proxy Audio)	XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video)	XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR, 1920 x 1080, 9 Mbps
Lens Mount	E-mount
Imaging Device (Type)	35 Millimeter full frame (35.6 x 23.8 Millimeter ), Exmor R CMOS sensor
Number of Pixels (total)	Approx. 12.9 megapixels
Number of pixels (effective)	Approx. 10.3 megapixels
Built-in Optical Filters	Clear, linear variable ND (1/4ND to 1/128ND)
ISO Sensitivity	ISO 800/12800 (Cine EI mode, D55 Light source)
Focus Type	Fast Hybrid AF (phase-detection AF / contrast-detection AF)
Focus Point	627 points
Focus Area	Wide / Zone / Flexible Spot
Other Focus Features	Eye AF (Human), AF Subj. Shift Sensitivity, AF Transition Speed, Face detection (Face/Eye Priority, Face/Eye Only AF), Real-time Tracking AF
Output Format / SDI	4096 x 2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 25PsF
Output Format / HDMI	4096 x 2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 720 x 480 / 59.94p, 720 x 576 / 50p
Clear Image Zoom	QFHD/4K: 1.5x, HD: 2x
Shutter Speed	64 frame to 1/8000 sec
Slow and Quick Motion Function	XAVC-I/L 3840 x 2160 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98) 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)
White Balance	Preset, Memory A(2000K-15000K)/ATW
Gain	3 to 30 dB (every 1dB), AGC
Gamma Curve	SDR Mode :S-Cinetone, Standard, Still, ITU709 HDR mode: HLG_Live, HLG_Natural
Latitude	15+ stop
Pan - Tilt Angle	Pan: -170 deg. ~170 deg., Tilt: -30 deg. ~195 deg.
Pan - Tilt Speed	Pan: 0.02 deg. to 60 deg./s, Tilt: 0.02 deg. to 60 deg./s
Quietness	NC35 or less
Preset Position	100
Audio Input	XLR-type 5-pin (female) (x1), line/mic/mic +48 V selectable, Mic Reference: -30 to -80 dBu
SDI Output	BNC (x1), 12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
HDMI Output	Type-A connector (x1)
Genlock Input	BNC (x1), 1.0 Vp-p, 75 O
Optical Output	SFP+ compliant video is same as SDI, video output only
DC Input	DC jack(x1)
Network	RJ-45(LAN) (x1), 1000BASE-T
Remote Control	RJ-45(OPTION) (x1), Red Tally IO/Green Tally IO
IR Remote Control	Yes
TC Input/TC Output	BNC (x1), TC IN only
Protocols IPv6	TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS
Protocols IPv4	TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS
Video Resolution	4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360
Compression Format	H.264: High/Main/Baseline Profile, H.265: Main/Main10 Profile
Maximum Frame Rate	H.264: 59.94fps, H.265: 59.94fps
Bitrate Control Mode	CBR/VBR
Range of Bitrate Setting	512 Kbps~80 Mbps
NDI	HX capability|Yes Option
Supported operation systems - Windows, Mac, iPad, Android,	Windows 10 or later, macOS 10.15 or later, iPadOS 15 or later, Android 12 or later, Google Chrome, Google Chrome, Safari,
Media Type	CFexpress Type A / SD card (x2)
Screen Reader	Yes (Language: English, Speed: 7 steps, Volume: 15 steps)
Broadcast Output	NTSC/PAL
Presets	3 via IR, 100 via IP
Dimensions	Width 9 x Height 11 1/2 x Depth 9 1/4 inches
