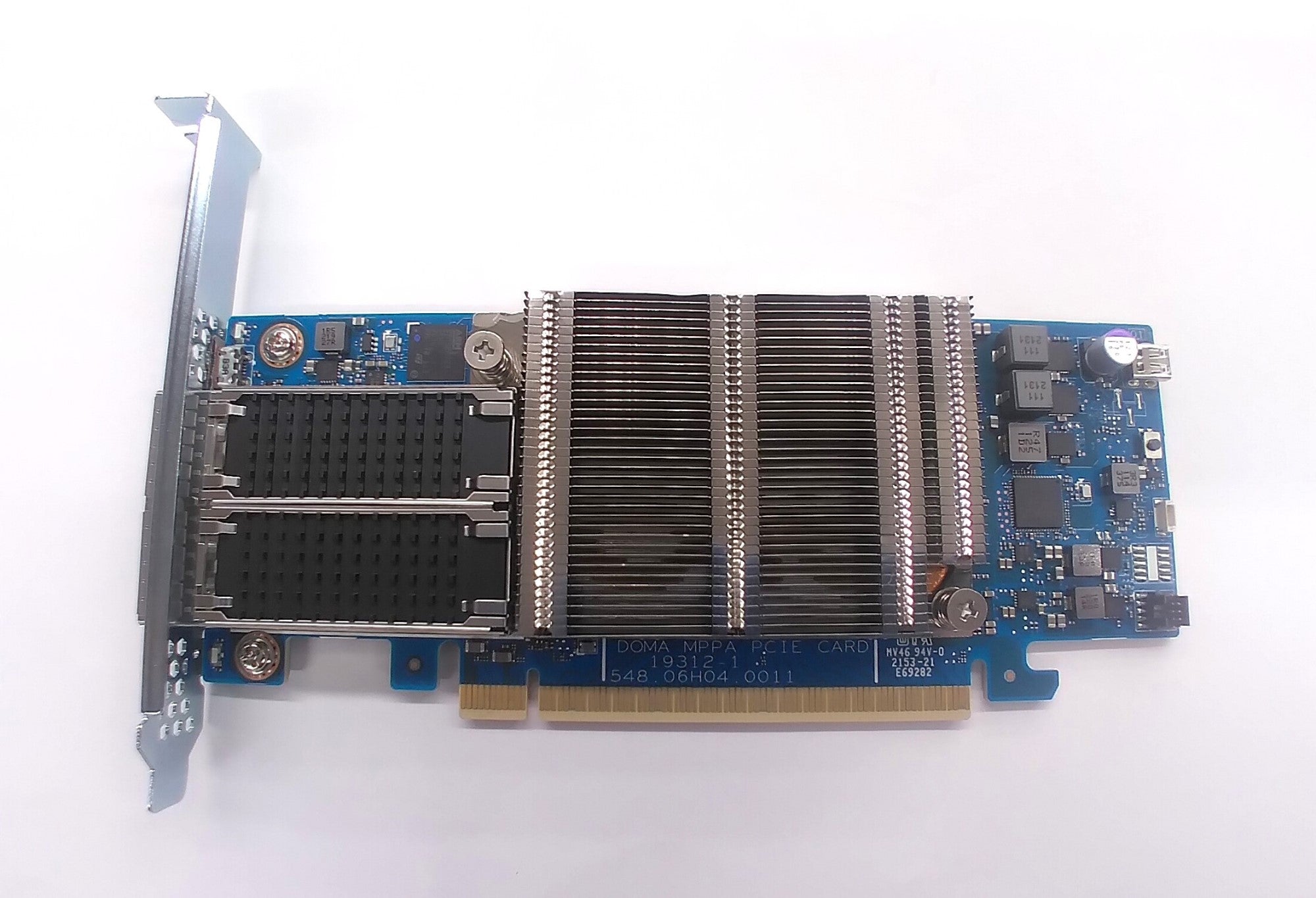

Dell 0W0NX (Kalray 0S24D10087) Kalray K208LP-1111PD11 Smart Storage

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Dell 0W0NX (Kalray 0S24D10087) Kalray K208LP-1111PD11 Smart Storage Accelerator Card - 2x QSFP28 100GbE - MPPA3-80 V1.2 1GHz DPU - PCIe Gen4 X16 - 8GB DDR4-3200 ECC RAM - 4GB eMMC - High Profile

The adoption of NVMe storage devices in servers has resulted in huge performance and capacity growth per server. Unfortunately, main server CPUs have not kept pace. The Kalray Smart Storage Accelerator (SSA) offloads intense storage data services and applications from the main CPU, thereby releasing all the potential of NVMe SSDs in any server with local NVMe devices. The main CPU is freed to perform billable tasks while all storage-related functions and applications are offloaded to the Kalray K220-LP Smart Storage Accelerator.

Leveraging Kalrays MPPA DPU unique capabilities, the K220-LP is a low-power PCIe card designed for any server and OS. A lightweight daemon configures the desired storage resources and the Kalray card presents standard block-level NVMe targets to the OS. With no software layer between the NVMe devices and host VMs or applications, the full performance efficiency is realized from local TLC and QLC SSDs. Existing device and IO drivers continue to work seamlessly.

Model Number	0W0NX
Product Name	Dell 0W0NX (Kalray 0S24D10087) Kalray K208LP-1111PD11 Smart Storage Accelerator Card
Product Type	Storage Accelerator
Processor	Kalray MPPA3-80 V1.2 @ 1GHz (80-cores)
SSD Device Support	Western Digital, Micron, Intel, Kioxia, Hynix, Seagate, Samsung, Solidigm
Device Capacity	Up to 24 x 30TB NVMe SSD
Network Interface	2x QSFP28 100Gb Ethernet
Host Interface	X16 PCIe Gen4 (RC and PTP)
Memory	2x DDR4 4GB @ 3200MT/s with ECC
Format	High Profile - Half Length
Overall Size	167.65 mm x 68.9 mm x 1 PCIe slot (with passive heatsink)
PCB Thickness	1.6 mm
Power Input	Only PCIe gold finger power input (12V@5.5A + 3.3V@3A)
Power Consumption	36W (typical) 42W (max)
Safety, Regulatory, and Compliance	FCC, UL, VCCI, CE, Canada, RoHS Directive 2002/95/EC, WEEE Directive 2002/96/EC
MTBF	>200,000 hours
Operating Temperature	0C to 50C
Storage Temperature	-40C to 85C
Also known as	Kalray 0S24D10087
