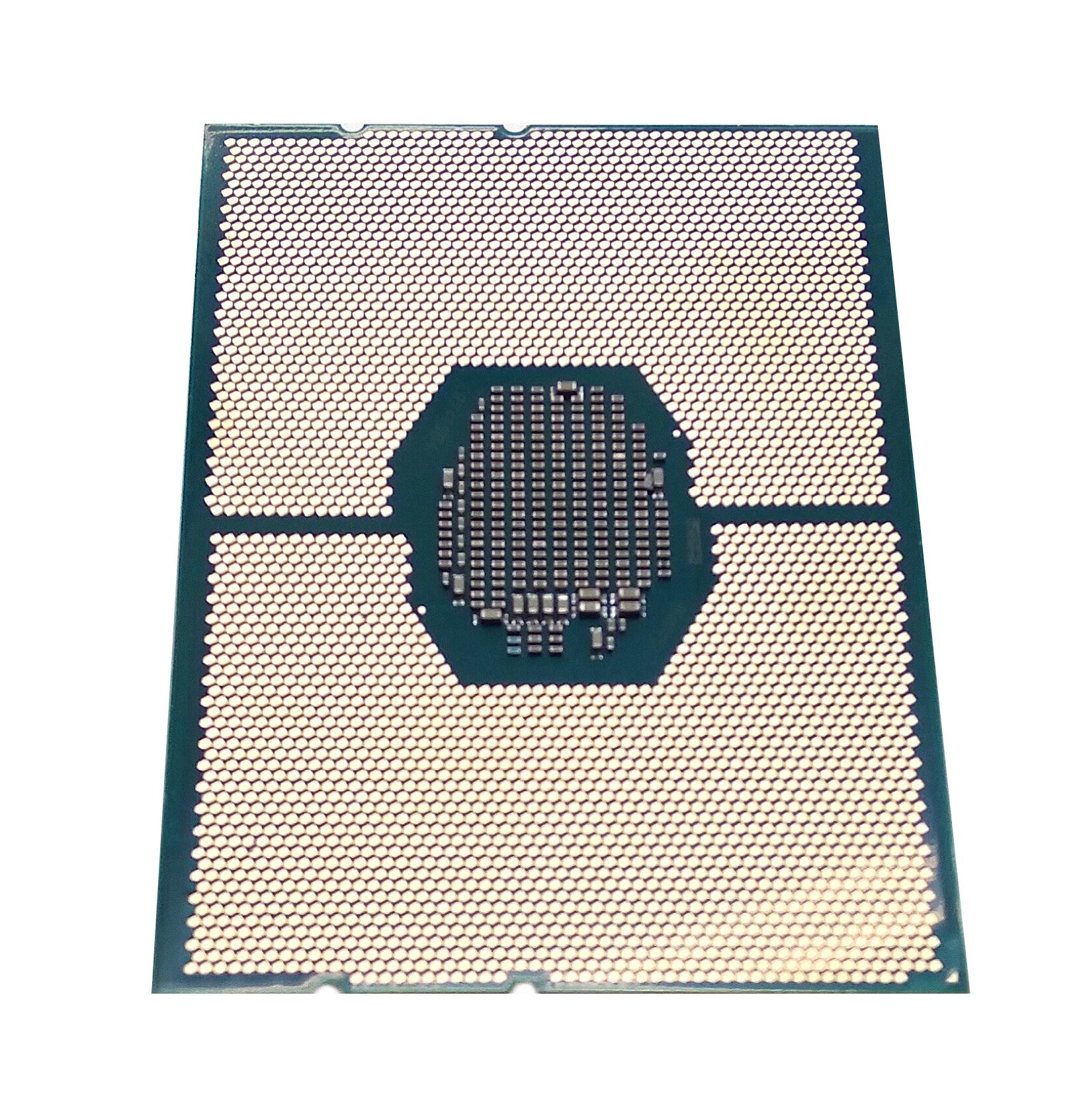

Intel Xeon Gold 6142 CD8067303405400 Server Processor

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Intel Xeon Gold 6142 CD8067303405400 Server Processor - SR3AY - 16 Core - 22 MB L3 Cache - 2.60 GHz Base Frequency - FC-LGA3647 Socket - Intel vPro

Intel AES New Instructions (Intel AES-NI) are a set of instructions that enhance data encryption and decryption performance on Intel processors. These instructions are valuable for a wide range of cryptographic applications, including bulk encryption/decryption, authentication, random number generation, and authenticated encryption. Intel Trusted Execution Technology is a set of hardware extensions to Intel processors and chipsets that provide enhanced security capabilities for the digital office platform. These capabilities include measured launch and protected execution, creating a secure environment for applications to run in their own space and be protected from other software on the system. Enhanced Intel SpeedStep Technology is an advanced method of balancing high performance and power conservation in mobile systems. This technology builds upon the conventional Intel SpeedStep Technology by implementing design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery. These strategies allow for more efficient switching between high and low levels of voltage and frequency in response to processor load.

Model Number	CD8067303405400
Product Name	Intel Xeon Gold 6142 CD8067303405400 Server Processor
Product Type	Server Processor
Vertical Segment	Server
Processor	Intel Xeon 6142
Processor Code Name	Skylake
Lithography	14 Nanometers
Total Cores	16
Total Threads	32
Max. Turbo Frequency	3.70 GHz
Processor Base Frequency	2.60 GHz
Cache	22 MB L3 Cache
Max. No. of UPI Link	3
TDP	150 Watts
Max. Memory Size	768 GB
Memory Type	DDR4
Maximum Memory Speed	2666 MHz
Max. No. of Memory Channels	6
ECC Memory Supported	Yes
Scalability	S4S
PCI Express Revision	3.0
Max. No. of PCI Express Lanes	48
Socket Supported	FCLGA3647
Intel Speed Shift Technology	Yes
Intel Turbo Boost Technology	2.0
Intel Hyper Threading Technology	Yes
Intel Transactional Synchronization Extensions	Yes
Intel 64	Yes
Instruction Set Extensions	Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
No. of AVX-512 FMA Units	2
Enhanced Intel SpeedStep Technology	Yes
Intel Volume Management Device	Yes
Intel vPro	Yes
Intel AES New Instructions	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Run Sure Technology	Yes
Mode Based Execute Control	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Compatible Server System	Intel Server System R1208WFQYSR, R1304WFTYSR, R1304WF0YSR, R1208WFTYSR, R1304WF0YS, R1304WFTYS, R1208WFTYS, R2308WFTZSR, R2208WFQZSR, R2208WF0ZSR, R2208WFTZSR, R2224WFTZSR, R2208WFQZS, R2224WFQZS, R2224WFTZS, R2208WF0ZS, R2308WFTZS, R2208WFTZS, Intel Compute Module HNS2600BPBR, HNS2600BPSR, HNS2600BPQR, HNS2600BPBLCR, HNS2600BPBLC, HNS2600BPQ, HNS2600BPS, HNS2600BPB
Compatible Server Board	Intel Server Board S2600STBR, S2600STQR, S2600STB, S2600STQ, S2600WFTR, S2600WFQR, S2600WF0R, S2600WFQ, S2600WF0, S2600WFT
Compatible Chipset	Intel C621 Chipset
