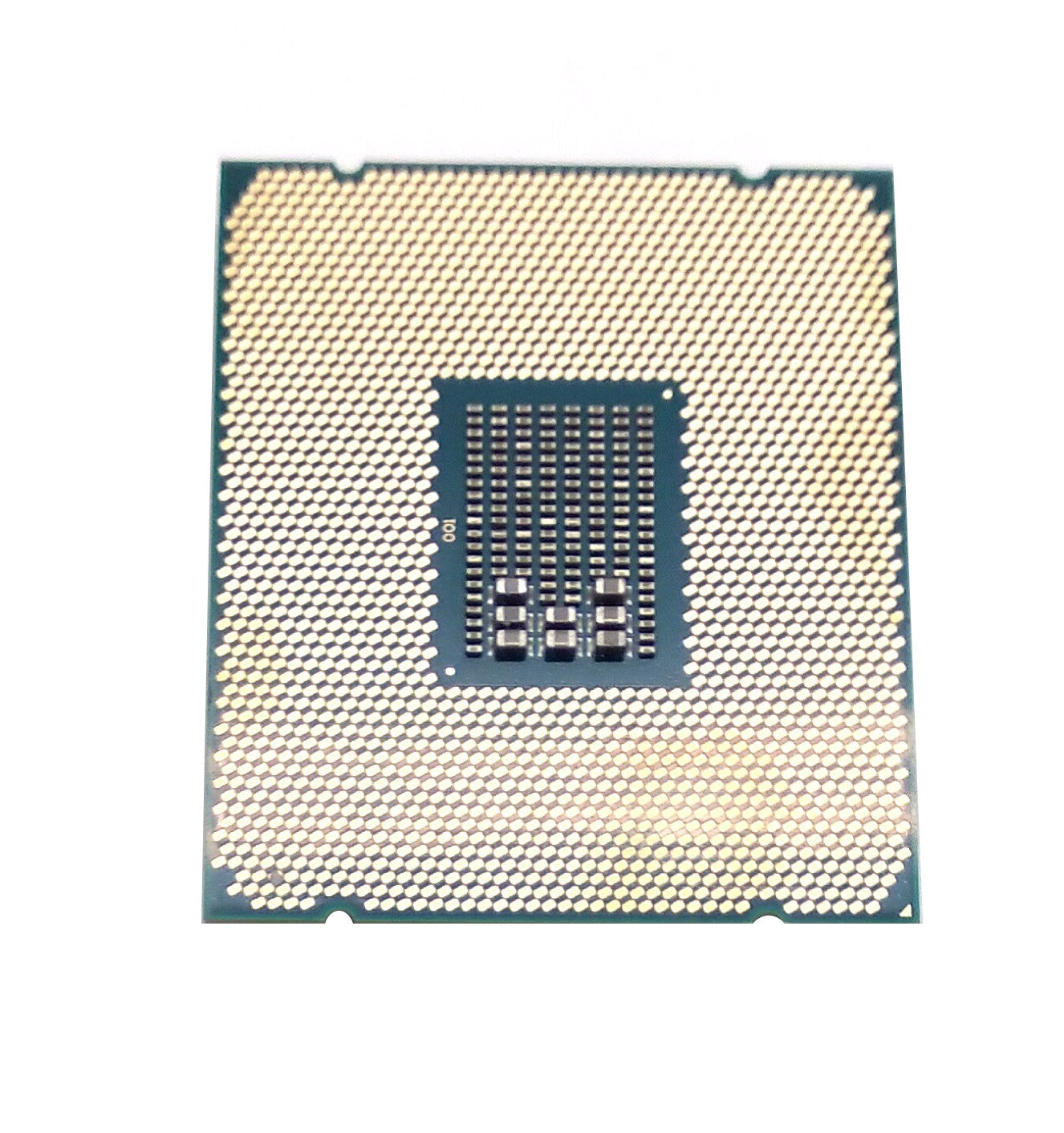

Intel Xeon CM8066002030908 E5-2690 Processor
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
The powerful new Intel Xeon processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers, providing efficient and high-performance solutions for both cloud-native and traditional applications. Built on 14 nm process technology, the Intel Xeon processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance. With Intel Transactional Synchronization Extensions (Intel TSX), these processors also provide improved parallel workload performance. Efficiently manage shared resources and increase resource utilization with Intel Resource Director Technology (Intel RDT). This technology offers cache monitoring and allocation, code and data prioritization, and memory bandwidth monitoring for improved orchestration. With accelerated cryptographic performance, the Intel Xeon processor E5-2600 v4 product family enables fast and secure data transfer over encrypted connections. Additionally, improved security keys help safeguard network access and provide enhanced platform protection for added peace of mind
| Model Number | CM8066002030908 |
| Product Name | Intel Xeon CM8066002030908 E5-2690 Processor |
| Product Type | Processor |
| Total Cores | 14 |
| Total Threads | 28 |
| Max Turbo Frequency | 3.50 GHz |
| Intel Turbo Boost Technology 2.0 Frequency | 3.50 GHz |
| Processor Base Frequency | 2.60 GHz |
| Cache | 35 MB Intel Smart Cache |
| Bus Speed | 9.6 GT/s |
| TDP | 135 W |
| Max Memory Size | 1.5 TB |
| Memory Types | DDR4 1600/1866/2133/2400 |
| Max # of Memory Channels | 4 |
| Max Memory Bandwidth | 76.8 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported | Yes |
| Scalability | 2S |
| PCI Express Revision | 3 |
| PCI Express Configurations | x4, x8, x16 |
| Max # of PCI Express Lanes | 40 |
| Sockets Supported | FCLGA2011 |
| Max CPU Configuration | 2 |
| TCASE | 89degC |
| Package Size | 45mm x 52.5mm |
| Intel Turbo Boost Technology | 2 |
| Intel Hyper-Threading Technology | Yes |
| Intel Transactional Synchronization Extensions | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology | No |
| Intel vPro Eligibility | Intel vPro Platform |
| Intel AES New Instructions | Yes |
| Intel Secure Key | Yes |
| Intel OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
