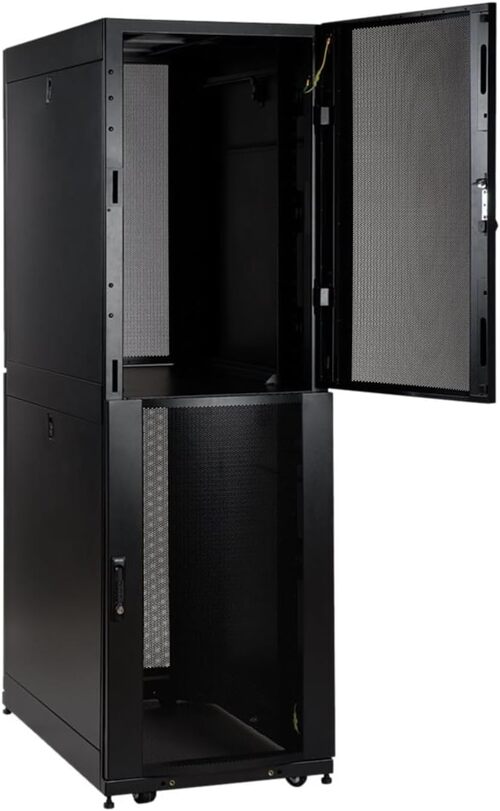

Tripp Lite SR42UBCL 42U Standard Depth Rack Enclosure Cabinet

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Tripp Lite SR42UBCL 42U Standard Depth Rack Enclosure Cabinet - Black - 3000 lbs. Capacity - 4 Mounting Rails - Front and Back Door Frames - 37 Inches Maximum Depth

Multi compartment enclosure allows two different users 20U spaces each all in the same footprint of a standard enclosure. Each compartment has their own front and rear access doors with combo locks as standard. There is a divider panel within the rack that separates the two compartments. This allows the facility manager to have access to each compartment, but each compartment has a unique combo code. All features from the standard SmartRacks carry over to these colo racks. In fact, they are all built off the same platform to allow cross usage of accessories. Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters. Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure). Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses. Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements. Maximum usable internal depth of 37 inches/94 cm (front to rear rail). Weight ratings of 3000 lb stationary and 2250 lb rolling. Front door is locking, reversible and removable. Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall. Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors. Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles. Casters are pre-installed and support a rolling load capacity of 2250 lbs, allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable. Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable. Compact design allows the enclosure to roll through standard height commercial doorways. Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires. Open bottom for cable access. Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first. Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack. Compatibility with airflow optimization accessories as well as cable management accessories.

Model Number	SR42UBCL
Product Name	Tripp Lite SR42UBCL 42U Standard Depth Rack Enclosure Cabinet
Product Type	Rack Cabinet
Color	Black
Rack Type	Enclosure
Rack Height	42U
Rack Depth	Standard
Factory Preset Rack Depth	27.75 Inches
Maximum Device Depth	37 Inches
Minimum Device Depth	4 Inches
Number of Vertical Mounting Rails	4
Grounding Details	Front and Back Door Frames
Built-in Cable Management	Yes
Pre-Installed Casters	Yes
Device Compatibility	Patch Panel; Network Switch; UPS; Server
Unit Dimensions	Height 78.500 x Width 23.630 x Depth 43.000 Inches
Weight Capacity - Rolling	2250 lbs.
Weight Capacity - Stationary	3500 lbs.
Unit Weight	305 lbs.
