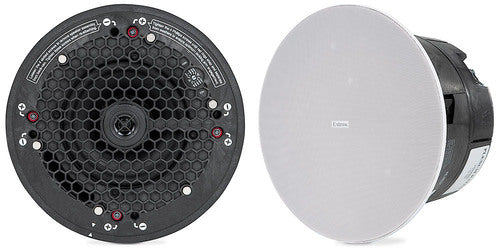

Extron 60-1310-03 SoundField XD SF 26CT Two-Way Ceiling Speaker - 6.5-inch - 2 Speakers - White

The Extron SoundField XD model SF 26CT is a 6.5-inch two-way ceiling speaker featuring an 8-inch (203 mm) deep composite back can for use in plenum rated ceiling environments. The driver complement includes a 6.5-inch (165 mm) woofer coupled to a 3/4-inch (19 mm) ferrofluid-cooled dome tweeter. The SF 26CT offers both direct 8 ohm and 70/100 volt operation with a behind-the-grille, six position power selector switch. With high impedance taps at 8, 16, 32, and 64 watts, the SF 26CT is ideal for applications that require a high power distributed speaker system. The SF 26CT provides a wider and smoother frequency range of 65 Hz to 22 kHz and is engineered with a 111-degree conical dispersion that ensures excellent on and off axis voice intelligibility. A power rating of 130 watts continuous program also gives this speaker plenty of headroom for music reproduction in moderate to high output systems. The SF 26CT represents a new paradigm in speaker technology for pro AV applications. Extron designed the SF 26CT from the ground up. With innovative materials, modular construction, and unique features, these new SoundField XD speakers provide significant savings and superior performance. The ideal speaker enclosure needs to be constructed in such a way as to avoid internal standing waves and resonances in the enclosure itself. It should also be lightweight and fire tested for use in plenum air-handling spaces. Extron was able to achieve all of these requirements by injection molding the enclosure with a fire resistant composite material. The result is a rigid, acoustically damped, lightweight, plenum rated enclosure that is UL 2043 listed. Shipped as a complete speaker assembly, the SF 26CT is ideal for both single-trade and division-of-labor installations. The SF 26CT speaker can be installed by a single contractor as a self-contained unit for retrofits and new construction. For larger projects with multiple trades, the driver assembly and back can be separated, allowing the rough-in contractor to install and fully terminate the back can. Once the job site is clean and secure, the AV integrator can then easily install the driver assembly and grille. The SF 26CT features a finely perforated round metal grille with a thin-edged rounded bezel for a refined appearance on the ceiling. The grille securely attaches magnetically to the baffle and quickly snaps into place. An optional square grille is available with the same finely perforated metal and thin-edged rounded bezel. This gives the owner, architect, or interior designer an additional choice for matching the decor. The grille assemblies are white and can be painted to match the architectural elements of the environment. The cable/conduit access plate is used to bring speaker cable into the enclosure, whether free-pulled or through flex conduit. The cable/conduit access plate has two punch-outs for 1/2 -inch conduit, flex or screw clamp fittings. Two punch-outs allow easy daisy chaining from speaker to speaker. The cable/conduit access plate can be oriented for side mount or for top mount. The side mount orientation allows cable/flex/conduit to enter into the side of the enclosure, without increasing the overall 8" depth of the speaker. The top mount orientation allows for blind-mounting into drywall ceilings, keeping all cable/flex/conduit connections on the top. The SF 26CT features exclusive Opti-Torque indicator rings that provide a visual indication when the locking arm screws have been sufficiently tightened, preventing damage to the speaker caused by overtightening. As the installation technician tightens the locking arms, the red Opti-Torque indicator ring will audibly snap when the proper torque has been applied. As a visual indicator, the red ring drops down onto the screwdriver shaft, signaling to the technician that the proper force has been applied. To facilitate installation in a T-bar ceiling, newly redesigned modular V-rail and foldable C-rings are included with the SF 26CT. The V-rails have been designed as a two-part assembly that can be snapped together in the field. The foldable C-rings have been designed to make them easier to maneuver into place, even in blind-mount drywall applications. The installer snakes the C-ring up through the speaker cut-out, unfolds it, and positions it as needed. The result is a continuous metal support around the entire cut-out, resulting in a more secure attachment to the ceiling.

Model Number	60-1310-03
Product Name	Extron 60-1310-03 SoundField XD SF 26CT Two-Way Ceiling Speaker
Product Type	Ceiling Speaker
Speaker Type	2-way Ceiling Speaker with Composite Back Can
Frequency Range	65Hz to 22 kHz, -10 dB, half space (per IEC 60268-5)
Frequency Response	88 Hz to 22 kHz, +/-3dB, Half Space
Power Capacity	65 W (rms) Continuous Pink Noise, 130 W (rms) Continuous Program
Rated Maximum Input Voltage (MIV)	22.4 V (62.6 W at 8 ohms) (per AES2-2012)
Maximum SPL	104 dB, 1 m (based on MIV), 106 dB, 1 m (linear)
Nominal Sensitivity	88 dB SPL, 1W, 1 m, half space
Nominal Impedance	8 ohms per speaker
Crossover Frequency	2.5 kHz
Nominal Coverage Angle	111 Degrees conical coverage (1 kHz to 4 kHz)
Woofer Driver	(1) 6.5-inch (165 mm) polypropylene cone with moisture resistant coating
Tweeter Drivers	(1) 0.75-inch (19.1 mm) PEI dome
Rotary Switch Taps	70 V: 64 W, 32 W, 16 W, 8 W, 8 ohms direct 100 V: null, 64 W, 32 W, 16 W, 8 ohms direct
Overload Protection	Full range over limiter with the 8 ohm direct input only, protecting the tweeter, woofer, and crossover
Input Connector	(1) 5 mm captive screw connector, 4 pole for 1 input and 1 loop-through
Package	2 Speakers (1 pair)
