JBL CONTROL-12C/T-BK 2-piece Compact Blind-mount Backcan Ceiling

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

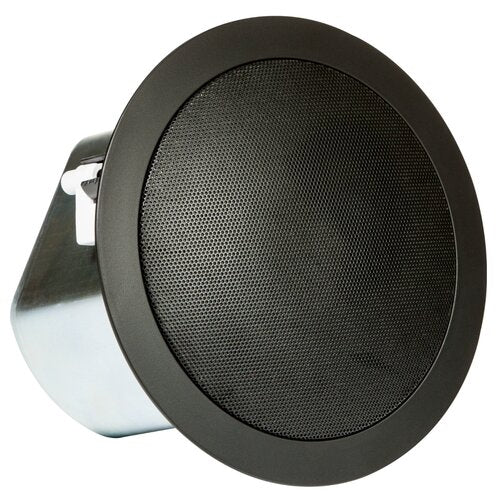

JBL CONTROL-12C/T-BK 2-piece Compact Blind-mount Backcan Ceiling Loudspeakers With 3 Inches Full Range Driver - Black - 68 Hertz - 17 Kilohertz Frequency - 40 Watts Program Power - 84 dB Nominal Sensitivity

Control 12C/T is a full-range ceiling speaker consisting of a 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount back can for quick and easy installation.

Model Number	CONTROL-12C/T-BK
Product Name	JBL CONTROL-12C/T-BK 2-piece Compact Blind-mount Backcan Ceiling Loudspeakers With 3 Inches Full Range Driver
Product Type	Ceiling Loudspeakers
Color	Black
Frequency Range (-10 dB)	68 Hertz - 17 Kilohertz
Power Capacity (Low?Z)	40 Watts Continuous Program Power; 20 Watts Continuous Pink Noise
Transformer Taps	15, 7.5, 3.8 Watts @ 70 and 100 Volts (& 1.9 Watts @ 70 Volts Only)
Frequency Response (3 dB)	95 Hertz - 15 kilohertz
Nominal Sensitivity	84 dB
Nominal Coverage Angle	130 Degree Conical Coverage
Directivity Factor (Q)	9.8
Directivity Index (DI)	7.4 dB
Rated Maximum SPL	97 dB @ 1 Meter Average, 103 dB Peak
Nominal Impedance	8 Ohms (Direct/Bypass 8 Ohms Setting)
Full?Range Driver	76 Millimeter (3 Inches) Polypropylene Cone, Butyl Rubber Surround, Kapton Voice Coil Former, High-temp Voice Coil, Aluminum Coupling Ring
Input Connectors	Removable Locking 4-pin Connector, Screw-down Terminals, Maximum Wire 12 AWG
Connector Wiring	Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs	For Two Cables or Two Flex Conduits via Clamping Mechanism
Materials	ABS Baffle (UL94-V0, UL94-5VB), Zinc-plated Steel Backcan
Ceiling Cutout Size	170 Millimeter (6.7 Inches) Circular Cutout
Ceiling Thickness Range	Up to 35 Millimeter (1.4 Inches); Optional Dog-ears For Up to 55 Millimeter (2.2 Inches)
Diameter	196 Millimeter (7.7 Inches)
Depth	138 Millimeter (5.4 Inches)
Weight	3.5 lbs.
