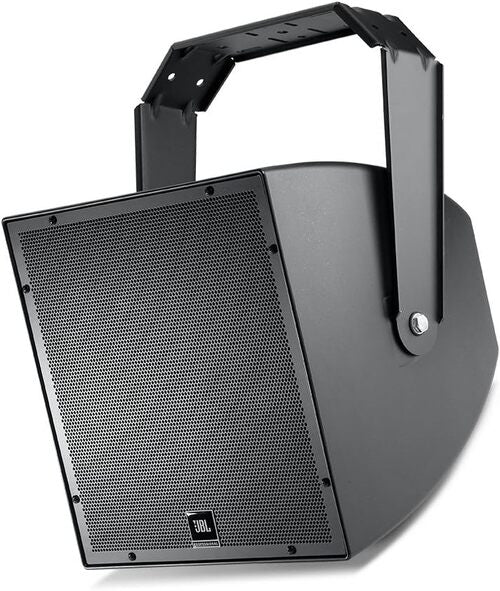

JBL AWC129-BK 12 Inches Single All-weather 2-way 400 Watts Passive

CONTACT US BEFORE ORDERING - NO RETURNS. Used-Acceptable products show significant signs of wear which can include scratches, dings and worn corners. The item can also have scratches/wear on the screen and dead pixels areas no larger than dime sized. The unit is fully functional, may come with generic accessories and may be missing some accessories that are not needed for the functionality of the product. These items are as-is with no-returns, but they do have a 30 day Tech For Less warranty to ensure functionality as indicated. Please contact us before ordering to get the details on the condition of this item.

JBL AWC129-BK 12 Inches Single All-weather 2-way 400 Watts Passive Coaxial Surface Mount Speaker - Black - 55 Hertz - 20 Kilohertz - 8 Ohms

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Model Number	AWC129-BK
Product Name	JBL AWC129-BK 12 Inches Single All-weather 2-way 400 Watts Passive Coaxial Surface Mount Speaker
Product Type	Speaker
Color	Black
Frequency Range (-10dB)	55 Hertz - 20 Kilohertz
Frequency Response (3 dB)	80 Hertz - 20 Kilohertz
Coverage Pattern	90 x 90 Degree
Directivity Factor (Q)	10.1 (1 k - 16 Kilohertz)
Directivity Index (DI)	9.5 dB (1k - 16 kHz)
System Power Rating	400 Watts (1600 Watts Peak), 2 Hours. / 250 Watts (1000 Watts Peak), 100 Hours
Sensitivity (2.83 Volts @ 1 Minute)	96 dB (Ave. 80 Hertz - 20 Kilohertz)
Maximum SPL (1m)	Direct 8 Ohms = 122 dB (Peaks of 128 dB) / 200 Watts Tap = 119 dB
Crossover Network	1.5 Kilohertz, 3rd Order (18 dB/oct) High-pass Plus Conjugate to HF, 2nd Order Low-pass to LF
Nominal Impedance	8 Ohms
Transformer Taps	70 Volts = 200, 100, 50, 25 Watts ; 100 Volts = 200, 100, 50 Watts
LF Driver	Kevlar-reinforced Cone with Weather Treatment, 75 Millimeter (3 Inches) Voice Coil
HF Driver	25 Millimeter (1 Inches) Diaphragm and Voice Coil Diameter, High Temperature Polymer Diaphragm, Patented Design, Fluid-cooling
HF Driver Protection	Minimum Audibility SonicGuard HF Overload Protection
Enclosure	ABS with Glass Enclosure, Heavily Braced
Attachment	Two M10 (Fine-thread) Points for Included U-bracket. M6 Secondary Safety Attachment Point on Back Panel
Grille	Corrosion-resistant Zinc-rich Extra-thick Powder Coated Steel Grille, 3-layer Assembly with Foam and Woven Poly Mesh Backing
Input Connection	CE-compliant Covered Barrier Strip Terminals. Accepts Up to 9 Millimeter Outside / 4 Millimeter Inside Open-lug (#6, #8 or #10) Plus Bare Wire Up to 2.5 Millimeter (12 AWG) or Spade Lugs. Terminal Compartment Cover with Gland Nut for Water-tight Seal (4.0 - 9.0 Millimeter Cable Diameters)
Dimensions	15.8 x 15.8 x 17.5 Inches, Cabinet 18.5 Inches Depth with Gland Nut, 21.4 Inches Including Bracket
Weight (Each)	35.0 lbs., 41.5 lbs. with U-bracket
