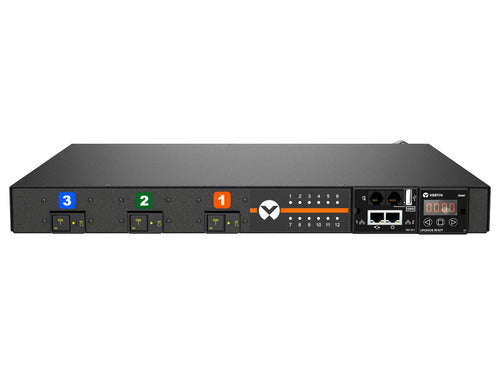

Vertiv NS30211 Geist rPDU Switched Unit Level Monitoring EC Power
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
| Model number | NS30211 |
| Product Name | Vertiv NS30211 Geist rPDU Switched Unit Level Monitoring EC Power Distribution Unit |
| Product Type | PDU |
| Color | Black (Powder Coat) |
| Monitoring | Input power monitoring with Outlet switching. Circuit/Breaker current monitoring. Daisy chain Ethernet connectivity. Local high visibility LED display. |
| Input Monitoring | Total Unit Monitoring (kWh, W, VA, PF); Phase (AB, BC, CA) Monitoring (kWh, W, VA, PF, V, A); Line (A, B, C) Monitoring (A) |
| Circuit Monitoring | Circuit / Breaker Monitoring (A) |
| Remote Power Management | Individual Outlet Switching with Optional User Defined Time Delays and Sequential Power-up |
| Quantity Of Inputs | 1 |
| Voltage | 200 to 240V Delta |
| Current | 35 Amperes x 3 Phase DELTA |
| VA per Input (Load Capacity) | 10.0 Kilowatts (208V) |
| Frequency | 50/60 Hertz |
| Over Current Protection | (3) 20 Amperes Double Pole Magnetic Breakers (10kAIC Rated) |
| Switch | Breaker/Switch Combination |
| Scrolling / Rotatable Digital Display | Yes |
| Indicators - LED(s) | 12 |
| Power Cable Wire Gauge | 4-Aug |
| Power Cable Length | 10 Feet |
| Power Entry Location | Left Rear |
| Plug Type | California Style 50A, 250V, 3P/4W Twistlock |
| Number of Receptacle/Socket on Rear | 12 |
| Quantity per Breaker and Phase Combination | 4 |
| Receptacle/Socket Circuit Color ID | 3 Circuit = Orange, Green, Blue |
| Receptacle/Socket Style | Banks of 6 |
| Voltage per Receptacle/Socket | 208V |
| Network Connection | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Data Access Formats | CSV Datalog, JSON API, JSON Datalog |
| USB Support | Yes |
| IP Reset Button | Yes |
| Hard Reboot Button | Yes |
| Serial Connection | RS232 via RJ45 |
| Remote Sensor RJ Connection Jacks | 1 (Supports up to 16 Sensors) |
| Maximum Operating Temperature | 60 Degrees Celsius |
| Configuration | 19 Inches Horizontal Rackmount |
| Adjustable Mount Brackets | Yes |
