Server Technology PRO2 Expansion PDU

Factory Sealed products are new, in original manufacturer packaging, and most carry a manufacturer warranty.

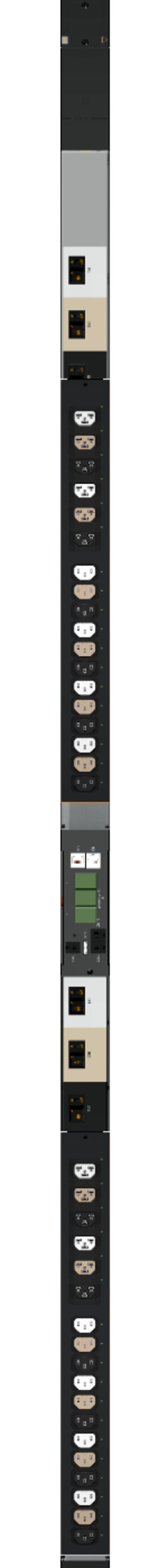

Server Technology C2XG36TE-DQME2966/C Switched POPS Expansion Pro2 PDU - 36x Configurable Alt Phase HDOT Outlets - 208v - 3-phase - 60a

The Server Technology PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS and POPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS Primary PDU can be connected to as many as three (with optional module) PRO2 Switched POPS Link PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Model Number	PRO2
Product Name	Server Technology PRO2 Expansion PDU
Product Type	PDU
HDOT Cx Outlets	Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
Hot-Swap Network Card	Network access is ensured when power is lost to the Primary unit with backup power provided by the Linked unit.
Temperature/Humidity Monitoring	Supports two external 10'' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
Auto-Flip Current Display	Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high density cabinets.
Per-Outlet Power Sensing	POPS (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.
Branch Circuit Protection	UL 489, CSA C22.2 No. 5 & IEC/EN60947-2 Compliant 2-pole, 20A trip circuit breakers, six (6) branch, rating: 16A, 10 kAIC Interrupt Rating
Alternating-Phase Outlets	Evenly distributes multiple phases of power to each outlet for simplified load balancing, reduced cord lengths, and better airflow.
High Temperature Rating	This product has been tested and approved for safe and reliable operation in 60 C data center environments.
Color-Coded Options	Select from six colors to designate PDU circuits in the data center black, white, red, green, blue, and yellow.
Network Monitoring	Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Star Multi-Linking	PRO2 provides the ability to link up to four power circuits using one IP address.
IP Access, Security & Communications	Web, SSH, Telnet, SNMPv2c & v3, RS-232 serial, 10/100 Base T-Ethernet, LDAP(S), TACACS+, RADIUS, DHCP, & SMTP/email.
Per-Inlet Power Sensing	PIPS (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
Branch Current Monitoring	Monitors current at each breaker branch and provides SNMP based alerts and emails on high usage that risks a tripped circuit.
Outlet Control	On Switched PDUs, cycle power to individual outlets or groups of outlets to reboot servers, or power off unused receptacles.
High Retention Locking Outlets	PRO2 receptacles have high retention and are compatible with P-Lock type power cords.
Flexible Mounting	Includes standard button mounts along with provisions for custom mounting brackets.
Input Voltage (V)	208
Frequency	50/60 Hz
Input Plug	208V Delta 60A IEC 60309 3P+G 9Hr
Input Current (A)	60
Input Current Rated (A)	48
Input Power Capacity (kW)	17.3
Connector	Rating
(24) x IEC 60320/C13 North American Rating	12A @208V L-L (15A Peak)
(12) x Cx North American Rating	16A @208V L-L (20A Peak)
Physical	Dimensions: 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm]
Environmental	Operating Environment: 32F to 140F / 0C to 60C
Communications & Security	10/100 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Certifications	North American:
Measurement Accuracy	Input Measurement Accuracy:
Output Measurement Accuracy	GUI Current = 1% at 0.01 amp resolution (above 0.15 amp)
Branch Measurement Accuracy	Current = 3% at 0.01 amp resolution (above 0.5 amp)
