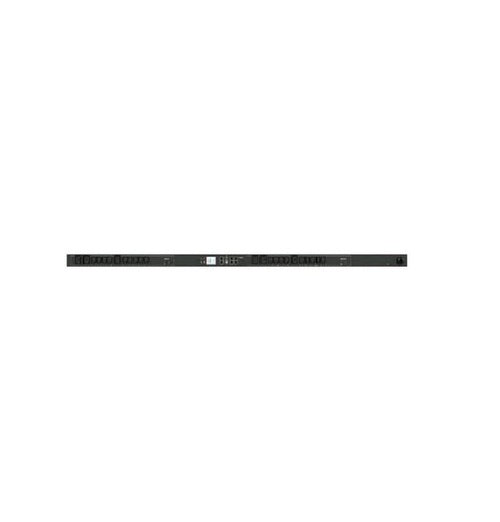

Vertiv Geist VP7N60AA 24-outlet Vertical Switched Rack-Mount Power

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Vertiv Geist VP7N60AA 24-outlet Vertical Switched Rack-Mount Power Distribution Unit - Black - C13/C19 - 30 Amps - 208 Volts Delta - 17.2 Kilo-watts - 70 Inches

The Vertiv Geist Switched Outlet Level Monitoring EC power distribution unit is designed to manage and distribute power in a rack-mounted form factor. With a power output of 17.2 kW and a maximum electric current of 60 A, it ensures stable and reliable performance for connected devices. Remote management capabilities through multiple protocols, including SNMP and SSH, allow for control and monitoring from various interfaces including Ethernet and USB. This unit includes a 3 m power cable and features such as overcurrent protection and an LED display for ongoing monitoring of power levels. It also comes equipped with a rack mounting kit and complies with safety standards including RoHS and UL/CUL 62368-1, making it a choice for managing power in any operation.

Model Number	VP7N60AA
Product Name	Vertiv Geist VP7N60AA 24-outlet Vertical Switched Rack-Mount Power Distribution Unit
Product Type	Rack-Mount Power Distribution Unit
Color	Black
Monitoring	Input And Outlet Power Monitoring With Outlet Switching. Circuit/Breaker Current Monitoring. Environmental Monitoring Via Optional Remote Sensors. Daisy Chain Ethernet Connectivity. Local High Visibility Display.
Input Monitoring	Total Unit Monitoring (kWh, W, VA, PF); Phase (AB, BC, CA) Monitoring (kWh, W, VA, PF, V, A); Line (A, B, C) Monitoring (A)
Power Measurement Compliance	Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements
Circuit Monitoring	Circuit / Breaker Monitoring (A)
Circuit/Breaker Accuracy	Circuit/Breaker Current Measurements Independently Tested and Verified at 1% Accuracy
Outlet Monitoring	Outlet Monitoring (kWh, W, VA, PF, V, A)
Remote Power Management	Individual Outlet Switching with Optional User Defined Time Delays and Sequential Power-up
Quantity of Inputs	1
Voltage	200-240 Volts Delta
Current	60 Amps x 3 Phase DELTA
VA per Input	17.2 Kilo-watts (208 Volts)
Frequency	50/60 Hertz
Over Current Protection	(6) 20 Amps Double Pole Magnetic Breakers (10kAIC Rated)
Switch	Breaker/Switch Combination
LCD Touchscreen	Yes
LED Indicators	24
Power Cable Wire Gauge	4/4
Power Cable Length	10 Feet / 3 Meter
Power Entry Location	Bottom Front
Plug Type	IEC60309 3P + E, 60A, Watertight IP67
Alternating Phase/Circuits	Yes
Receptacle Type	Combination C13/C19
Quantity on Face	24
Quantity per Breaker	4
Quantity per Phase	8
Circuit Color ID	Orange, Green, Blue, Light Orange, Light Green, Light Blue
Style	Banks of 6
Voltage per Receptacle	208 Volts
Network Connection	Dual 10/100/1000Mbps Ethernet
Protocols Supported	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
Data Access Formats	CSV datalog, JSON API, JSON datalog
USB Support	Yes
IP Reset Button	Yes
Hard Reboot Button	Yes
Serial Connection	RS232 via RJ45
Remote Sensor Jacks	1 (Supports up to 16 Sensors)
Configuration	Zero U
Toolless Mounting Spacing	61.25 and 64.75 Inches
Certifications	UL & c-UL Listed 62368-1, RoHS Compliant, FCC Part 15 Class A Conformance
Chassis Dimensions	70 x 2 x 2.6 Inches
