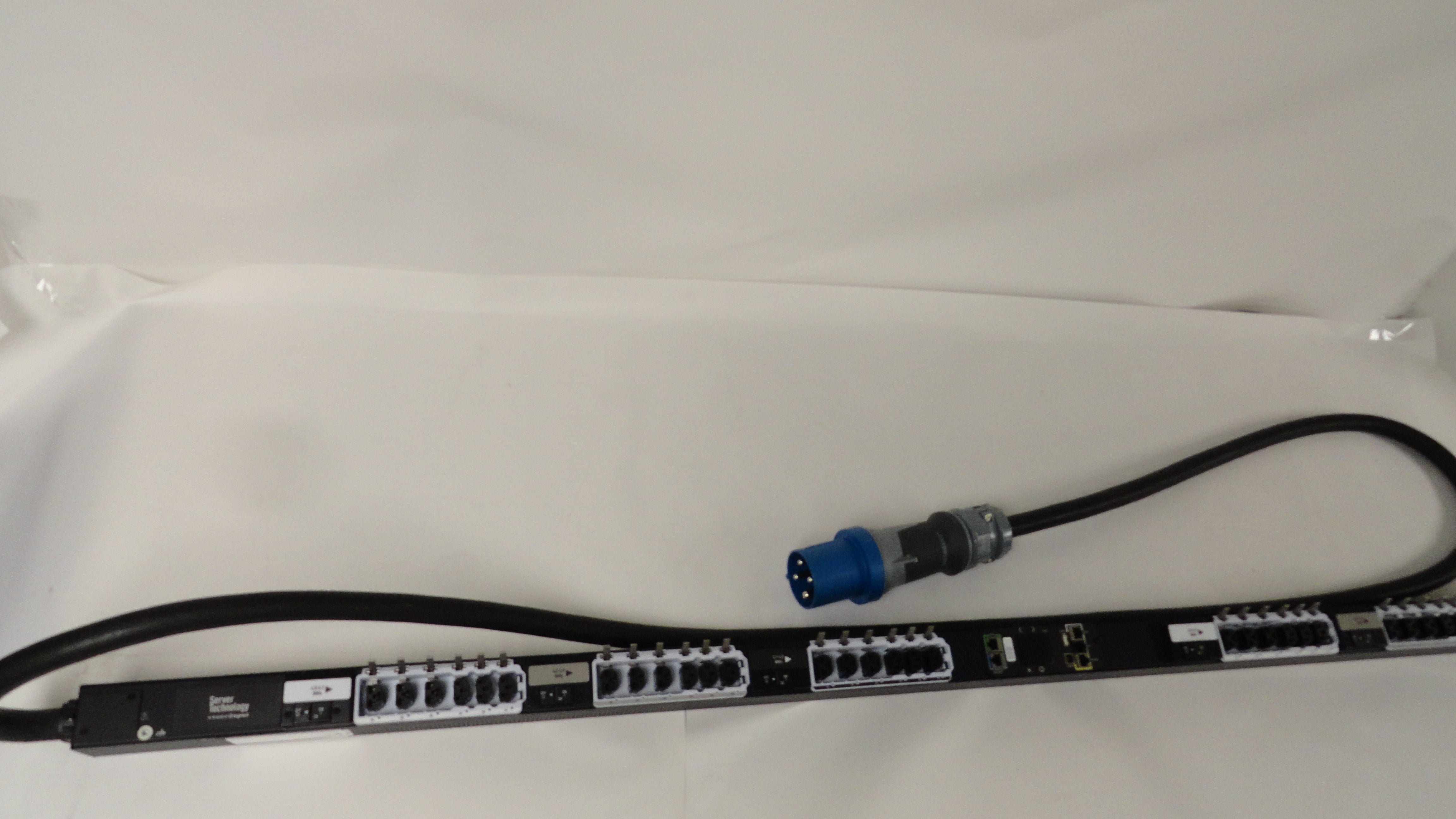

Server Technology PRO3X C3W36RL-DQJE2MT2 36 Outlets Power Distribution

Open Box products are in original manufacturer condition, include accessories, and most carry the manufacturer warranty. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Server Technology PRO3X C3W36RL-DQJE2MT2 36 Outlets Power Distribution Unit - Switched - IEC 60309 3P+G 9Hr 60 Amps - 18 x IEC 60320 C13, 18 x CX - 230 Volts AC - Branch Circuit, Circuit Protection, Fuse - Network (RJ-45) - 0U - Button Mount

This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with the Xerus Technology Platform's state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control and supports Legrand plug-and-play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

Model Number	C3W36RLDQJE2MT2
Product Name	Server Technology PRO3X C3W36RL-DQJE2MT2 36 Outlets Power Distribution Unit
Product Type	Power Distribution Unit
PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+G 9Hr 60A
Receptacle Type	IEC 60320 C13, CX
Receptacle Detail	18 x IEC 60320 C13, 18 x CX
Protection Type	Double Pole, Circuit Protection, Overload Protection
Input Voltage	208 - 230 Volts AC
Power Rating	17.3 kilowatts
Input Current	60 Amps
Communications & Security	Dual Ethernet, Two (2) 10/100/1000 Mbps (Cat5e/6 connector), Optional WiFi (802.11 a/b/g/n), One (1) Sensor port (RJ45), One (1) Aux port (6P6C), One (1) Console/Modem port (RJ45), One (1) USB-A and One (1) USB-B, Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
Network (RJ-45)	Yes
Mount Type	Rack-mountable
Rack Height	0U
Branch Circuit Protection	UL489 Compliant 2-pole, 20A trip circuit breakers, six (6) branch, rating: [?] 16A, 10 kAIC Interrupt Rating
Input Current Rated	48 Amps
Quiescent / Unloaded Power Draw	< 10 Watts for all configurations
Certifications	Safety (Listed & Certified, cTUVus mark), UL 62368-1, CSA C22.2 No. 62368-1, EMC, FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A, CAN ICES-003, Class A
Input Measurement Accuracy	LED Current = +- 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution, GUI Current = +- 1% at 0.01 amp resolution (above 0.5 amp), Voltage = +- 1% at 0.1 volt resolution (nominal +- 10%), Active Power = +- 1% at 1 watt resolution, Apparent Power = +- 1% at 1 volt-amp resolution, Power Factor = +- 3% at 0.01 resolution, Crest Factor = +- 10% at 0.1 resolution, Energy = +- 1% at 0.1 kilowatt-hour resolution
Button Mounts	Yes
Emergency Power Off	LCD display
Dimensions	Height 70 x Depth 2.5 x Width 2.2 Inches
