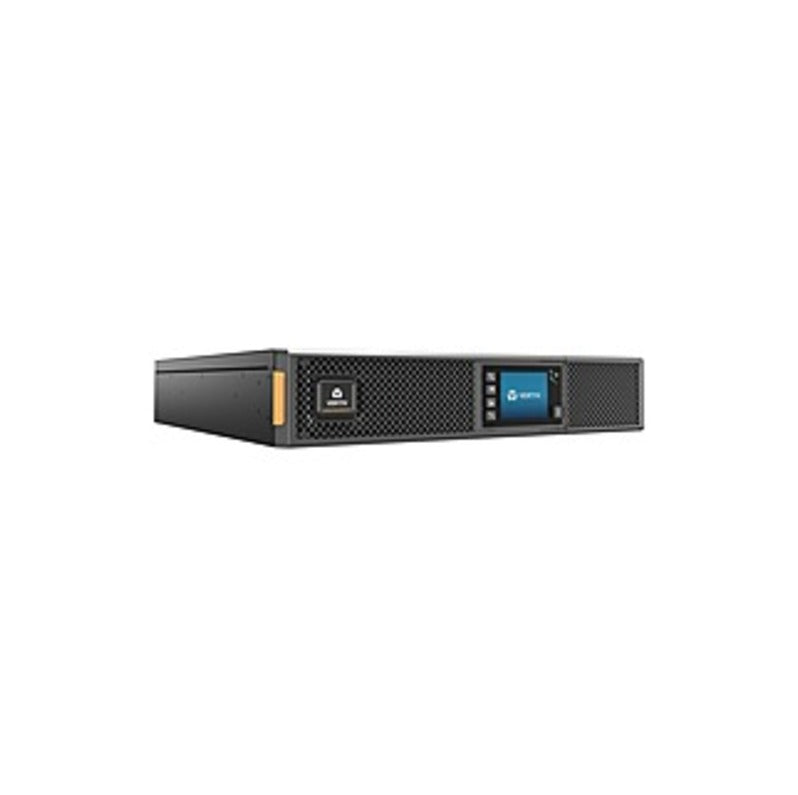

Liebert GXT5 GXT Dual Conversion Online UPS

Refurbished products have been restored to meet manufacturer quality standards, may show limited signs of use and cosmetic blemishes. They may carry a manufacturer warranty and may be missing some accessories that are not needed for the functionality of the product. Manuals and software might not be included, but can usually be downloaded from the manufacturer. These items can be in the original manufacturer box or repackaged for protection during shipping.

Vertiv Liebert GXT5 UPS - 3000VA/2700W 120V | Online Rack Tower Energy Star - Double Conversion | 2U | Optional RDU101 Card| Color/Graphic LCD|

The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments.The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.

Model Number	GXT5-3000LVRT2UXL
Product Series	GXT5
Product Name	Liebert GXT5 GXT Dual Conversion Online UPS
Product Type	Dual Conversion Online UPS
Plug/Connector Type	NEMA L5-30P
Receptacles	1 x NEMA L5-30R
Emergency Power OFF	Yes
Cord Length	10 ft
Transfer Time	0 ns
Phase	Single Phase
Application/Usage	Mission Critical Equipment
Load Capacity	3000 VA/2700 W
Input Voltage	120 V AC
Input Voltage Range	60 V AC - 150 V AC
Output Voltage	120 V AC
Input Current	24 A
Output Current	25 A
Input Frequency	40 Hz to 70 Hz
Waveform Type	Sine Wave
Circuit Breaker	Yes
User Selectable Output	Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); 3%
Utility (AC) Mode Overload	>200% for 250ms 150- 200% for 2 seconds 125- 150% for 10 seconds 105-125% for 15 seconds
Status Indicators	Color LCD
Serial Port	Yes
VGA	No
Modem (RJ-11)	No
EPO Port	Yes
USB (HID Compliant) Port	Yes
Number of Batteries	3
Battery Characteristics	Valve-regulated, Non-spillable
Battery Chemistry	Lead Acid
Battery Size	12V
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	9 Minute
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	17 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	43.50 Minute
Battery Life	5 Year
Typical Battery Recharge Time	3 Hour
Hot Pluggable	Yes
Hot Swappable	Yes
Environmental Sensors	Humidity Sensor
Maximum Operating Temperature	104F (40C)
Storage Temperature	-4F (-20C) - 140F (60C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49212.60 ft
Color	Black
Height	3.4"
Width	16.9"
Depth	21.3"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	66 lb
Additional Information	Operating Temperature,F (C):+32 to +104 (0 to 40) Storage Temperature,F (C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40C. Relative Humidity:0% to 95%, non-condensing Audible Noise: <48dBA max @ 3 ft. (1m) front and sides <48dBA, at 3 ft. (1m) rear
Certifications & Standards	UL1778, 4th Ed. FCC Part 15 Class A ANSI C62.41 Cat. B ISTA 1A
Assembly Required	No
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	WEEE
Country of Origin	China
TAA Compliant	No
