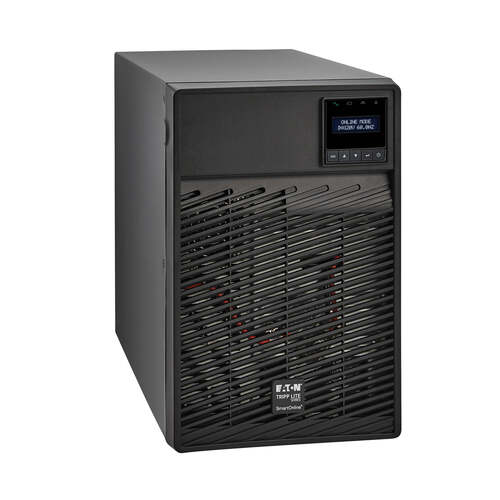

Eaton SU2200XLCD Tripp Lite Series Smartonline Double-conversion UPS
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline SU2200XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential. The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP96V, sold separately). The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. One L5-20R and six 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets and the L5-20R are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment. Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge. Place the SU2200XLCD on a table, shelf, pedestal or floor in your data center, computer room, network closet, workbench, dispatch console, security workstation or other professional work surface. The eight-foot input cord with NEMA 5-20P plug connects to a compatible AC outlet.
| Model Number | SU2200XLCD |
| Product Name | Eaton SU2200XLCD Tripp Lite Series Smartonline Double-conversion UPS |
| Product Type | Double-conversion UPS |
| Input Phase | Single-Phase |
| Rated input current (Maximum Load) | 16 Amper |
| Nominal Input Voltage(s) Supported | 100 Voltage AC; 110 Voltage AC; 120 Voltage AC; 127 Voltage AC |
| Nominal Input Voltage Description | 120 Voltage factory default |
| UPS Input Connection Type | 5-20P |
| UPS Input Cord Length (ft.) | 8 |
| Recommended Electrical Service | 120 Voltage |
| Maximum Input Amps | 16 Amper |
| Input Plug Type | NEMA 5-20P |
| Input Cord Length (ft.) | 8 Feet |
| Power Factor (Input) | 0.99 |
| Output Capacity (VA) | 1960 |
| Output Capacity (kVA) | 1.96 |
| Output Capacity (Watts) | 1770 |
| Output Capacity (kW) | 1.77 |
| Power Factor | 0.9 |
| Crest Factor | 3:1 |
| Nominal Voltage Details | 120 Voltage default |
| Frequency Compatibility | 50 / 60 Hertz |
| Frequency Compatibility Details | Online Mode: Sync with line +-5% of nominal line frequency (outside this range: +-0.5% of auto-selected nominal frequency). Battery Mode: +-0.5% of auto-selected nominal frequency |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Output Voltage Regulation (Economy Line Mode) | +/- 2% |
| Output Voltage Regulation (Battery Mode) | +/- 3% |
| Load Management Receptacles | Two switchable load banks: (1) Two-outlet and (1) Three-outlet |
| Output AC Waveform (AC Mode) | Pure Sine wave |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Nominal Output Voltage(s) Supported | 100 Voltage; 110 Voltage; 120 Voltage |
| Output Receptacles | (6) 5-20R; (1) L5-20R |
| Individually Controllable Load Banks | Yes |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Runtime Full Load (min.) | 10.4 min. (1770Watts) |
| Runtime Half Load (min.) | 26.2 min. (885Watts) |
| Expandable Runtime | Yes |
| External Battery Pack Compatibility | BP96V |
| DC System Voltage (VDC) | 96 |
| Battery Access | Battery access door |
| Battery Replacement Description | User Replaceable Batteries |
| Voltage Regulation Description | Online, Double-Conversion Power Conditioning |
| EMI / RFI AC Noise Suppression | Yes |
| AC Suppression Joule Rating | 190 |
| AC Suppression Response Time | Instantaneous |
| Primary Form Factor | Tower |
| Cooling Method | Fan |
| Installation Form Factors Supported with Included Accessories | Tower |
| UPS Housing Material | Metal |
| Network Management Card Description | Network management card optional |
| Communications Interface | (1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB |
| Emergency Power Off (EPO)/Remote On-Off (ROO) | Yes |
| Transfer Time | 0 Millisecond |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| High Availability UPS Features | Expandable battery backup; On-Line/Double-Conversion; Pure sine wave output; Remote management; Surge/noise protection; Zero transfer time |
| Green Energy-Saving Features | High efficiency economy mode operation; Individually controllable load banks |
| UPS Applications | Mission Critical Applications |
| Product Certifications | CAN/CSA-C22.2 No. 107.3 (Canada); UL 1778; NOM (Mexico); cTUVus |
| Product Compliance | CE (Europe); FCC (USA); REACH; RoHS |
| Dimensions | height 13.630 x width 8.430 x depth 16.230 inches |
| Weight | 73.42 lbs. |
