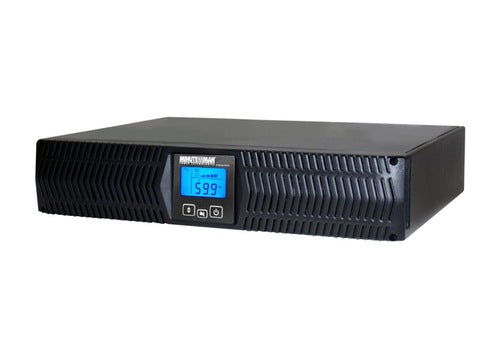

Minuteman ED1500RTXL2UNC Endeavor LCD Online UPS
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Offering New, Open Box & Refurbs at 10-50% Off Retail
Helping you save money since 2001
Product Condition
Product Condition
Product Details
Product Details
In today's 24/7, "always on" business world, downtime is a not an option. Minuteman's Endeavor LCD series products are engineered to provide the excellent features, that demanding users require for supporting critical applications, while also offering unmatched reliability in a true on-line UPS. This premium-level product provides a sinewave output. The Endeavor LCD series delivers continuous power conditioning through Minuteman's double conversion on-line technology, providing emergency backup power with zero transfer time. For extended runtime applications, these products allow the connection of optional external battery packs for long backup times, required in certain applications, along with being generator-friendly. The Endeavor LCD series is designed to protect servers, data storage, switches, and routers used in data centers or network closets, DAS and small cell systems, light industrial applications, telecom and VoIP systems, plus security systems. Offering premium protection, that meets critical application needs, users can confidently rely on Minuteman's Endeavor LCD series to provide complete power protection, when reliability really matters.
| Model Number | ED1500RTXL2UNC |
| Product Name | Minuteman ED1500RTXL2UNC Endeavor LCD Online UPS |
| Product Type | UPS |
| Color | Black |
| Remote Management | SNMP |
| Remote Management Interface | Ethernet, RS-232, USB |
| Input Connectors | 1 |
| Interface Provided | 1 x EPO (emergency power off), 1 x management (Ethernet) - RJ-45, 1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) |
| Battery Technology | Lead acid |
| Dataline Surge Protection | Network - RJ-45 |
| Emergency Power Off | Cold-start function, Hot-swappable batteries, Internal bypass, LCD display |
| Frequency Provided | 50/60 hertz |
| Frequency Provided Margin | 6Hertz |
| Input Connector Type | Power NEMA 5-20P |
| Input Voltage Range | AC 0 - 160 Voltage |
| Lead Acid Battery Features | Maintenance free, Sealed |
| Load Type | At full load |
| Max Run Time | 12 min at half load, 4 min at full load |
| Output Connector Quantity | 9 |
| Output Connector Type | Power NEMA 5-15/20R, Power NEMA L5-20 |
| Power Capacity | 1500 volt ampere per kilogram |
| Power Factor (PF) | 1 |
| Power Factor Correction | Power Factor Correction (PFC) |
| Power Output Connectors Details | 1 x power NEMA L5-20, 5 x power NEMA 5-15/20R |
| Power Provided | 1350 watts |
| Provided Voltage | AC 110/120 voltage |
| UPS Technology | On-line |
| Voltage Provided Margin | 2% |
| Waveform Type | Sine Wave |
| Battery Run Time (Up To) | 3 minute (time unit) |
| Efficiency | 90% at 100% Load, 97% Eco mode |
| Form Factor (Power Device) | Rack-mountable / external |
| Energy Star | Yes |
| Compliant | CSA C22.2 No. 107.3, cTUVus, Directive 2011/65/EU, FCC Class A certified, FCC Class B certified, RoHS, RoHS 2, UL 1778 5th edition |
