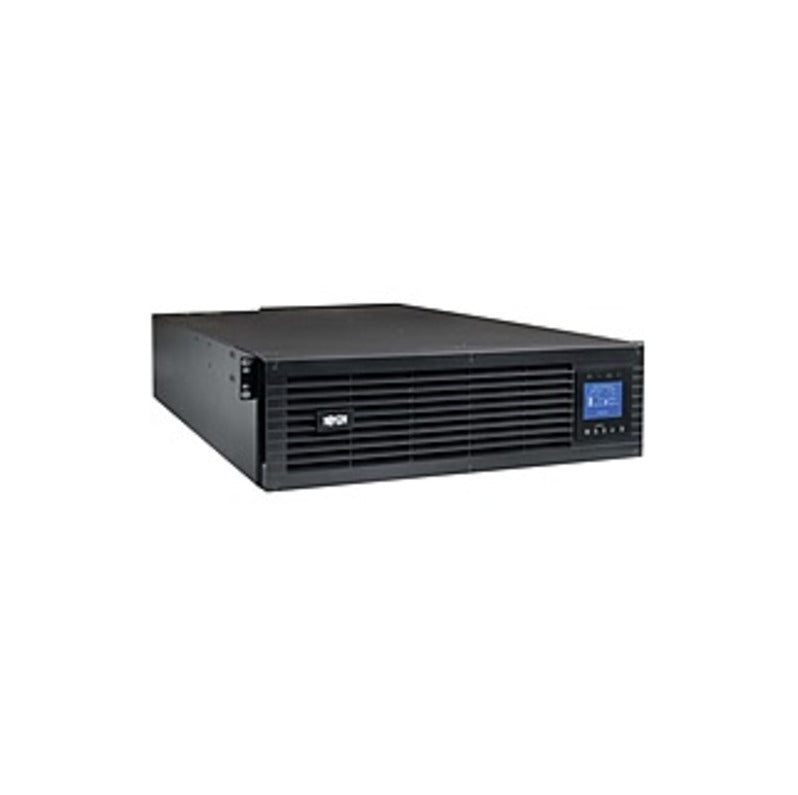

Tripp Lite SmartOnline SU5KRT3UHV Double Conversion Online UPS

CONTACT US BEFORE ORDERING - NO RETURNS. Used-Acceptable products show significant signs of wear which can include scratches, dings and worn corners. The item can also have scratches/wear on the screen and dead pixels areas no larger than dime sized. The unit is fully functional, may come with generic accessories and may be missing some accessories that are not needed for the functionality of the product. These items are as-is with no-returns, but they do have a 30 day Tech For Less warranty to ensure functionality as indicated. Please contact us before ordering to get the details on the condition of this item.

Tripp Lite UPS Smart Online 5kVA 5kW 208/240V Unity Power Factor Hardwire/L6-30P 3URM - 3U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R

Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss

Tripp Lite's SU5KRT3UHV Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 5000VA / 5000W output capacity when used with hardwire 208/240V input power (output de-rates to 4800W at 208V with included L6-30P cord option). In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SmartOnline SU5KRT3UHV provides the highest level of UPS power protection for critical server, network and telecom equipment.

Reliable, Expandable Battery Backup

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 14 minutes of support at half load and 5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 5kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries.

Economy Mode Helps the Environment and Your Cash Flow

Operates with full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs.

Intuitive Front-Panel Interface offers Convenient Monitoring

Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration.

Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access

Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite's free downloadable PowerAlert software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems.

Versatile Installation Options

Model Number	SU5KRT3UHV
Product Line	SmartOnline
Product Name	Tripp Lite SmartOnline SU5KRT3UHV Double Conversion Online UPS
Product Type	Double Conversion Online UPS
Plug/Connector Type	NEMA L6-30P
Receptacle Type	Hardwired
Receptacle Detail	2 x NEMA L6-20R
Overload Protection	Yes
Transfer Time	0 ns
EMI/RFI Noise Filter	Yes
Phase	Single Phase
Application/Usage	Computer Room
Load Capacity	5000 VA/5000 W
Input Voltage	230 V AC
Output Voltage	240 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Pure Sine Wave
Surge Energy Rating	1680 J
Network Management	SNMP/Telnet/SSH
Alarm	UPS Power Condition
Status Indicators	Front Panel LCD Display: Selectable LCD display With Escape Page Up Page Down Enter and Power buttons enable UPS control Detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual) 4 front-panel LEDs: AC input AC output Battery mode Fault conditions
Serial Port	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes
DC System Voltage	192 V DC
Battery Characteristics	Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	14 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes
Maximum Operating Temperature	104F (40C)
Storage Temperature	5F (-15C) - 122F (50C)
Maximum Operating Elevation	6562 ft
Sound Emission	67 dB
Thermal Dissipation	307.72 W
Height	5.2"
Width	17.5"
Depth	30"
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	117.51 lb
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	Taiwan
TAA Compliant	Yes
